Name: Emko ESM-1510-N.5.10.0.1/00.00/2.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 5 A relay (L x W x H) 62 x 35 x
Brand: Emko
SKU: 2352409
Availability: BackOrder

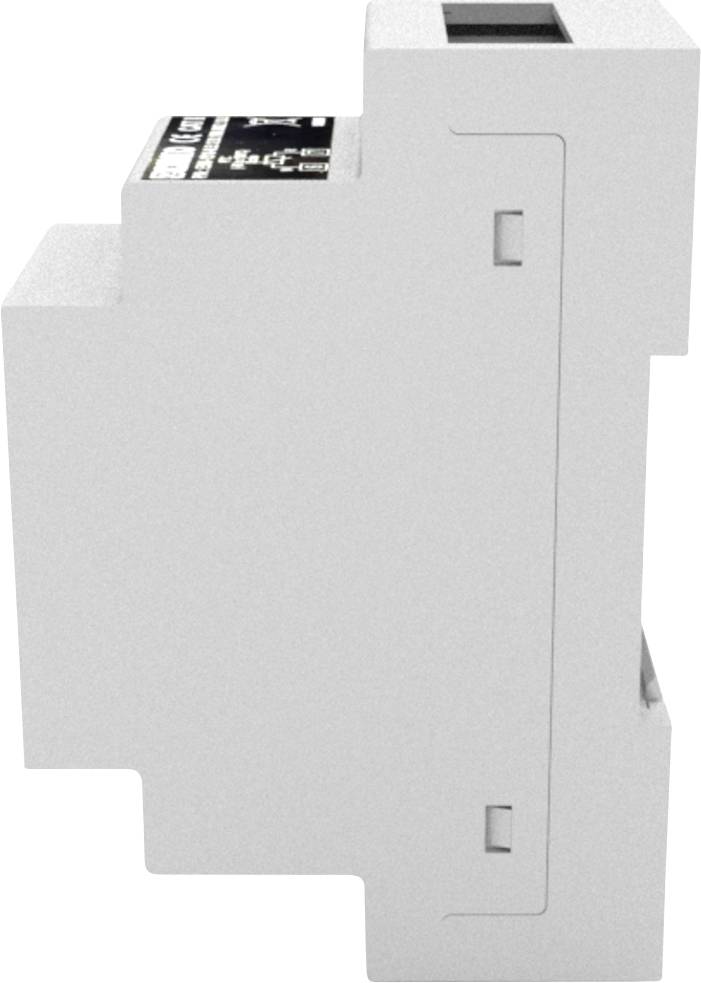

Side view of a white, rectangular electronic device with connections and switches on the top surface.

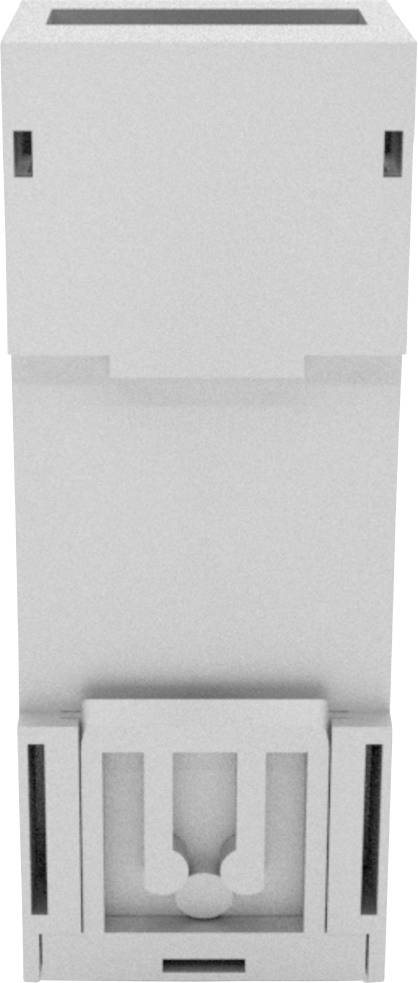

A rectangular, light-coloured device consisting of two segments. The upper part is broader, the lower part narrower with suggested details.

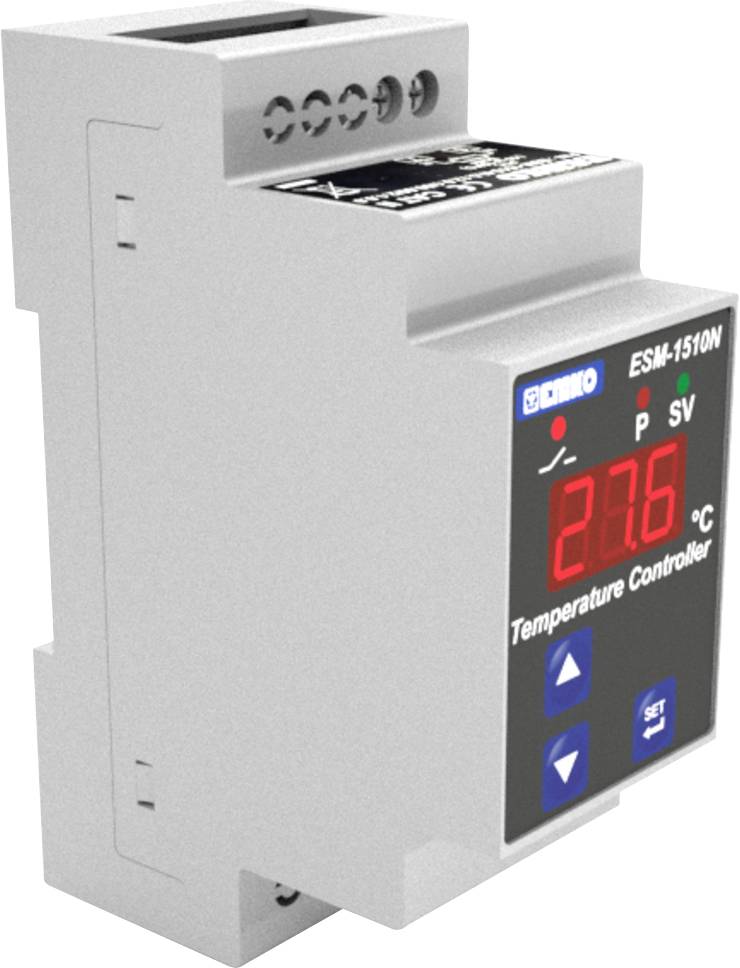

Temperature controller ESM-1510N with digital display shows 27.6 °C. Compact, grey housing suitable for DIN rail mounting.

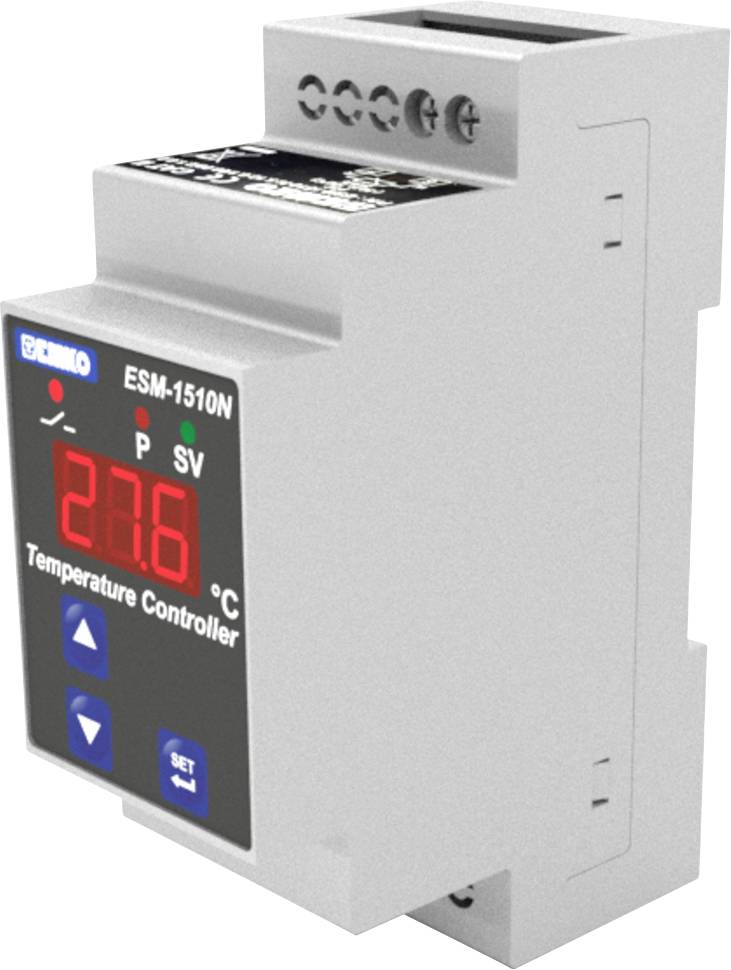

Temperature controller mounted in the housing, displaying large digital readout with measurement values. Control buttons are visible underneath.

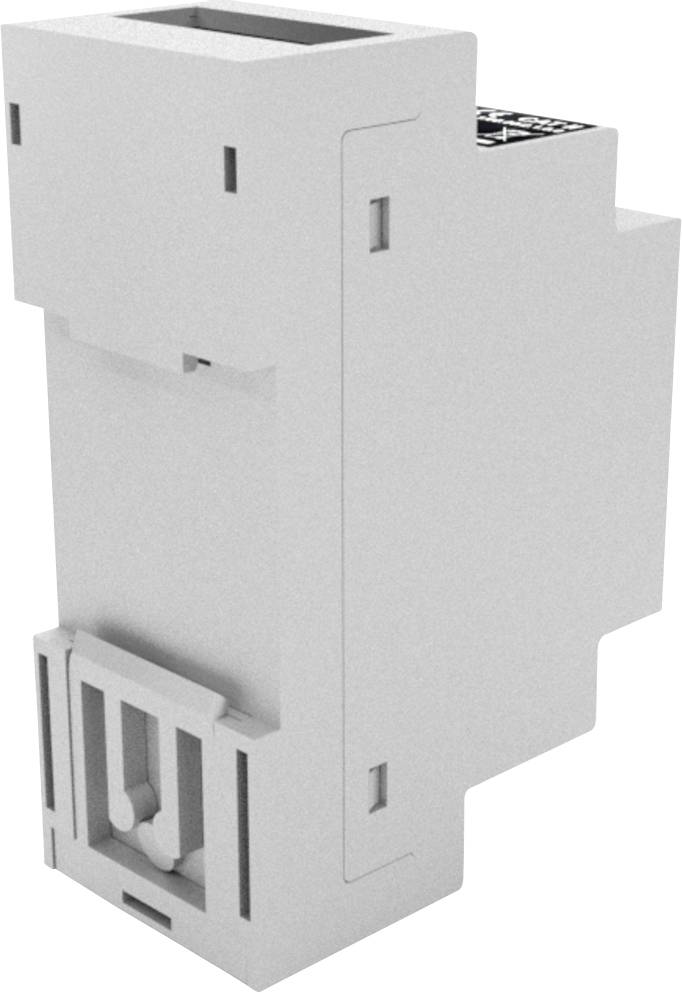

Housing for an electronic device that can be mounted on a DIN rail. Bright, boxy design without visible labelling.

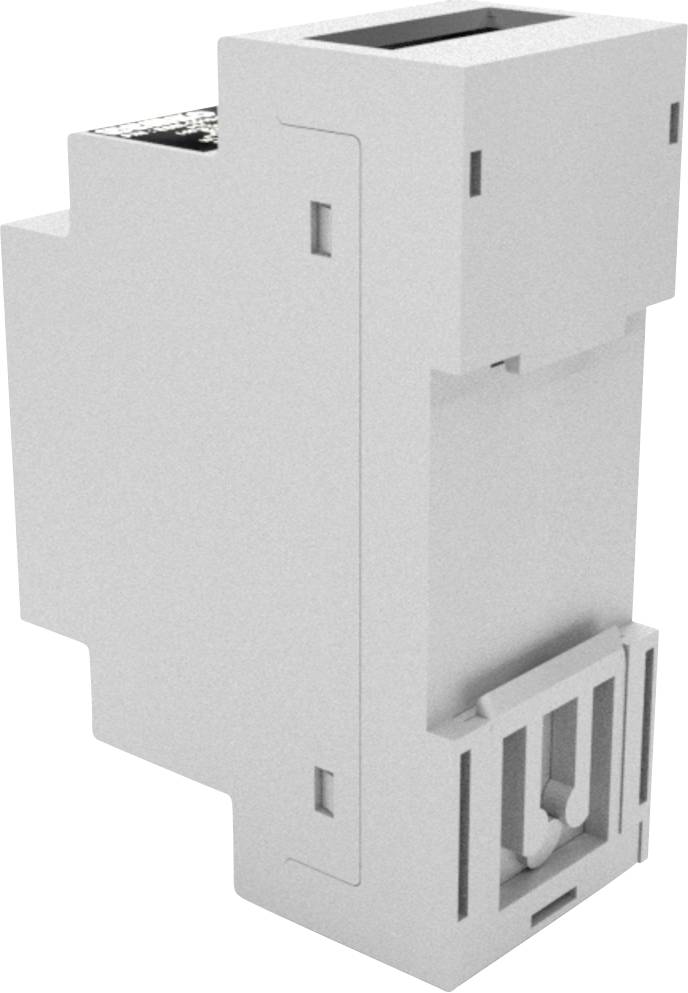

'Industrial enclosure for DIN rail, rectangular and grey, with ventilation cutouts and plug system at the bottom.'

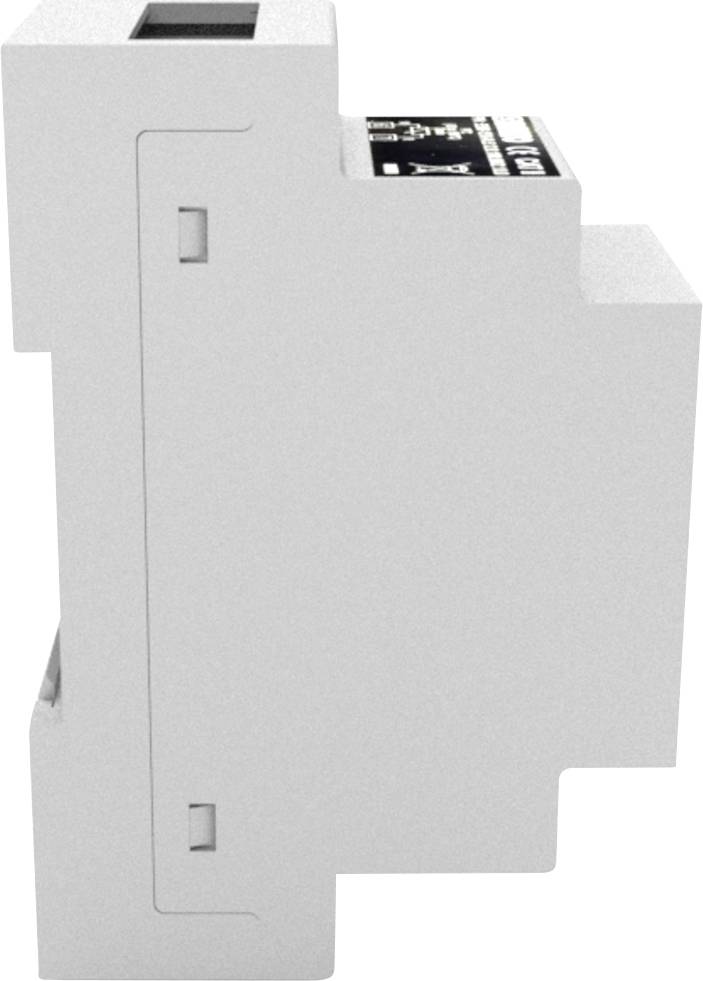

Compact, rectangular electrical device with side mounting clips, neutral colour, potentially designed for panel mounting.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang

Operating voltage

230 V AC

Max. temperature reading

999 °C

Outputs (thermostats)

5 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-1510-N.5.10.0.1/00.00/2.0.0.0 Bang-bang Temperature controller

3-digit display
2-point temperature control
Heating or cooling function can be selected
Hysteresis
Adjustable temperature offset values
Adjustable minimum and maximum setpoints
Function can be set to on, off or cyclic in the event of a sensor failure
Compressor protection through adjustable pause times
Password protection for program settings

Technical specifications

Product type: Temperature controller

Type: ESM-1510-N.5.10.0.1/00.00/2.0.0.0

Thermostat type: Bang-bang

Operating voltage: 230 V AC

Reading range: 0 up to 999 °C

Max. temperature reading: 999 °C

Min. temperature reading: 0 °C

Outputs (thermostats): 5 A relay

No. of relay outputs: 1

Dim: (L x W x H) 62 x 35 x 90 mm

Factory colour: White

Height: 90 mm

Length: 62 mm

Width: 35 mm

: IP20

Sensor type: K

Manufacturer part #: ESM-1510-N.5.10.0.1/00.00/2.0.0.0

Mounting type: DIN rail

Sensor type: K

Weight: 140 g

Variants(All information include VAT, plus shipping costs)

Max. temperature reading

Operating voltage

Sensor type

Emko ESM-1510-N.5.10.0.1/00.00/2.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:2352409

Available soon

Conrad Electronic

This article

999 °C

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-1510-N Bang-bang Temperature controller Pt100 -50 up to 400 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:2102719

Fast track dispatch on Thu 29 Oct

15 Piece(s)Conrad Electronic

400 °C

10 V DC

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

Emko ESM-1510-N.2.10.0.1/00.00/2.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:2352408

Available soon

Conrad Electronic

999 °C

24 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-1510-N.2.11.0.1/00.00/2.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:2352406

Fast track dispatch on Thu 29 Oct

10 Piece(s)Conrad Electronic

400 °C

24 V

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

Emko ESM-1510-N.5.05.0.1/00.00/2.0.0.0 Bang-bang Temperature controller J 0 up to 800 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:1273962

Available soon

Conrad Electronic

800 °C

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-1510-N.5.11.0.1/00.00/2.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:1273963

Fast track dispatch on Thu 29 Oct

28 Piece(s)Conrad Electronic

400 °C

230 V AC

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

Emko ESM-1510-N.5.12.0.1/00.00/2.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:2352405

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

130 °C

230 V AC

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

Emko ESM-1510-N.5.12.0.1/00.00/2.1.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:1273964

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

130 °C

230 V AC

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Emko ESM-1510-N.5.14.0.1/00.00/2.0.0.0 Bang-bang Temperature controller Pt1000 -50 up to 400 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:2352404

Fast track dispatch on Thu 29 Oct

20 Piece(s)Conrad Electronic

400 °C

230 V AC

Pt1000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 73.99^*

Emko ESM-1510-N.5.18.0.1/00.00/2.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 5 A relay (L x W x H) 62 x 35 x 90 mm

Item no:2352402

Fast track dispatch on Thu 29 Oct

19 Piece(s)Conrad Electronic

100 °C

230 V AC

NTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 69.99^*

Documents & Downloads

Datasheet

Datasheet 2352409 Emko ESM-1510-N.5.10.0.1/00.00/2.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 5 A relay (L x W x H) 62 x 35 x

User & Safety Instructions

User & Safety Instructions 2352409 Emko ESM-1510-N.5.10.0.1/00.00/2.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 5 A relay (L x W x H) 62 x 35 x

Description

Emko ESM-1510-N is a 2-point temperature controller for DIN rail mounting. With adjustable temperature setpoint, the controller is used for heating or cooling applications.
