Buy Emko ESM-3723.2.5.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller 5 A relay (L x W x H) 65 x 76 x 35 mm

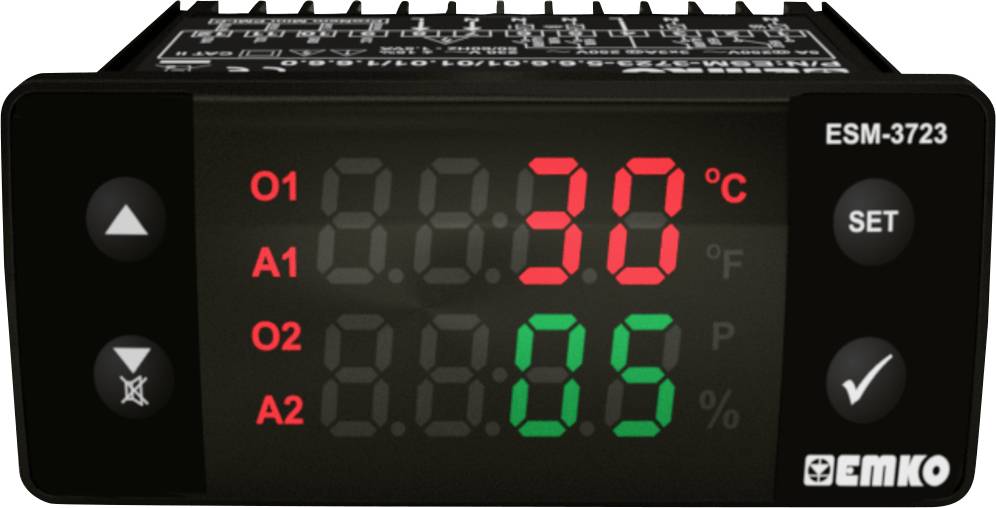

A digital temperature controller displays '30°C' in red for O1 and '05' in green for A2. Functions: Setting and warning indication.

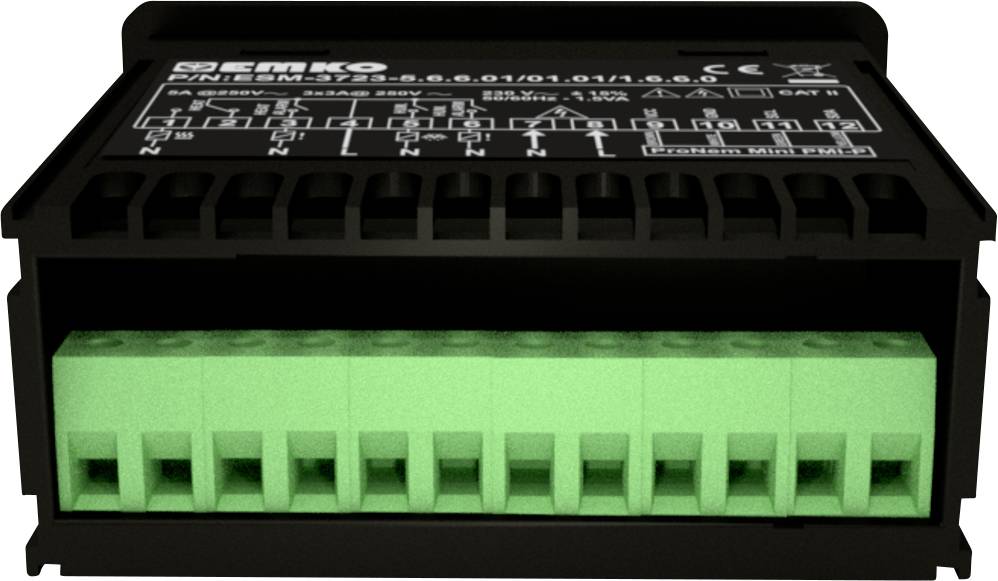

The image shows an EMKO control unit with a green connection strip at the front. White electrical specifications are visible at the top.

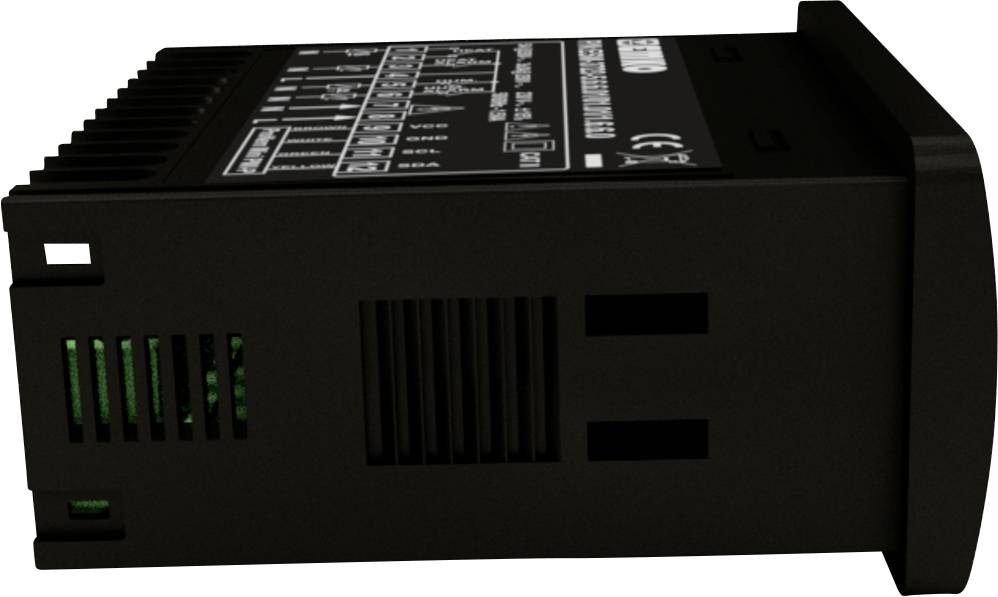

Black electronic device, visible from the side with ventilation slots, displays technical specifications and symbols at the top.

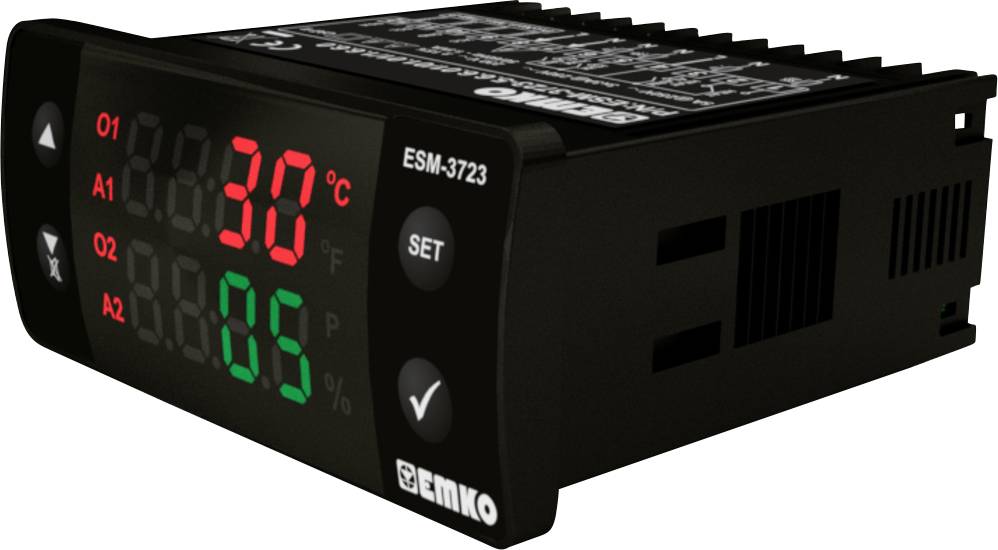

Digital temperature controller by EMKO. Displays 30°C in red and 85% in green. Model ESM-3723, with multiple control buttons.

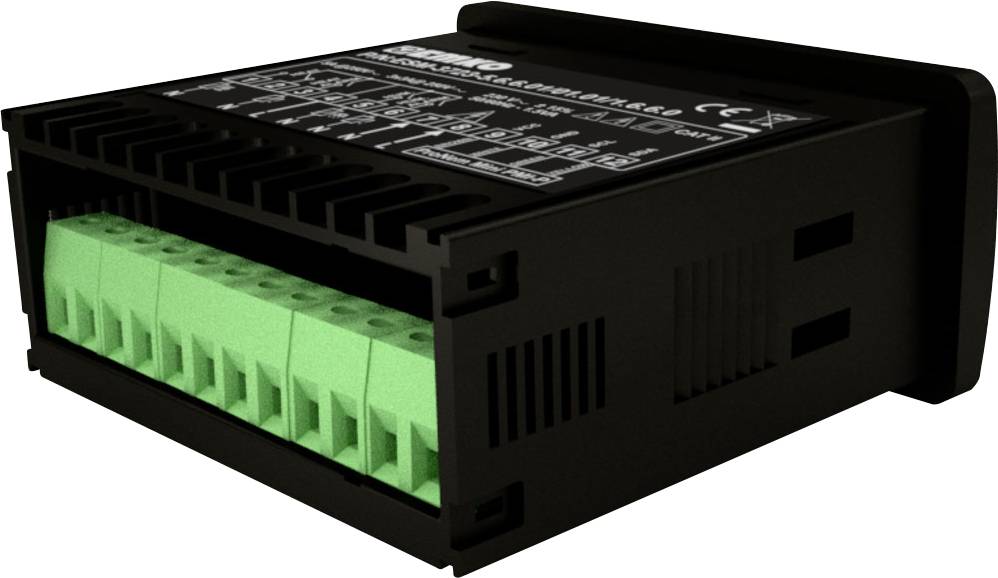

Black electric device with green connectors, with diagrams and technical specifications on top. Suitable for industrial applications.

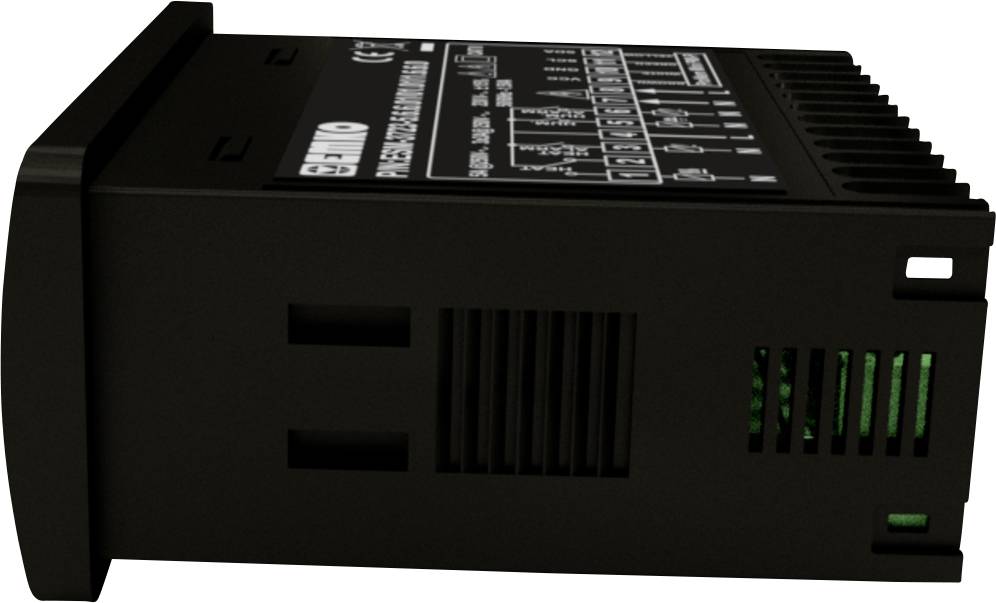

Black rectangular electronic device with ventilation slots and printed top surface, lying on its side.

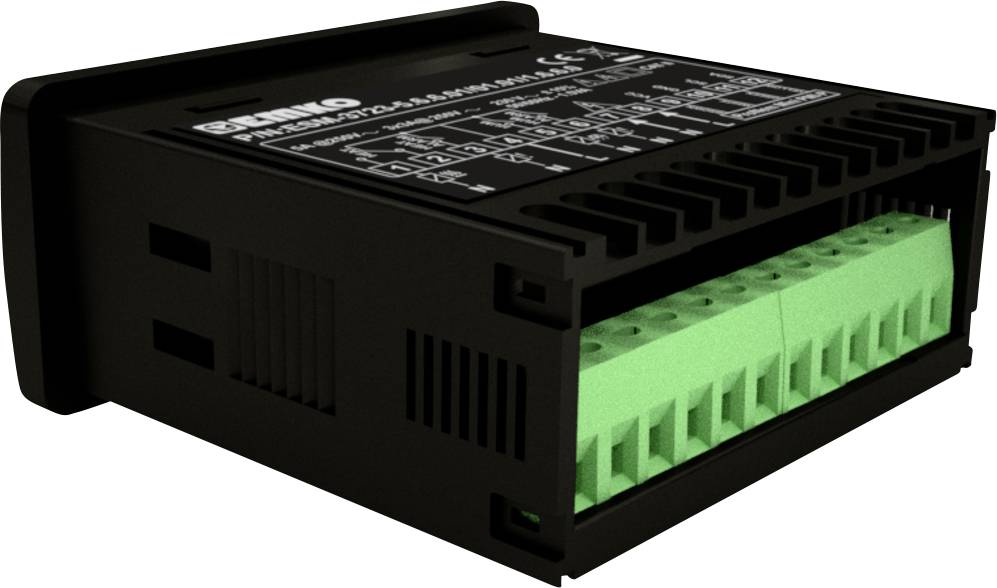

A black electronic device with green terminal connectors and markings on top. Usable for electrical circuits.

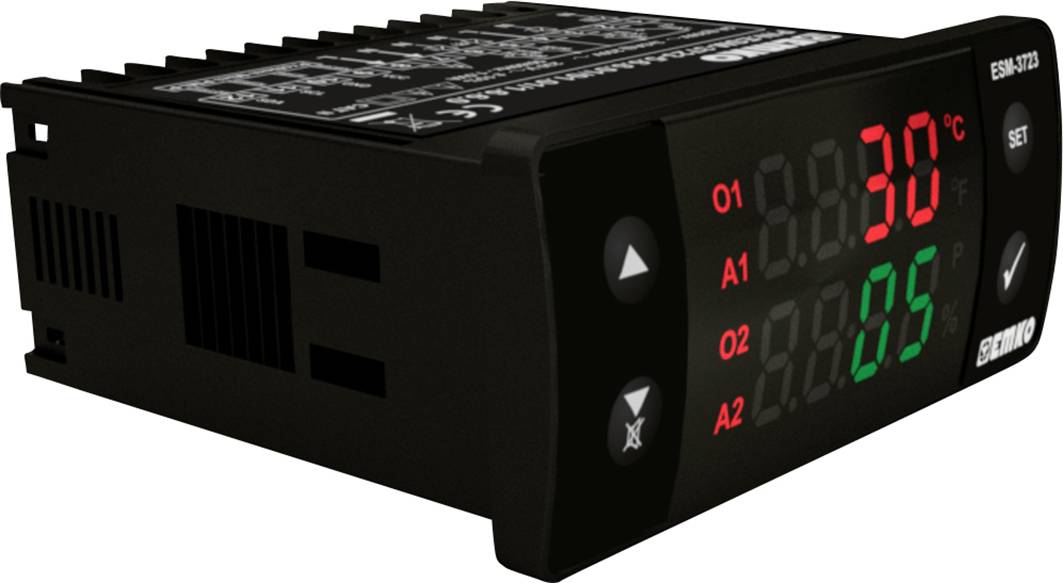

A digital control unit displays '30°C' in red and '85' in green on the display. The 'SET' button and other symbols are visible.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang, PID

Operating voltage

24 V DC/AC

Outputs (thermostats)

5 A relay

No. of relay outputs

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

Report legal concerns

Highlights & Details

Emko ESM-3723.2.5.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller

4-digit temperature display
4-digit display of air humidity
2-point or PID temperature control
Control output temperature
Alarm output temperature
Control output humidity
Alarm output air humidity
Buzzer for alarm values
Password protection for program settings

Technical specifications

Measurement input temperature: 0/4-20 mA
Measurement input humidity: 0/4-20 mA
Temperature control output: 5 A relay
Humidity control output: Relay 3 A.

Product type: Temperature controller

Type: ESM-3723.2.5.5.0.1/01.01/1.0.0.0

Thermostat type: Bang-bang, PID

Operating voltage: 24 V DC/AC

Outputs (thermostats): 5 A relay

No. of relay outputs: 4

Dim: (L x W x H) 65 x 76 x 35 mm

Factory colour: Black

Height: 35 mm

Length: 65 mm

Width: 76 mm

: Front: IP65 / connection: IP20

Manufacturer part #: ESM-3723.2.5.5.0.1/01.01/1.0.0.0

Recess depth: 65 mm

Mounting type: Recess-mount

Weight: 200 g

Variants(All information is without VAT, plus shipping costs)

Type

Operating voltage

No. of relay outputs

Outputs (thermostats)

Emko ESM-3723.2.5.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352571

This article

ESM-3723.2.5.5.0.1/01.01/1.0.0.0

24 V DC/AC

5 A relay

Emko ESM-3723.5.5.5.0.2/01.01/1.0.0 Bang-bang, PID Temperature controller SSR (L x W x H) 65 x 76 x 35 mm

Item no:1417411

ESM-3723.5.5.5.0.2/01.01/1.0.0

230 V AC

SSR

Emko ESM-3723.8.6.6.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352565

ESM-3723.8.6.6.0.1/01.01/1.0.0.0

10 V DC12 V DC24 V DC30 V DC

5 A relay

Emko ESM-3723.8.3.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller NTC 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352566

ESM-3723.8.3.5.0.1/01.01/1.0.0.0

10 V DC12 V DC24 V DC30 V DC

5 A relay

Emko ESM-3723.8.2.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller PTC 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352567

ESM-3723.8.2.5.0.1/01.01/1.0.0.0

10 V DC12 V DC24 V DC30 V DC

5 A relay

Emko ESM-3723.2.3.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller NTC 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352568

ESM-3723.2.3.5.0.1/01.01/1.0.0.0

24 V DC/AC

5 A relay

Emko ESM-3723.2.2.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller PTC 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352569

ESM-3723.2.2.5.0.1/01.01/1.0.0.0

24 V DC/AC

5 A relay

Emko ESM-3723.8.1.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller Pt100 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352572

ESM-3723.8.1.5.0.1/01.01/1.0.0.0

10 V DC12 V DC24 V DC30 V DC

5 A relay

Emko ESM-3723.2.1.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller Pt100 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352573

ESM-3723.2.1.5.0.1/01.01/1.0.0.0

24 V DC/AC

5 A relay

Emko ESM-3723.8.5.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352574

ESM-3723.8.5.5.0.1/01.01/1.0.0.0

10 V DC12 V DC24 V DC30 V DC

5 A relay

Documents & Downloads

Datasheet

Datasheet 2352571 Emko ESM-3723.2.5.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller 5 A relay (L x W x H) 65 x 76 x 35 mm

User & Safety Instructions

User & Safety Instructions 2352571 Emko ESM-3723.2.5.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller 5 A relay (L x W x H) 65 x 76 x 35 mm

Description

Temperature and air humidity controller with two measurement inputs. The controller has a dual display for temperature and air humidity. The temperature control can be set to PID or 2-point control. The controller is ideal for climate control in climate cabinets or greenhouses.

This text is machine translated.
