Buy Emko ESM-3723.5.6.6.0.2/01.01/1.6.6.0 Bang-bang, PID Temperature controller SSR (L x W x H) 65 x 76 x 35 mm

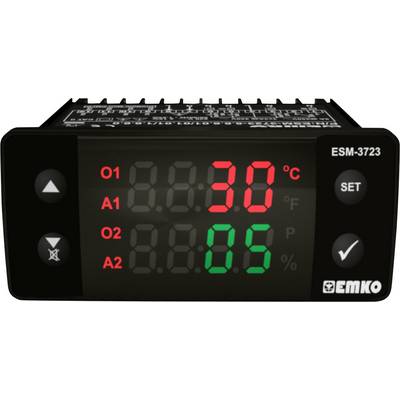

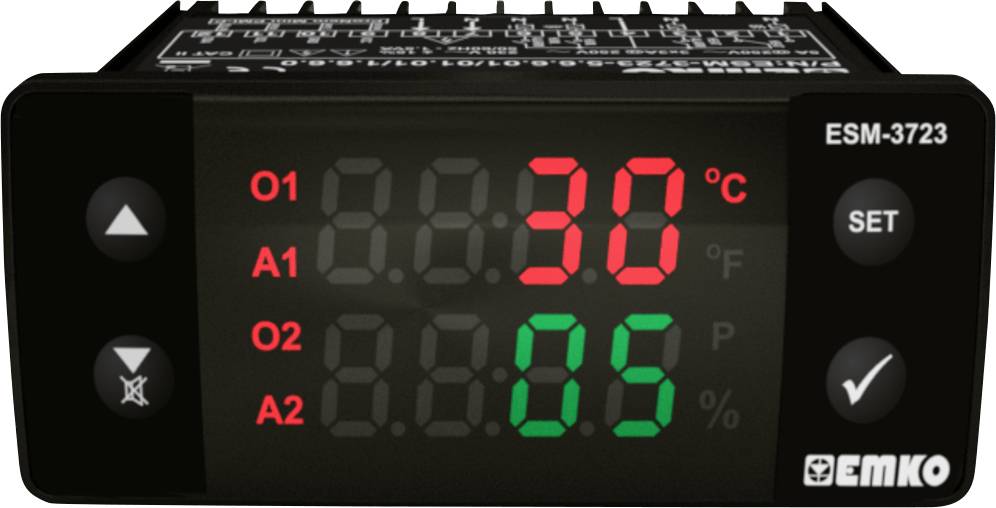

A digital temperature controller display shows '30°C' in red and '05' in green, with setting buttons and LED indicators O1, A1, A2.

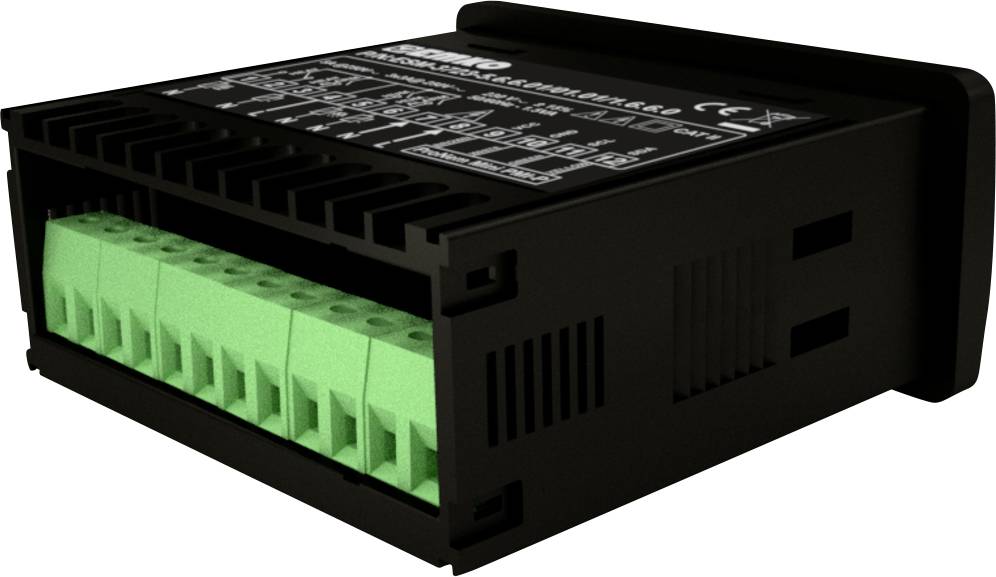

Black electronic controller with green connectors; contains technical specifications on the top surface.

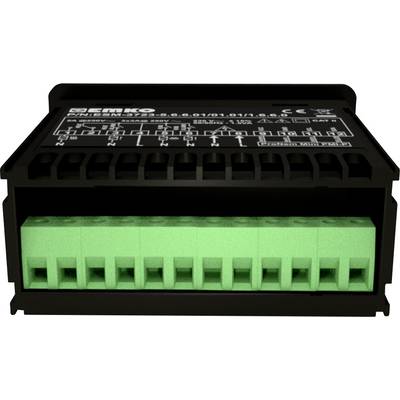

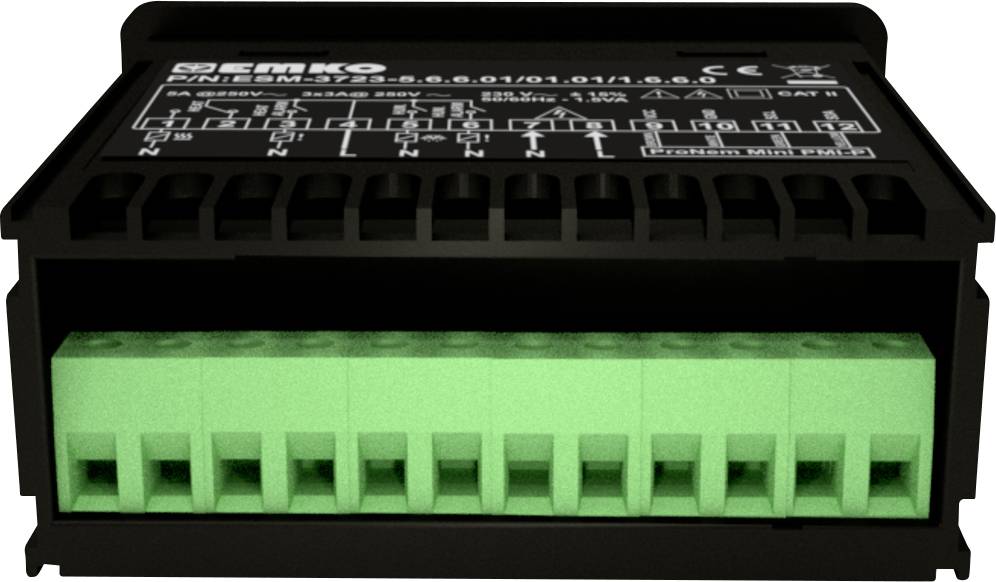

A black electronic connection module with green terminals; technical details on the upper label are slightly visible.

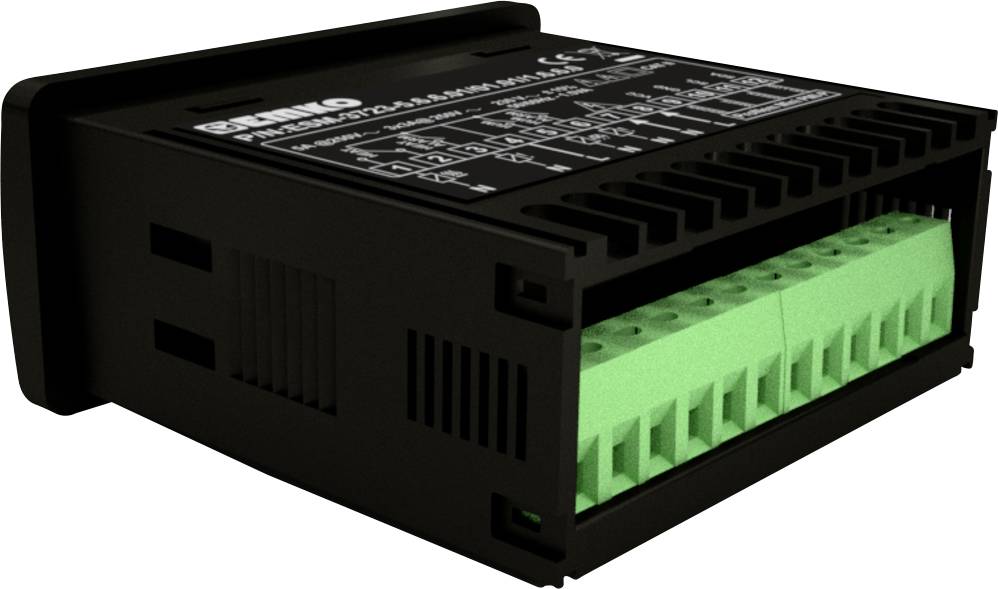

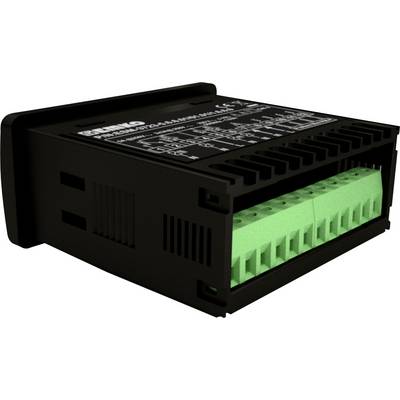

Black electronic device with green connectors, likely a relay or switching module. Technical specifications are printed on the top.

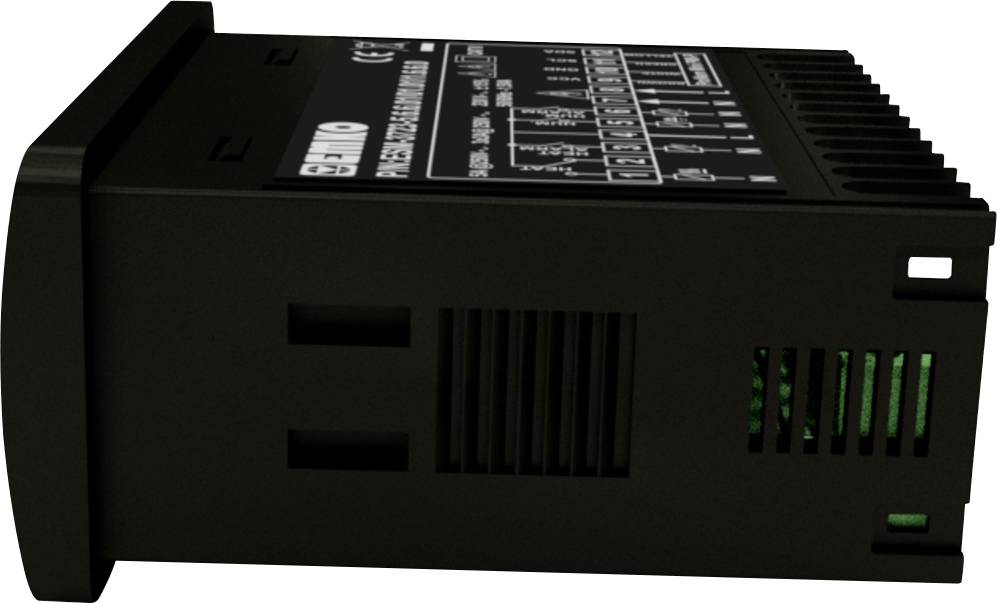

A black electronic device with ventilation slots and printed technical information on the top surface.

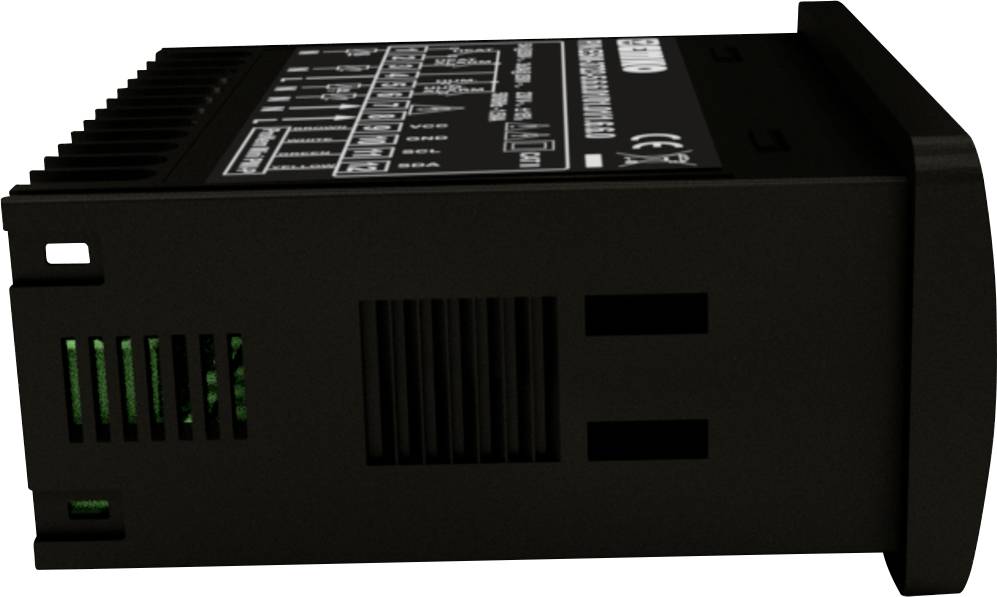

Black electronic device with ventilation slots on the side. White markings and technical information are located on the top.

A digital temperature and humidity measuring device with digital display. The temperature is 30°C and the humidity is 85%.

Digital temperature control device with red and green LED display. Red number shows 30°C, green number shows 85. Device has adjustment buttons.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang, PID

Operating voltage

230 V AC

Outputs (thermostats)

SSR

No. of relay outputs

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Emko ESM-3723.5.6.6.0.2/01.01/1.6.6.0 Bang-bang, PID Temperature controller

Includes Pronem mini humidity and temperature sensor
4-digit temperature display
4-digit display of air humidity
2-point or PID temperature control
Control output temperature
Alarm output temperature
Control output humidity
Alarm output air humidity
Buzzer for alarm values
Password protection for program settings

Technical specifications

Measuring input temperature: Pronem mini
Humidity measuring input: Pronem mini
Control output temperature: SSR
Humidity control output: Relay 3 A.

Product type: Temperature controller

Type: ESM-3723.5.6.6.0.2/01.01/1.6.6.0

Thermostat type: Bang-bang, PID

Operating voltage: 230 V AC

Outputs (thermostats): SSR

No. of relay outputs: 3

Dim: (L x W x H) 65 x 76 x 35 mm

Factory colour: Black

Height: 35 mm

Length: 65 mm

Width: 76 mm

: Front: IP65 / connection: IP20

Manufacturer part #: ESM-3723.5.6.6.0.2/01.01/1.6.6.0

Recess depth: 65 mm

Mounting type: Recess-mount

Weight: 200 g

Variants(All information is without VAT, plus shipping costs)

Type

Operating voltage

No. of relay outputs

Outputs (thermostats)

Emko ESM-3723.5.6.6.0.2/01.01/1.6.6.0 Bang-bang, PID Temperature controller SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352579

This article

ESM-3723.5.6.6.0.2/01.01/1.6.6.0

230 V AC

SSR

Emko ESM-3723.5.5.5.0.2/01.01/1.0.0 Bang-bang, PID Temperature controller SSR (L x W x H) 65 x 76 x 35 mm

Item no:1417411

ESM-3723.5.5.5.0.2/01.01/1.0.0

230 V AC

SSR

Emko ESM-3723.8.6.6.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352565

ESM-3723.8.6.6.0.1/01.01/1.0.0.0

10 V DC12 V DC24 V DC30 V DC

5 A relay

Emko ESM-3723.8.3.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller NTC 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352566

ESM-3723.8.3.5.0.1/01.01/1.0.0.0

10 V DC12 V DC24 V DC30 V DC

5 A relay

Emko ESM-3723.8.2.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller PTC 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352567

ESM-3723.8.2.5.0.1/01.01/1.0.0.0

10 V DC12 V DC24 V DC30 V DC

5 A relay

Emko ESM-3723.2.3.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller NTC 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352568

ESM-3723.2.3.5.0.1/01.01/1.0.0.0

24 V DC/AC

5 A relay

Emko ESM-3723.2.2.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller PTC 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352569

ESM-3723.2.2.5.0.1/01.01/1.0.0.0

24 V DC/AC

5 A relay

Emko ESM-3723.2.5.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352571

ESM-3723.2.5.5.0.1/01.01/1.0.0.0

24 V DC/AC

5 A relay

Emko ESM-3723.8.1.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller Pt100 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352572

ESM-3723.8.1.5.0.1/01.01/1.0.0.0

10 V DC12 V DC24 V DC30 V DC

5 A relay

Emko ESM-3723.2.1.5.0.1/01.01/1.0.0.0 Bang-bang, PID Temperature controller Pt100 0 up to 100 °C 5 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352573

ESM-3723.2.1.5.0.1/01.01/1.0.0.0

24 V DC/AC

5 A relay

Documents & Downloads

Datasheet

Datasheet 2352579 Emko ESM-3723.5.6.6.0.2/01.01/1.6.6.0 Bang-bang, PID Temperature controller SSR (L x W x H) 65 x 76 x 35 mm

User & Safety Instructions

User & Safety Instructions 2352579 Emko ESM-3723.5.6.6.0.2/01.01/1.6.6.0 Bang-bang, PID Temperature controller SSR (L x W x H) 65 x 76 x 35 mm

Description

Temperature and air humidity controller with two measurement inputs. The controller has a dual display for temperature and air humidity. The temperature control can be set to PID or 2-point control. The controller is ideal for climate control in climate cabinets or greenhouses.

This text is machine translated.
