Name: Emko ESM-4410.2.03.0.1/00.00/2.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 7 A relay (L x W x H) 95 x
Brand: Emko
SKU: 2352455
Availability: BackOrder

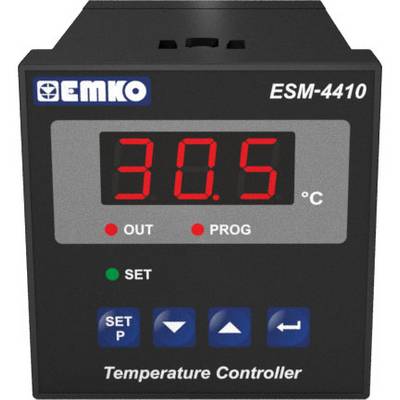

Black temperature controller with digital display '30.5 °C'. Shows operating modes 'OUT' and 'PROG'. Buttons for adjustment present.

A black electronic device with ventilation slots and a green connector on the side.

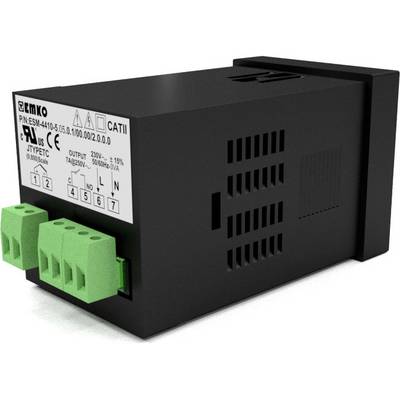

Black electrical device with green connectors and multiple safety and manufacturer markings.

A black electronic device with multiple ventilation slots and a green connection block on the left side.

Black electronic device with green connection terminals, labelled 'GEMKO ESM-4410', displaying technical specifications.

Temperature controller with digital display shows 30.5 °C. Plastic housing with control buttons for programming and configuration.

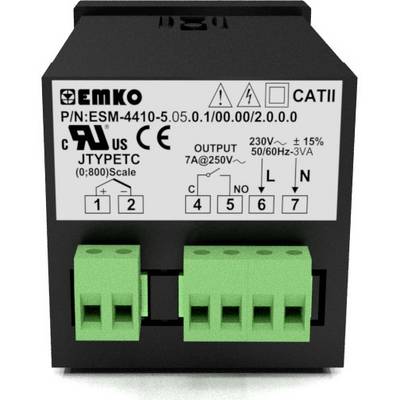

An electrical device by Emko with connection terminals and technical specifications on the front, such as voltage and current rating.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang

Operating voltage

24 V DC/AC

Max. temperature reading

400 °C

Outputs (thermostats)

7 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 93.99 / piece)

€ 93.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-4410.2.03.0.1/00.00/2.0.0.0 Bang-bang Temperature controller

3-digit display
2-point control
Heating or cooling function can be selected
Hysteresis
Offset values
Password protection for program settings

Technical specifications

Product type: Temperature controller

Type: ESM-4410.2.03.0.1/00.00/2.0.0.0

Thermostat type: Bang-bang

Operating voltage: 24 V DC/AC

Reading range: -50 up to 400 °C

Max. temperature reading: 400 °C

Min. temperature reading: -50 °C

Outputs (thermostats): 7 A relay

No. of relay outputs: 2

Dim: (L x W x H) 95 x 48 x 48 mm

Factory colour: Black

Height: 48 mm

Length: 95 mm

Width: 48 mm

: Front: IP65 / connection: IP20

Sensor type: Pt100

Manufacturer part #: ESM-4410.2.03.0.1/00.00/2.0.0.0

Recess depth: 84 mm

Mounting type: Recess-mount

Sensor type: Pt100

Weight: 160 g

Variants(All information include VAT, plus shipping costs)

Max. temperature reading

No. of relay outputs

Operating voltage

Sensor type

Emko ESM-4410.2.03.0.1/00.00/2.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352455

Available soon

Conrad Electronic

This article

400 °C

24 V DC/AC

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

Emko ESM-4410.2.05.0.1/00.00/2.0.0.0 Bang-bang Temperature controller J 0 up to 800 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352454

Available soon

Conrad Electronic

800 °C

24 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

Emko ESM-4410.2.10.0.1/00.00/2.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352456

Available soon

Conrad Electronic

999 °C

24 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Emko ESM-4410.2.12.0.1/00.00/2.0.0.0 Bang-bang Temperature controller PTC -50 up to 130 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352453

Available soon

Conrad Electronic

130 °C

24 V DC/AC

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

Emko ESM-4410.2.14.0.1/00.00/2.0.0.0 Bang-bang Temperature controller Pt1000 -50 up to 400 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352452

Available soon

Conrad Electronic

400 °C

24 V DC/AC

Pt1000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

Emko ESM-4410.2.18.0.1/00.00/2.0.0.0 Bang-bang Temperature controller NTC -50 up to 100 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352451

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

100 °C

24 V DC/AC

NTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

Emko ESM-4410.5.03.0.1/00.00/2.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352464

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

400 °C

230 V AC

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Emko ESM-4410.5.05.0.1/00.00/2.0.0.0 Bang-bang Temperature controller J 0 up to 800 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352460

Available soon

Conrad Electronic

800 °C

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 67.99^*

Emko ESM-4410.5.10.0.1/00.00/2.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352463

Available soon

Conrad Electronic

999 °C

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-4410.5.10.0.1/00.00/2.0.0.0 Bang-bang Temperature controller K 0 up to 999 °C 7 A relay (L x W x H) 95 x 48 x 48 mm

Item no:2352461

Available soon

Conrad Electronic

999 °C

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 65.99^*

Documents & Downloads

Datasheet

Datasheet 2352455 Emko ESM-4410.2.03.0.1/00.00/2.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 7 A relay (L x W x H) 95 x

User & Safety Instructions

User & Safety Instructions 2352455 Emko ESM-4410.2.03.0.1/00.00/2.0.0.0 Bang-bang Temperature controller Pt100 -50 up to 400 °C 7 A relay (L x W x H) 95 x

Description

Emko ESM-4410 is a 2-point temperature controller for control panel installation. With adjustable temperature setpoint, the controller is used for heating or cooling applications.
