Name: Emko ESM-7720.2.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S, T -200 up to 17
Brand: Emko
SKU: 2352515
Availability: BackOrder

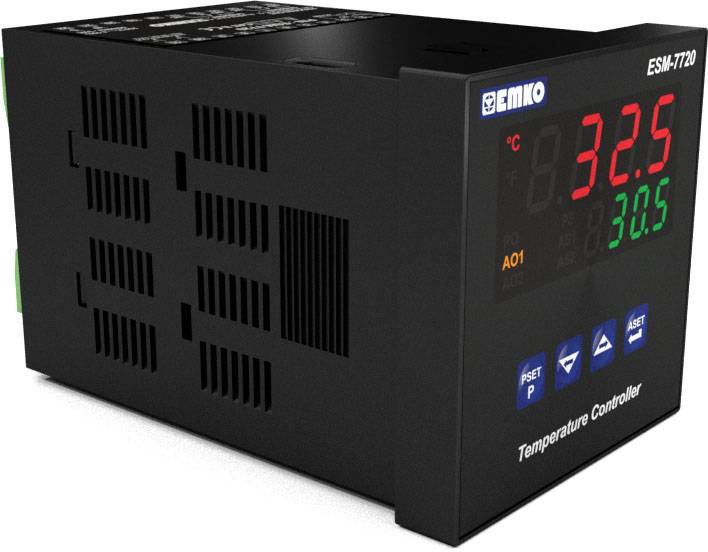

A temperature controller with a digital display shows '32.5 °C' in red text and '30.5' in green text, with several function buttons underneath.

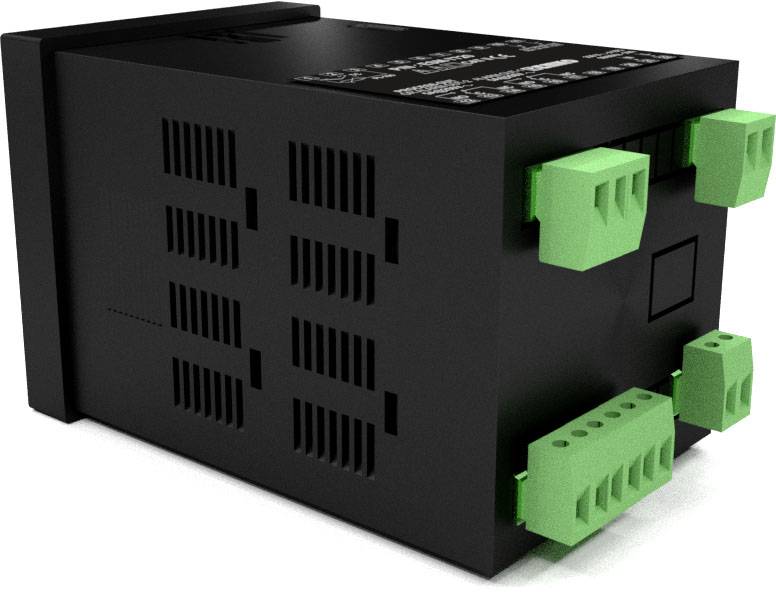

'Black electronic device with multiple green connection terminals on the side.'

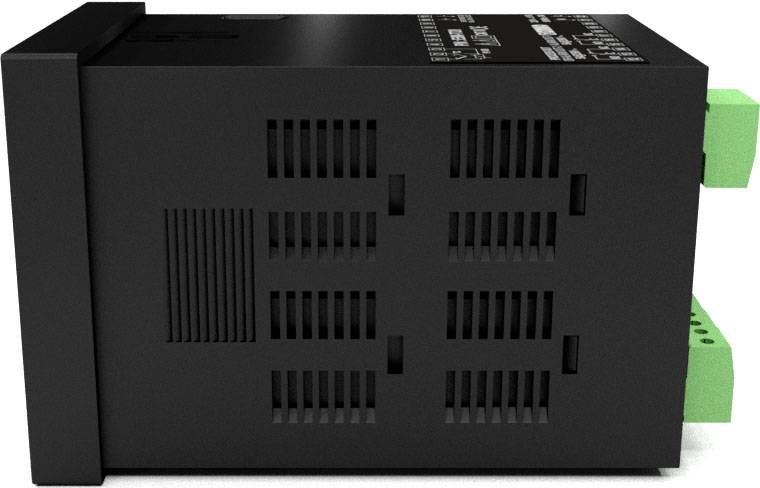

Black electronic device with ventilation slots and green ports on the right side, used for industrial control.

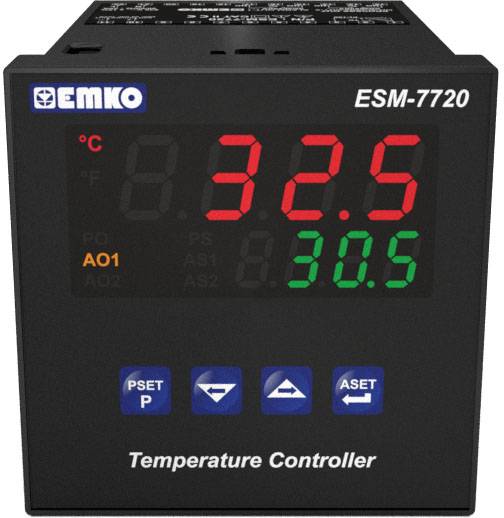

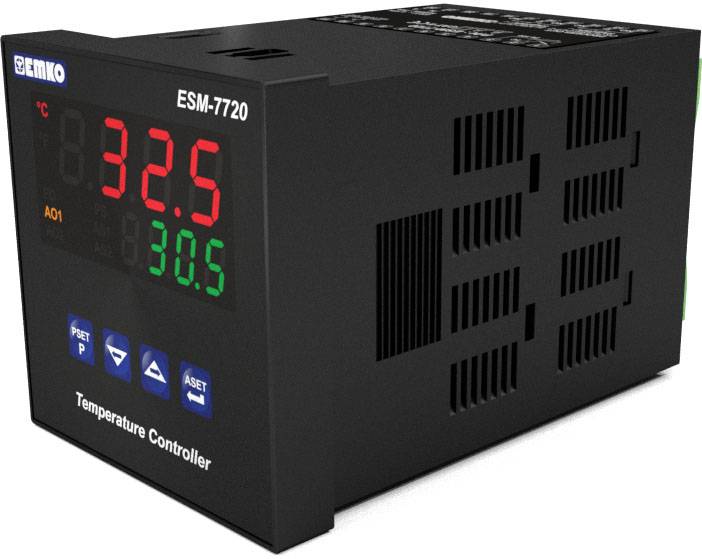

Electronic temperature controller with a red display showing '32.5' degrees Celsius. Green numbers display '30.5'. Control buttons located at the front.

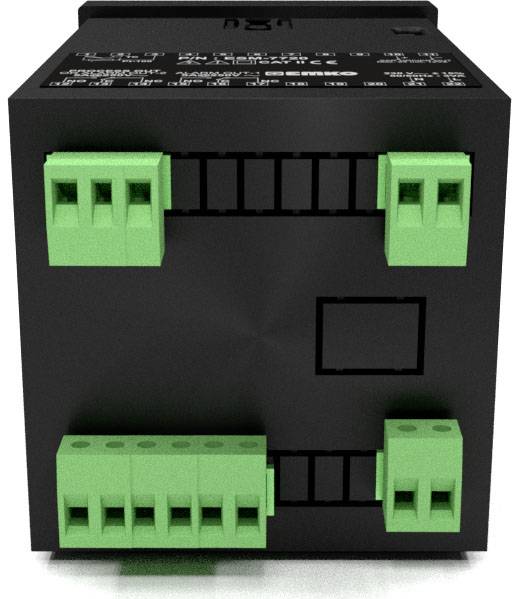

'Black electric device with green connectors, suitable for industrial applications.'

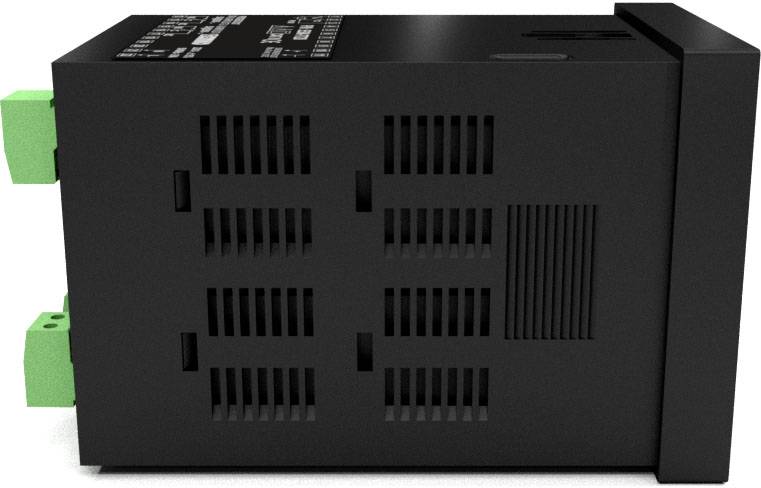

A black electronic device with ventilation slots, positioned sideways. Green-coloured connectors are visible.

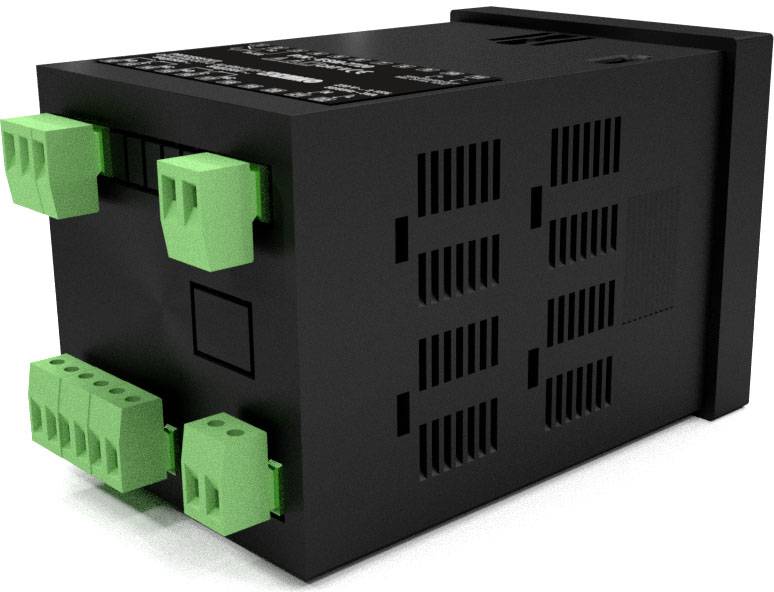

Black rectangular electronic enclosure with green plug contacts on one side. It could be an industrial or automation device.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang, P, PI, PD, PID

Operating voltage

24 V DC/AC

Max. temperature reading

1700 °C

Outputs (thermostats)

5 A relay

SSR

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 4 pc(s))

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-7720.2.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller

4-digit process display
4-digit setpoint display
Universal sensor input for Pt100, J, K, R, S, T
2-point, P, PI, PD or PID control
Heating or cooling function can be selected
Control output relay 5 A.
Control output SSR
Alarm output relay 5 A.
PID self-optimization function
Password protection for program settings
Adjustable temperature offset values
Hysteresis

Technical specifications

Product type: Temperature controller

Type: ESM-7720.2.20.0.1/01.02/0.0.0.0

Thermostat type: Bang-bang, P, PI, PD, PID

Operating voltage: 24 V DC/AC

Reading range: -200 up to 1700 °C

Max. temperature reading: 1700 °C

Min. temperature reading: -200 °C

Outputs (thermostats): 5 A relay
SSR

No. of relay outputs: 3

Dim: (L x W x H) 95 x 72 x 72 mm

Factory colour: Black

Height: 72 mm

Length: 95 mm

Width: 72 mm

: Front: IP65 / connection: IP20

Sensor type: Pt100
J
K
R
S
T

Manufacturer part #: ESM-7720.2.20.0.1/01.02/0.0.0.0

Recess depth: 84 mm

Mounting type: Recess-mount

Sensor type: PT00||J||K||R||S||T

Weight: 270 g

Documents & Downloads

Datasheet

Datasheet 2352515 Emko ESM-7720.2.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S, T -200 up to 17

User & Safety Instructions

User & Safety Instructions 2352515 Emko ESM-7720.2.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S, T -200 up to 17

Description

The PID temperature controller ESM-7720 can be used with the universal process control input, control outputs and selectable alarm functions for many applications. The control type can be set to ON-OFF, P, PI, PD or PID. The PID temperature controller also has a PID self-optimization function Self Tune (step feedback). The control outputs can be programd for heating, cooling and alarm functions.
