Name: Emko ESM-9930.2.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Universal controller Pt100, L, J, K, R, S, T, B, E, N, C
Brand: Emko
SKU: 2352530
Availability: BackOrder

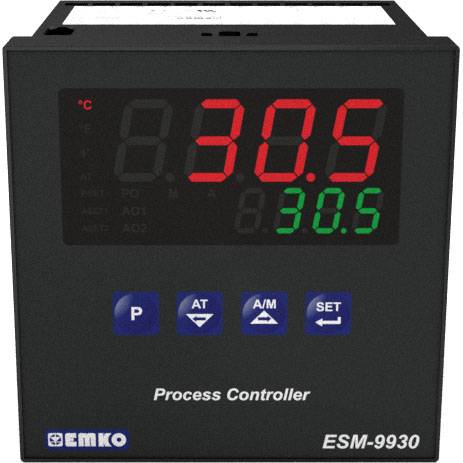

'Digital process controller ESM-9930 with temperature display in Red 30.5°C and Green 30.5°C, control keys P, AT, A/M, SET.'

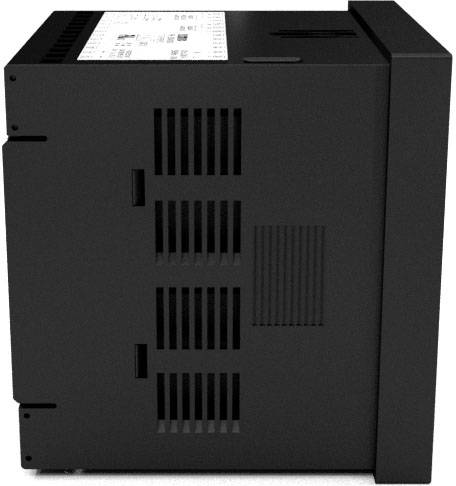

'Black, rectangular electronic device with ventilation slots on the side, standing on a stable surface.'

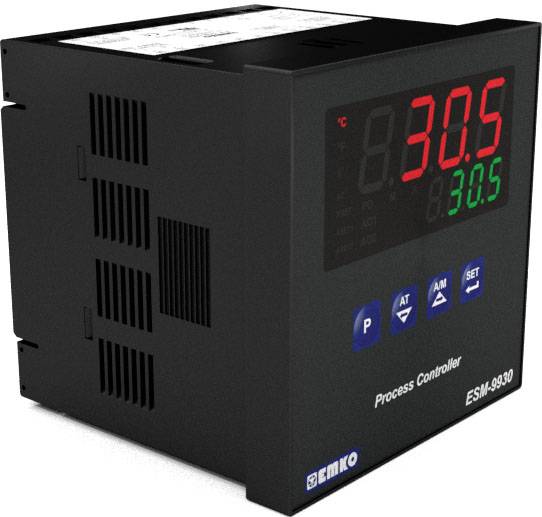

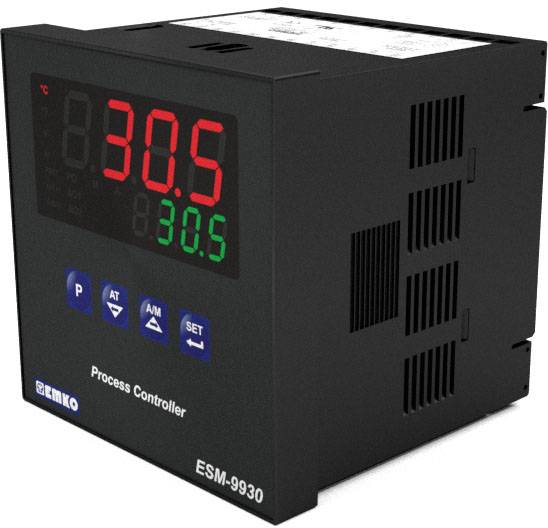

A digital process controller displays a temperature of 30.5 °C. The device has a display with red and green digits.

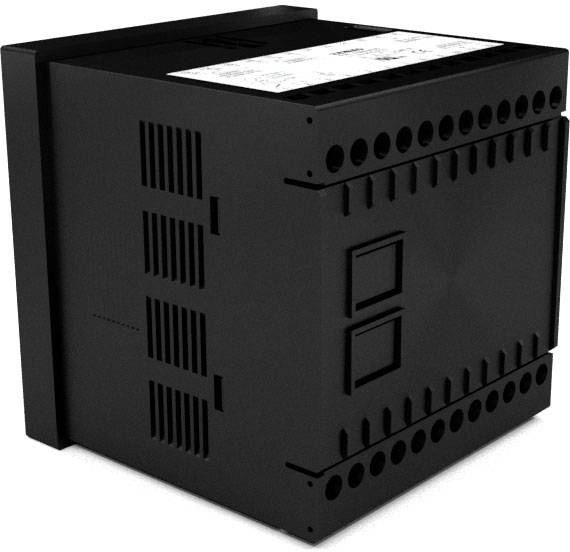

Black electronic module with ventilation slots and multiple connection ports, used for industrial applications.

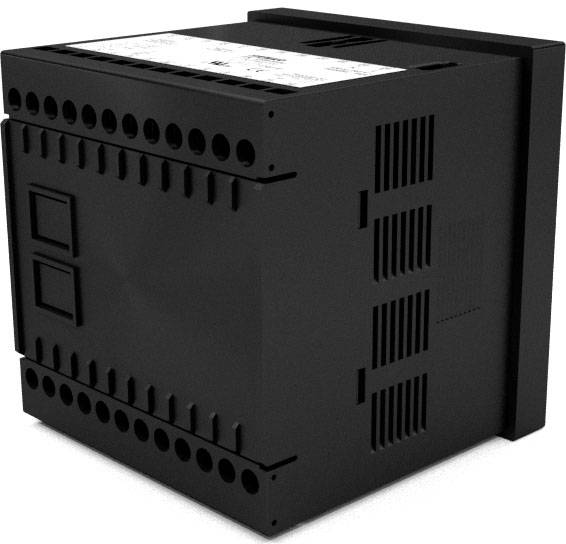

A black electrical enclosure with multiple connection options, ventilation slots, and a label on top.

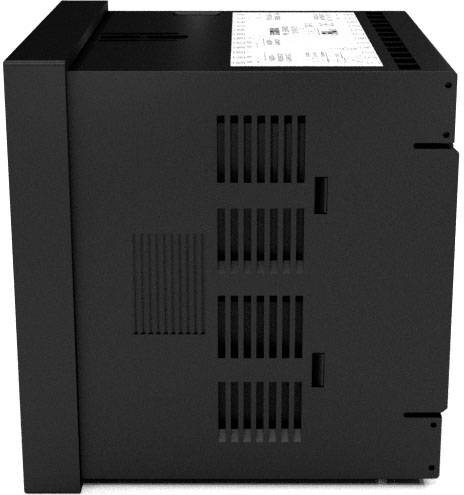

Black rectangular electronic component with ventilation slots on the side. Top surface bears a label with illegible text.

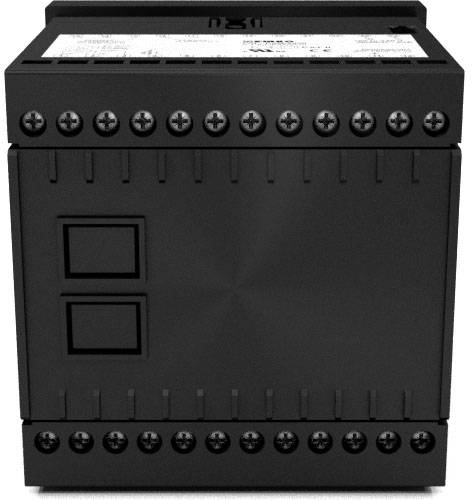

A black electrical relay device with multiple screw terminals at the top and bottom, designed for use in industrial control systems.

1/8

Product type

Universal controller

Thermostat type

Bang-bang, P, PI, PD, PID

Operating voltage

24 V DC/AC

Max. temperature reading

1700 °C

Outputs (thermostats)

5 A relay

SSR

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-9930.2.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Universal controller

4-digit process display
4-digit setpoint display
Universal measuring input for Pt100, L, J, K, R, S, T, B, E, N, C, 0-50 mV, 0-10 V, 0/4-20 mA
2-point, P, PI, PD or PID control
Heating or cooling function can be selected
Control output relay 5 A.
Control output SSR
Alarm output relay 5 A.
PID self-optimization function
Two-point or multi-point calibration Analogue signals
Soft start-up.
Password protection for program settings
Adjustable temperature offset values
Hysteresis

Technical specifications

Product type: Universal controller

Type: ESM-9930.2.20.0.1/01.02/0.0.0.0

Thermostat type: Bang-bang, P, PI, PD, PID

Operating voltage: 24 V DC/AC

Reading range: -200 up to 1700 °C

Max. temperature reading: 1700 °C

Min. temperature reading: -200 °C

Outputs (thermostats): 5 A relay
SSR

No. of relay outputs: 3

Dim: (L x W x H) 88 x 96 x 96 mm

Factory colour: Black

Height: 96 mm

Length: 88 mm

Width: 96 mm

: Front: IP65 / connection: IP20

Sensor type: Pt100
L
J
K
R
S
T
B
E
N
C
Show more

Manufacturer part #: ESM-9930.2.20.0.1/01.02/0.0.0.0

Recess depth: 76 mm

Mounting type: Recess-mount

Sensor type: PT00||L||J||K||R||S||T||B||E||N||C

Weight: 280 g

Documents & Downloads

Datasheet

Datasheet 2352530 Emko ESM-9930.2.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Universal controller Pt100, L, J, K, R, S, T, B, E, N, C

User & Safety Instructions

User & Safety Instructions 2352530 Emko ESM-9930.2.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Universal controller Pt100, L, J, K, R, S, T, B, E, N, C

Description

ESM-9930 is a universal controller for temperature and process control. The controller can be set to 2-point, P, PI, PD or PID control. In addition, the controller has a PID self-optimization function, adjustable to Auto-Tune (cycle limitation) or Self-Tune (step feedback). The control outputs can be programd for heating, cooling and alarm functions.
