Name: Emko ESM-9944-N Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S -200 up to 1700 °C 7 A relay, 5 A rel
Brand: Emko
SKU: 2102717
Availability: InStock

A black temperature display device with a red LED display shows '125.1'. It has a rotary control knob and symbols for Celsius and Fahrenheit.

Digital temperature controller with large red display showing '125.1'. Adjustment switch located below, in a compact black design.

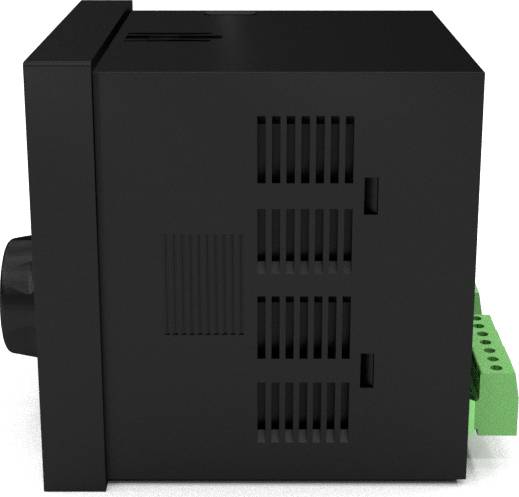

A black electronic device with ventilation slots on the side and green ports on the back.

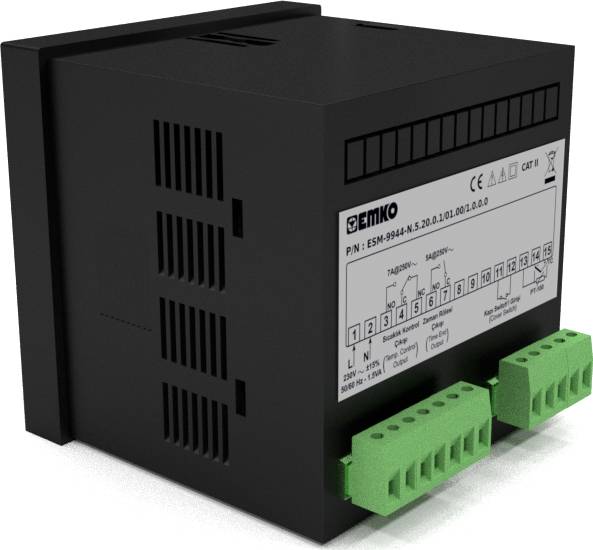

Black modular device with green connection terminals, marked with 'EMKO ESM-9940-N.5'. Labelling for connections and specifications visible.

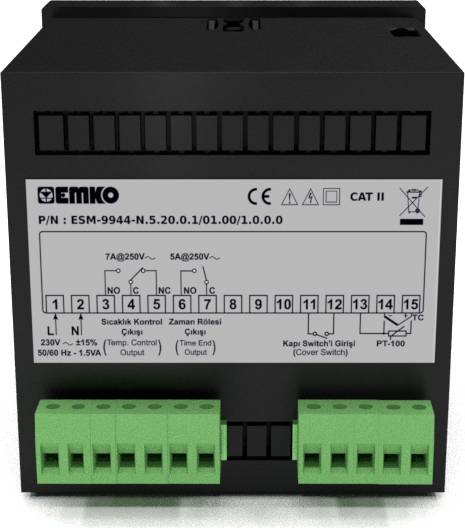

A black electric device with a green connection block, model number on top, functional diagram on the front, suitable for control systems.

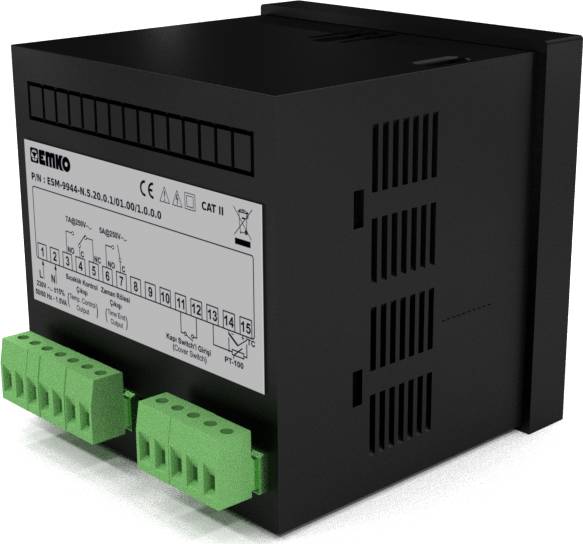

A black electric device with green ports at the front. Label shows technical specifications on top.

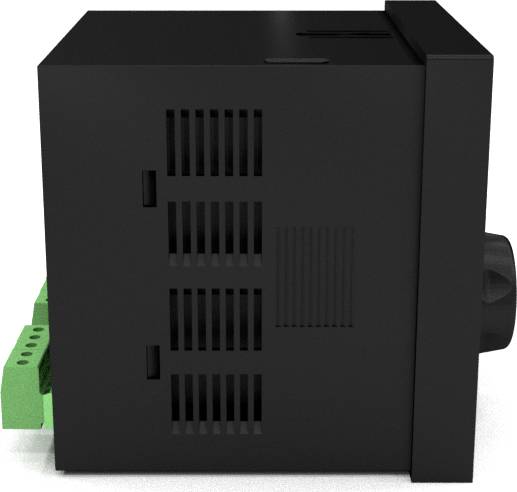

Black electric device with ventilation slots and a green socket on one side, possibly a control unit.

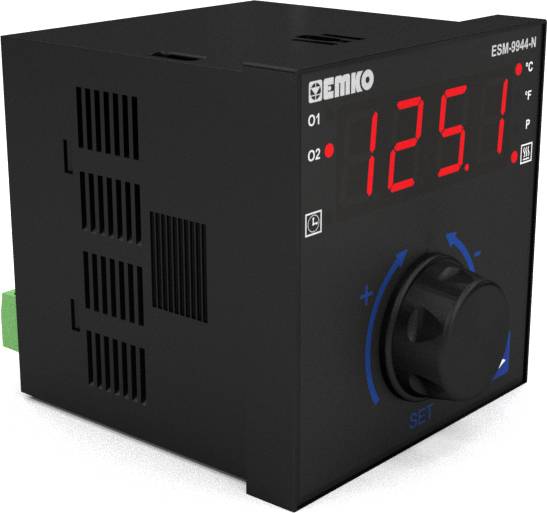

Digital temperature display with red LED screen shows '125.1°C'. Black casing with rotary knob and blue labelling 'SET'.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang, P, PI, PD, PID

Operating voltage

230 V AC

Max. temperature reading

1700 °C

Outputs (thermostats)

7 A relay

5 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

EMKO ESD-9944-N. B.20.0.1/01.00/1.0.0.0 2-point and PID temperature controller with universal sensor input, timer, buzzer and dial 230 V AC supply voltage

4-digit display
Timer hours/minutes or minutes/seconds
Universal sensor input for Pt100, J, K, R, S.
2-point, P, PI, PD or PID control
PID self-optimization function
Hysteresis
Offset values
Internal buzzer
Door switch input

Technical specifications

Product type: Temperature controller

Type: ESM-9944-N

Thermostat type: Bang-bang, P, PI, PD, PID

Operating voltage: 230 V AC

Reading range: -200 up to 1700 °C

Max. temperature reading: 1700 °C

Min. temperature reading: -200 °C

Outputs (thermostats): 7 A relay
5 A relay

No. of relay outputs: 2

Dim: (L x W x H) 96 x 96 x 96 mm

Factory colour: Black

Height: 96 mm

Length: 96 mm

Width: 96 mm

: Front: IP65 / connection: IP20

Sensor type: Pt100
J
K
R
S

Manufacturer part #: ESM-9944-N.5.20.0.1/01.00/1.0.0.R

Recess depth: 8.4 cm

Mounting type: Recess-mount

Digital inputs: 1

Sensor type: PT100||J||K||R||S

Weight: 370 g

Documents & Downloads

Datasheet

Datasheet 2102717 Emko ESM-9944-N Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S -200 up to 1700 °C 7 A relay, 5 A rel

User & Safety Instructions

User & Safety Instructions 2102717 Emko ESM-9944-N Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S -200 up to 1700 °C 7 A relay, 5 A rel

Description

ESM-9944-N is a temperature controller with timer, buzzer and dial, which convinces through simple operation and good readability of the temperature display. In addition to setting the temperature setpoint, the rotary control also serves as a control center for making the settings. Press the rotary knob to open the menu and make the settings. With the universal sensor input for thermocouples and resistance thermometers almost all common sensor types can be connected. The connected sensor type is simply selected in the settings. The temperature controller with timer and buzzer is ideal for controlling the temperature in ovens, fermenting plants, ceramic and glass ovens, grain dryers and industrial deep-fat demonstarts.

This text is machine translated.
