Name: Emko ESM-9945-N.5.20.0.1/01.01/1.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S -200 up to 170
Brand: Emko
SKU: 2352564
Availability: InStock

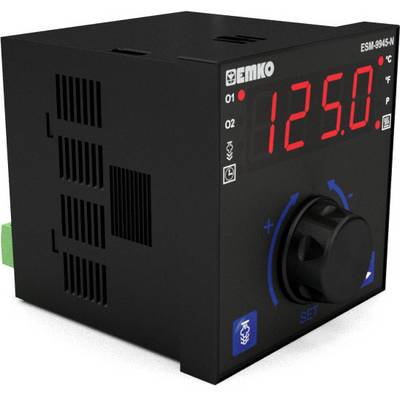

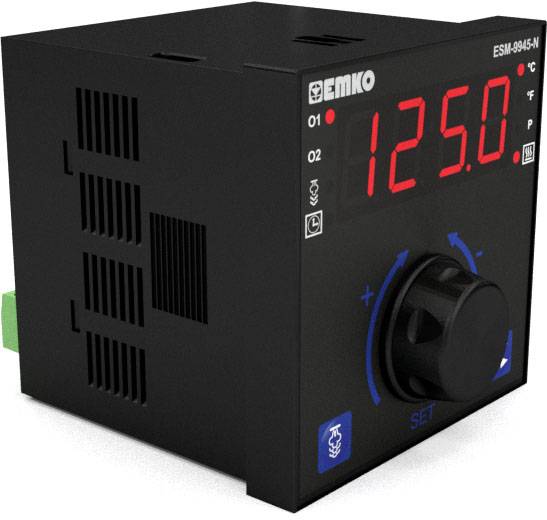

Black temperature controller shows 125.0°C. Knob and digital display on the front, with symbols for temperature and settings functions.

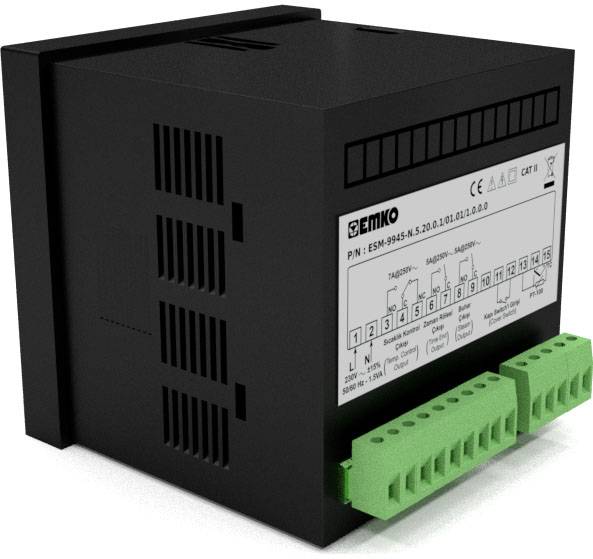

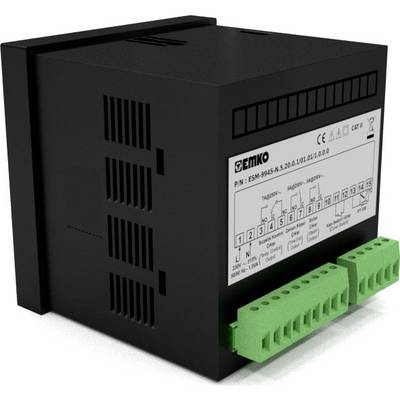

A black electronic control unit with green connection terminals, showing an interface panel table with connections and technical specifications.

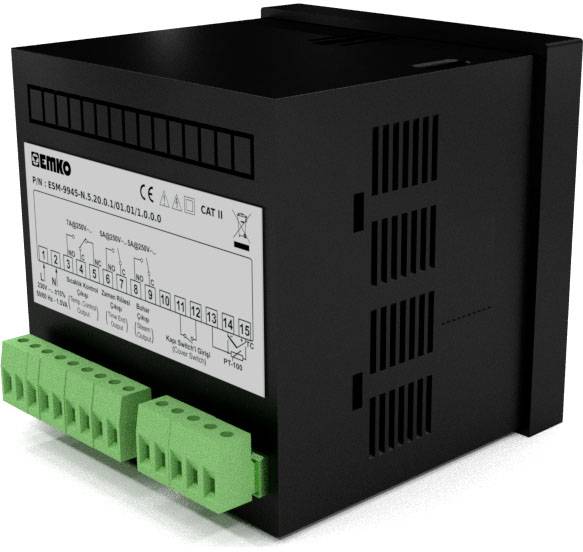

A black electronic controller with green connection terminals and labelled 'EMKO'. It displays technical specifications and diagrams.

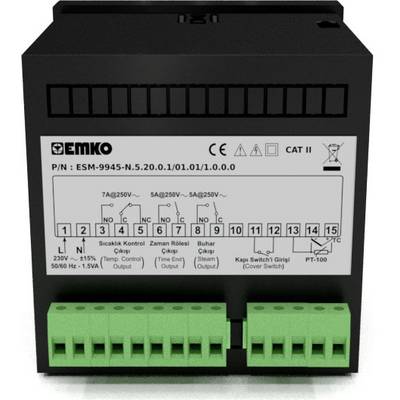

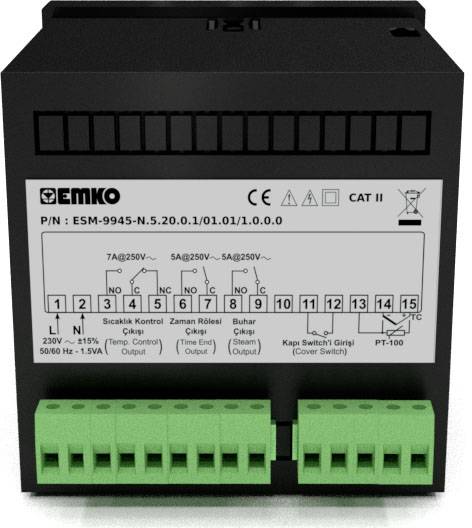

A black EMKO device with model number 'ESM-9945-N.5.20.0.1/01.01/1.0.0.0'. Powered by 230V~ and used for temperature control.

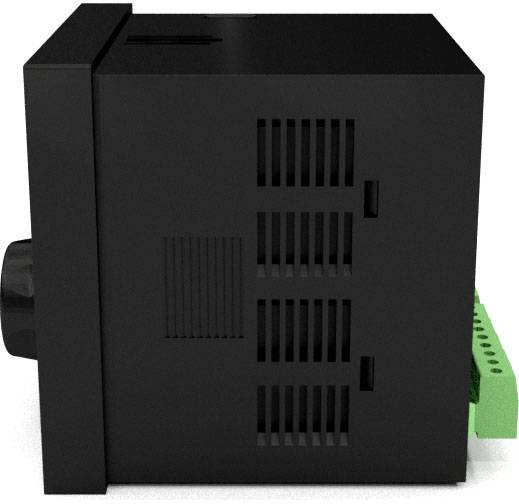

The image depicts a black, rectangular electronic device with ventilation slots and a green connector on the side, likely a transformer.

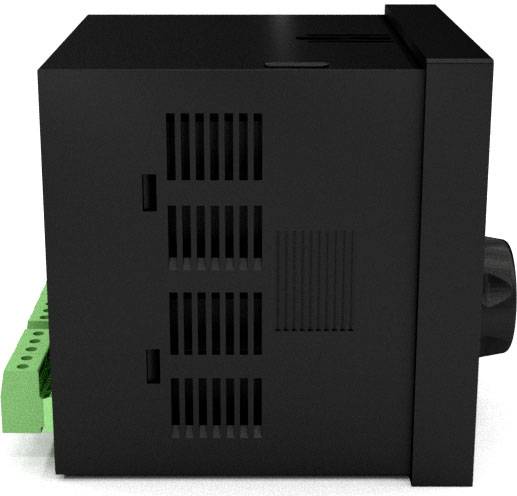

A black electronic device with ventilation slots on the side and green connectors, presumably a technical module.

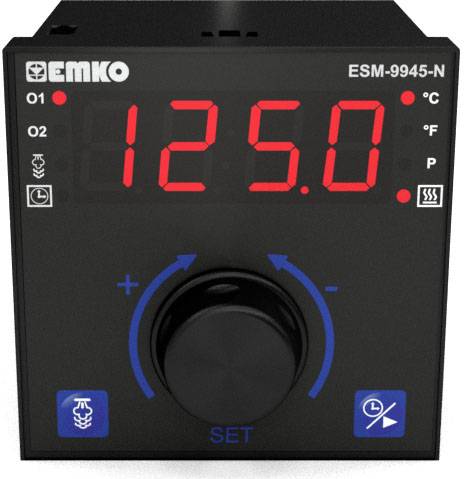

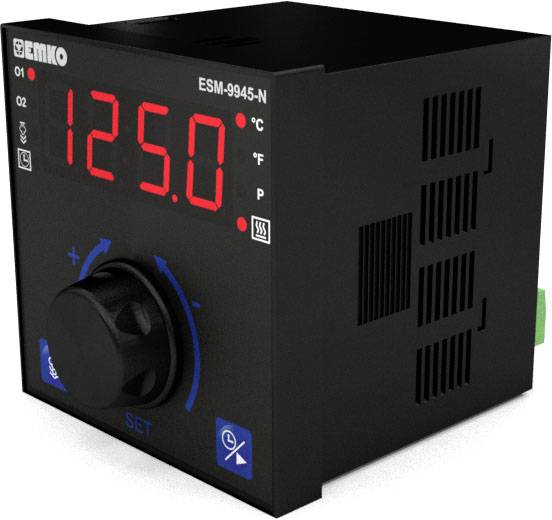

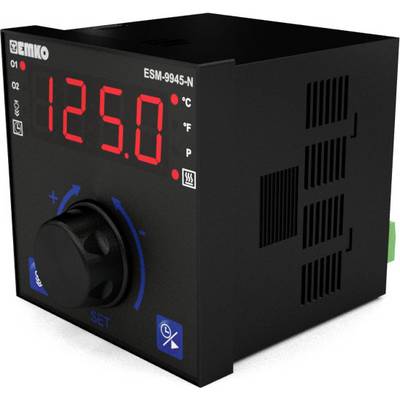

Temperature controller with digital display showing '125.0' degrees. Rotary knob underneath, several symbols on the front, black casing.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang, P, PI, PD, PID

Operating voltage

230 V AC

Max. temperature reading

1700 °C

Outputs (thermostats)

7 A relay

5 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-9945-N.5.20.0.1/01.01/1.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller

4-digit display
Timer hours/minutes or minutes/seconds
Universal sensor input for Pt100, J, K, R, S.
2-point, P, PI, PD or PID control
PID self-optimization function
Hysteresis
Offset values
Internal buzzer
Door switch input
Evaporator output

Technical specifications

Product type: Temperature controller

Type: ESM-9945-N.5.20.0.1/01.01/1.0.0.0

Thermostat type: Bang-bang, P, PI, PD, PID

Operating voltage: 230 V AC

Reading range: -200 up to 1700 °C

Max. temperature reading: 1700 °C

Min. temperature reading: -200 °C

Outputs (thermostats): 7 A relay
5 A relay

No. of relay outputs: 3

Dim: (L x W x H) 96 x 96 x 96 mm

Factory colour: Black

Height: 96 mm

Length: 96 mm

Width: 96 mm

: Front: IP65 / connection: IP20

Sensor type: Pt100
J
K
R
S

Manufacturer part #: ESM-9945-N.5.20.0.1/01.01/1.0.0.0

Recess depth: 8.4 cm

Mounting type: Recess-mount

Digital inputs: 1

Sensor type: PT100||J||K||R||S

Weight: 370 g

Documents & Downloads

Datasheet

Datasheet 2352564 Emko ESM-9945-N.5.20.0.1/01.01/1.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S -200 up to 170

User & Safety Instructions

User & Safety Instructions 2352564 Emko ESM-9945-N.5.20.0.1/01.01/1.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S -200 up to 170

Description

ESM-9945-N is a temperature controller with timer, buzzer and dial, which convinces through simple operation and good readability of the temperature display. In addition to setting the temperature setpoint, the rotary control also serves as a control center for making the settings. Press the rotary knob to open the menu and make the settings. With the universal sensor input for thermocouples and resistance thermometers almost all common sensor types can be connected. The connected sensor type is simply selected in the settings. The temperature controller with timer and buzzer is ideal for controlling the temperature in ovens, fermenting plants, ceramic and glass ovens, grain dryers and industrial deep-fat demonstarts. In addition, this controller has an additional relay output for controlling an evaporator.

This text is machine translated.
