Buy Enda Bang-bang Digital voltage divider -60 up to 150 °C Analogue current (L x W x H) 71 x 70 x 29 mm | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

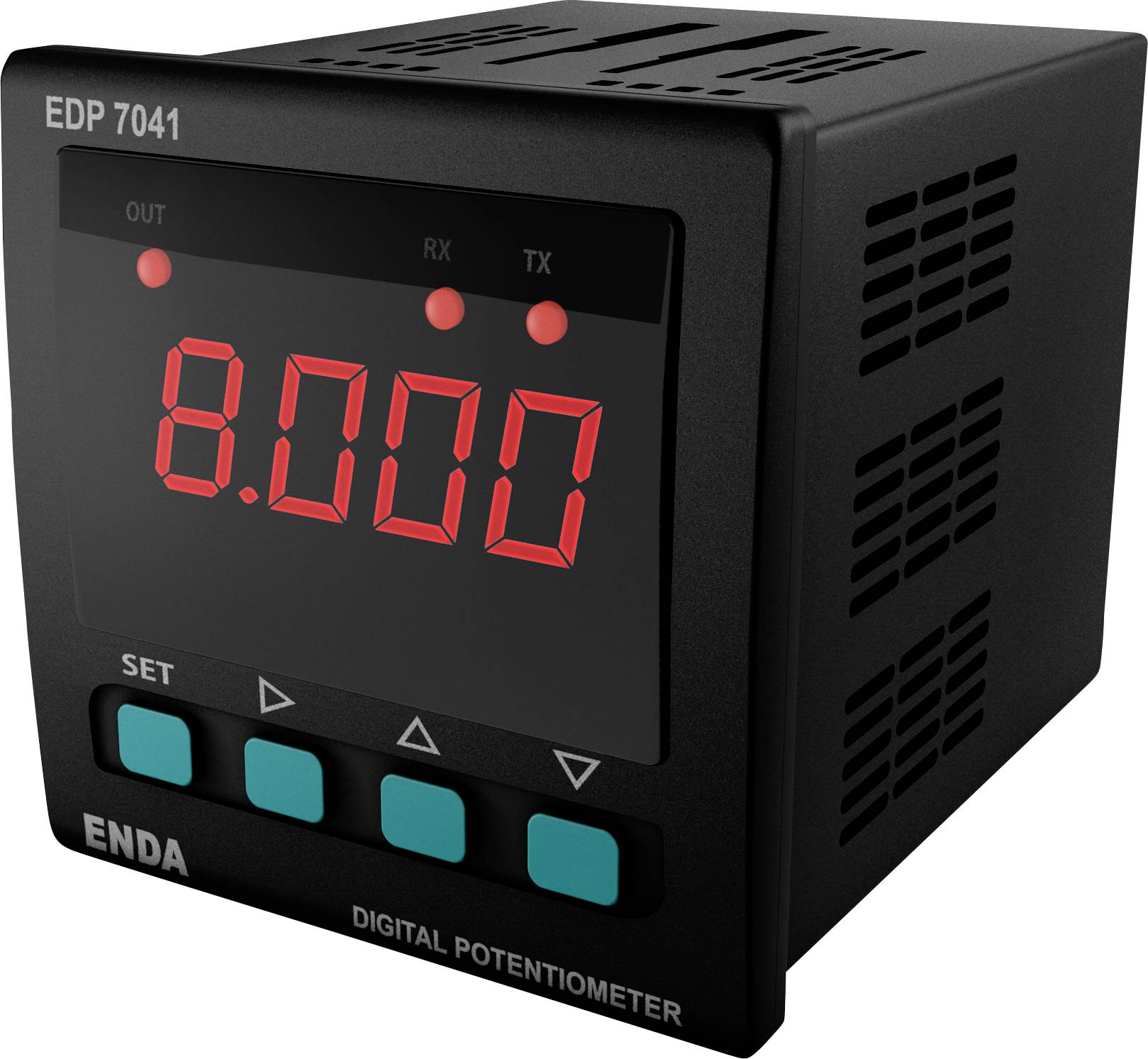

A digital potentiometer displaying '8.000' on an LED screen with control buttons labeled 'SET', and arrow symbols.

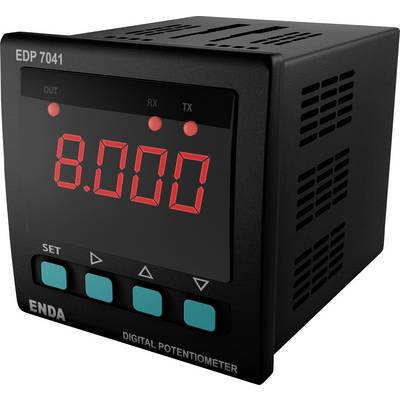

A digital potentiometer displaying '8.000' on an LED screen with control buttons labeled 'SET', and arrow symbols.

Enda

Product type

Digital voltage divider

Thermostat type

Bang-bang

Operating voltage

8 V AC

10 V DC

12 V DC

24 V AC

24 V DC

30 V DC

Max. temperature reading

150 °C

Outputs (thermostats)

Analogue current

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 97.99 / piece)

€ 97.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Digital voltage divider

Type: EDP7041-LV

Thermostat type: Bang-bang

Operating voltage: 8 V AC
10 V DC
12 V DC
24 V AC
24 V DC
30 V DC

Reading range: -60 up to 150 °C

Max. temperature reading: 150 °C

Min. temperature reading: -60 °C

Outputs (thermostats): Analogue current

No. of relay outputs: 1

Outputs: (250 V/AC/8 A)

Dim: (L x W x H) 71 x 70 x 29 mm

Height: 29 mm

Length: 71 mm

Width: 70 mm

: IP65 (when built-in), Back IP20

Manufacturer part #: EDP7041-LV

Recess depth: 97 mm

Sensor type: NTC-Sensor

Weight: 350 g

Digit height: 14.2 mm

Display technology: LED

Display (counts): -1999
9999

Min. operating voltage: 10 V DC
8 V AC

Max. operating voltage: 30 V DC
24 V AC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3637125 Enda Bang-bang Digital voltage divider -60 up to 150 °C Analogue current (L x W x H) 71 x 70 x 29 mm

Description

Digitally adjustable "ON-OFF temperature regulator for heating or cooling applications. Parameters easily set using keys on front (limits, offset, etc.). The actual value is shown by a 4 digit, 7 segment display with sign (if less than 0 °C). The resolution is adjustable to 0.1 ° C or 1 ° C, while the accuracy is 1% of SB.

This text is machine translated.

Scope of delivery

NTC sensor (Ø x L: 6 x 40 mm) incl 1.5 m long connection cable.

Hints

Additional function ET1412: different alarm types (loop, deviation, band alarm) can be set

Description

Digitally adjustable "ON-OFF temperature regulator for heating or cooling applications. Parameters easily set using keys on front (limits, offset, etc.). The actual value is shown by a 4 digit, 7 segment display with sign (if less than 0 °C). The resolution is adjustable to 0.1 ° C or 1 ° C, while the accuracy is 1% of SB.

This text is machine translated.

Scope of delivery

NTC sensor (Ø x L: 6 x 40 mm) incl 1.5 m long connection cable.

Hints

Additional function ET1412: different alarm types (loop, deviation, band alarm) can be set
