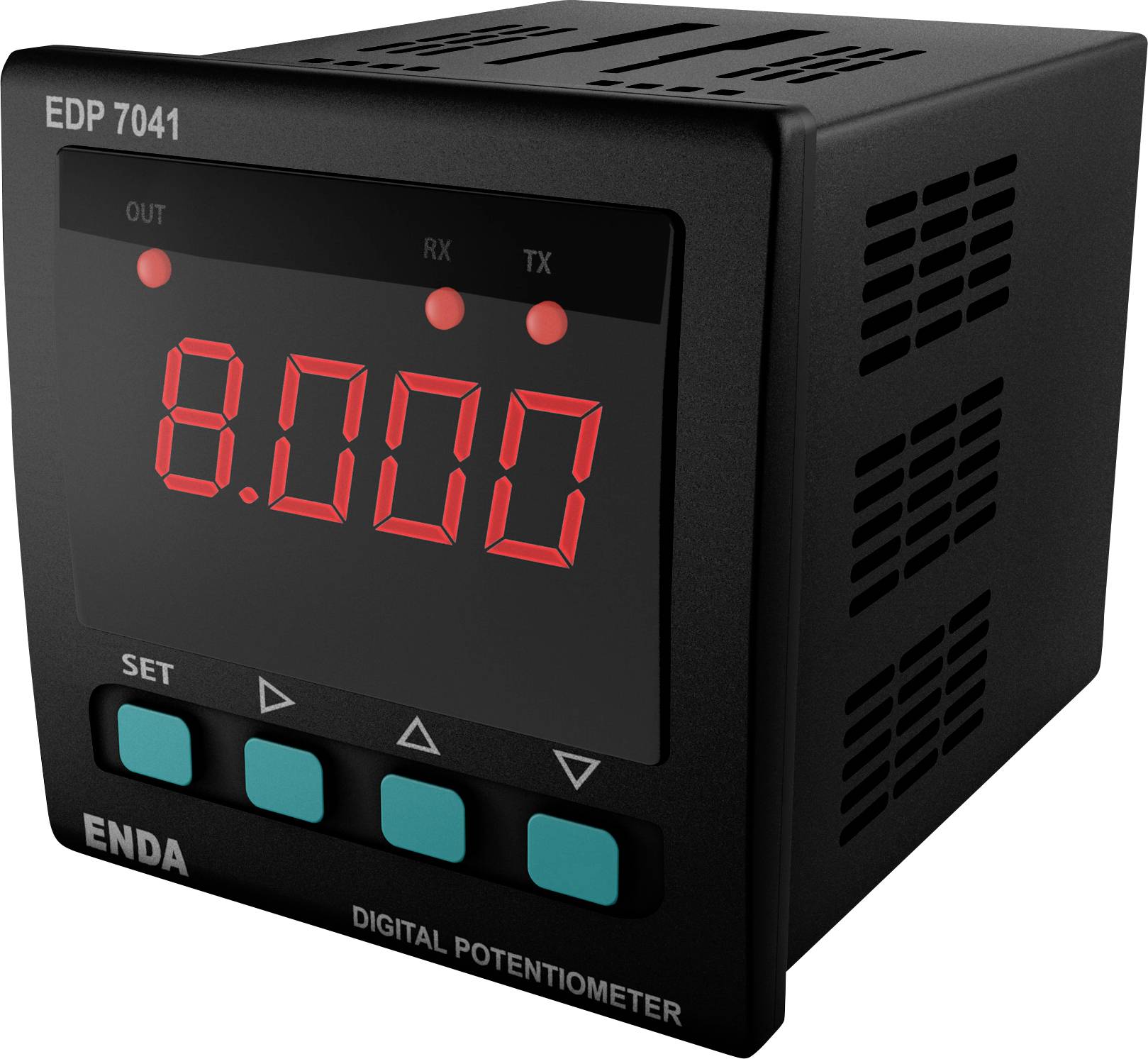

Enda Bang-bang Digital voltage divider -60 up to 150 °C Analogue current (L x W x H) 71 x 70 x 29 mm
EAN:
Part number:
Item no:
Product type
Digital voltage divider
Thermostat type
Bang-bang
Operating voltage
230 V AC
Max. temperature reading
150 °C
Outputs (thermostats)
Analogue current
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
Digital voltage divider
- Type
EDP7041-230
- Thermostat type
Bang-bang
- Operating voltage
230 V AC
- Reading range
-60 up to 150 °C
- Max. temperature reading
150 °C
- Min. temperature reading
-60 °C
- Outputs (thermostats)
Analogue current
- No. of relay outputs
1
- Outputs
(250 V/AC/8 A)
- Dim
(L x W x H) 71 x 70 x 29 mm
- Height
29 mm
- Length
71 mm
- Width
70 mm
IP65 (when built-in), Back IP20
- Manufacturer part #
EDP7041-230
- Recess depth
97 mm
- Sensor type
NTC-Sensor
- Weight
350 g
- Digit height
14.2 mm
- Display technology
LED
- Display (counts)
-1999
9999
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3637126 Enda Bang-bang Digital voltage divider -60 up to 150 °C Analogue current (L x W x H) 71 x 70 x 29 mm
Description
Digitally adjustable "ON-OFF temperature regulator for heating or cooling applications. Parameters easily set using keys on front (limits, offset, etc.). The actual value is shown by a 4 digit, 7 segment display with sign (if less than 0 °C). The resolution is adjustable to 0.1 ° C or 1 ° C, while the accuracy is 1% of SB.
This text is machine translated.
This text is machine translated.
Scope of delivery
- NTC sensor (Ø x L: 6 x 40 mm) incl 1.5 m long connection cable.
Hints
Additional function ET1412: different alarm types (loop, deviation, band alarm) can be set
