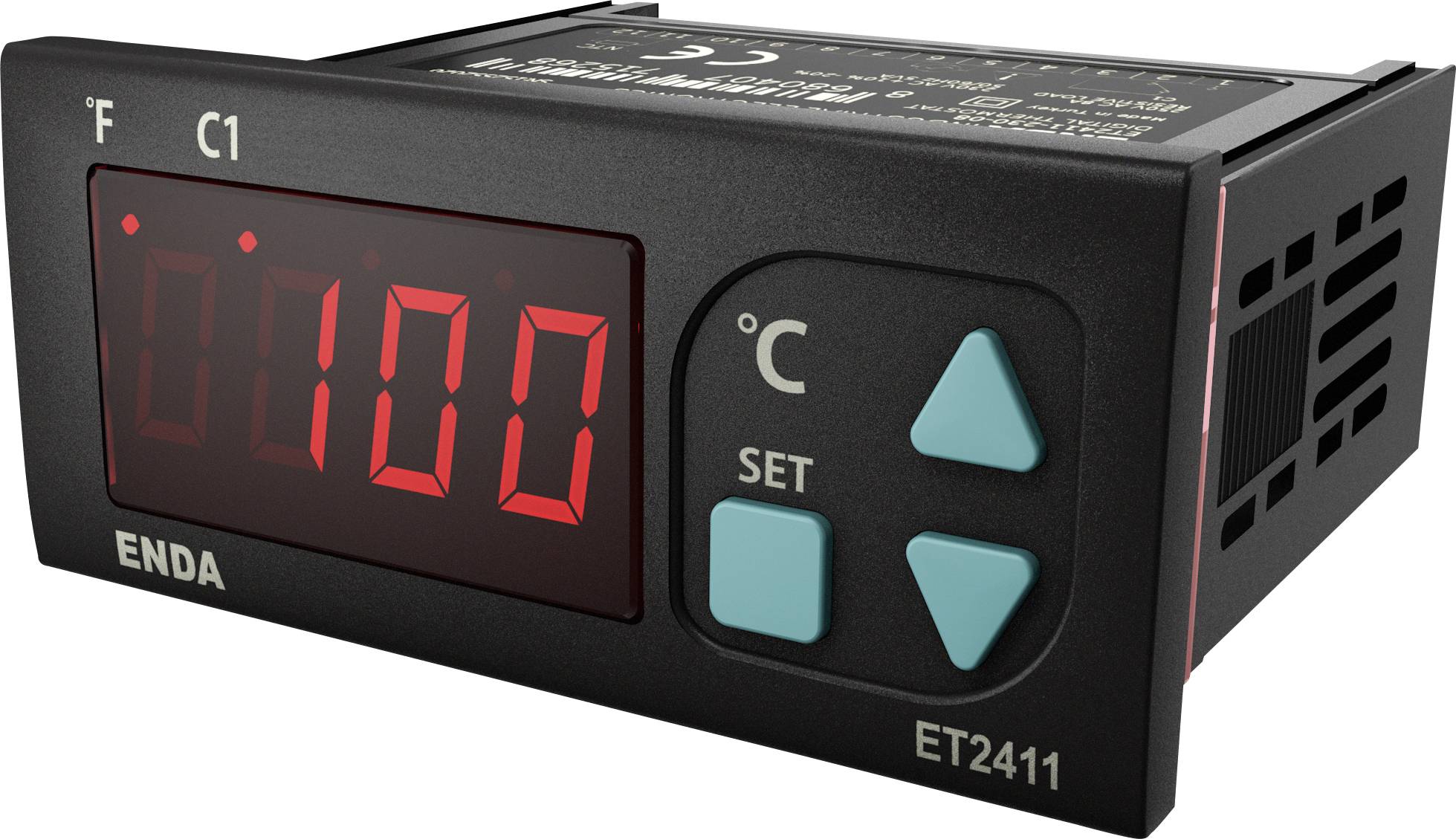

Enda Bang-bang Temperature controller NTC -60 up to 150 °C (L x W x H) 61 x 77 x 35 mm
Product type
Temperature controller
Thermostat type
Bang-bang
Operating voltage
30 V DC
24 V AC
24 V DC
12 V DC
Max. temperature reading
150 °C
No. of relay outputs
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 69.99 / piece)
€ 69.99
incl. VAT
Only 5 Piece(s) available
Highlights & Details
Temperature controller ET1411/1412
- Temperature controller for heating and cooling applications
Technical specifications
- Measuring accuracy: ±1% (scale range) ±1 Digit
- Power consumption: Max. 3VA
- Display: 4-digit, 12.5mm, 7-segment yellow LED
- Product type
Temperature controller
- Type
ET2411-LV-08
- Thermostat type
Bang-bang
- Operating voltage
30 V DC
24 V AC
24 V DC
12 V DC
- Reading range
-60 up to 150 °C
- Max. temperature reading
150 °C
- Min. temperature reading
-60 °C
- No. of relay outputs
1
- Outputs
C1 relay: 250V AC, 8A (resistive load), NO and NC control output. Selectable for heating/cooling process
- Dim
(L x W x H) 61 x 77 x 35 mm
- Factory colour
Black
- Height
35 mm
- Length
61 mm
- Width
77 mm
IP65 (on front)/IP20 (on back)
- Sensor type
NTC
- Manufacturer part #
ET2411-LV-08
- Type
ON-OFF regulation
Offset setting (measuring value correction)
Relay output state can be set in the event of a sensor failure
- Recess depth
61 mm
- Mounting type
Recess-mount
- Assembly dimensions
77x35 mm
- Sensor type
NTC-Sensor
- Weight
200
- Output
250 V/AC/8 A
- Operating voltage
230 V AC
Documents & Downloads
Datasheet
Datasheet 3527763 Enda Bang-bang Temperature controller NTC -60 up to 150 °C (L x W x H) 61 x 77 x 35 mm
User & Safety Instructions
User & Safety Instructions 3527763 Enda Bang-bang Temperature controller NTC -60 up to 150 °C (L x W x H) 61 x 77 x 35 mm
Description
Digital adjustable "ON-OFF temperature control for heating or cooling applications. Easy parameter settings (limit, offset, etc.) via front panel buttons. The actual value is shown by a 4 digit, 7 segment display with sign (if less than 0 °C). The resolution is adjustable to 0.1 ° C or 1 ° C, while the accuracy is 1% of SB.
Features
- Type of control - individual setpoint control
- Control method - On-Off
- A/D converter (12-bit)
- Sampling time - 100 ms
- Hysteresis - Adjustable between 0.1 and 20.0 °C/F
Scope of delivery
- NTC sensor (Ø x L: 6 x 40 mm) incl 1.5 m long connection cable.
Hints
Additional function ET1412: different alarm types (loop, deviation, band alarm) can be set
