Enda Bang-bang Temperature controller NTC -60 up to 150 °C (L x W x H) 68 x 54 x 94 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
Bang-bang
Operating voltage
230 V AC
Max. temperature reading
150 °C
No. of relay outputs
1
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Temperature controller ET1411/1412
- Temperature controller for heating and cooling applications
Technical specifications
- Product type
Temperature controller
- Type
ET5412-230-RS
- Thermostat type
Bang-bang
- Operating voltage
230 V AC
- Reading range
-60 up to 150 °C
- Max. temperature reading
150 °C
- Min. temperature reading
-60 °C
- No. of relay outputs
1
- Outputs
(250 V/AC/8 A)
- Dim
(L x W x H) 68 x 54 x 94 mm
- Height
94 mm
- Length
68 mm
- Width
54 mm
IP65 (on front)/IP20 (on back)
- Sensor type
NTC
- Manufacturer part #
ET5412-230-RS
- Recess depth
68 mm
- Sensor type
NTC-Sensor
- Weight
190 g
- Output
250 V/AC/8 A
- Operating voltage
230 V AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3637118 Enda Bang-bang Temperature controller NTC -60 up to 150 °C (L x W x H) 68 x 54 x 94 mm
Description

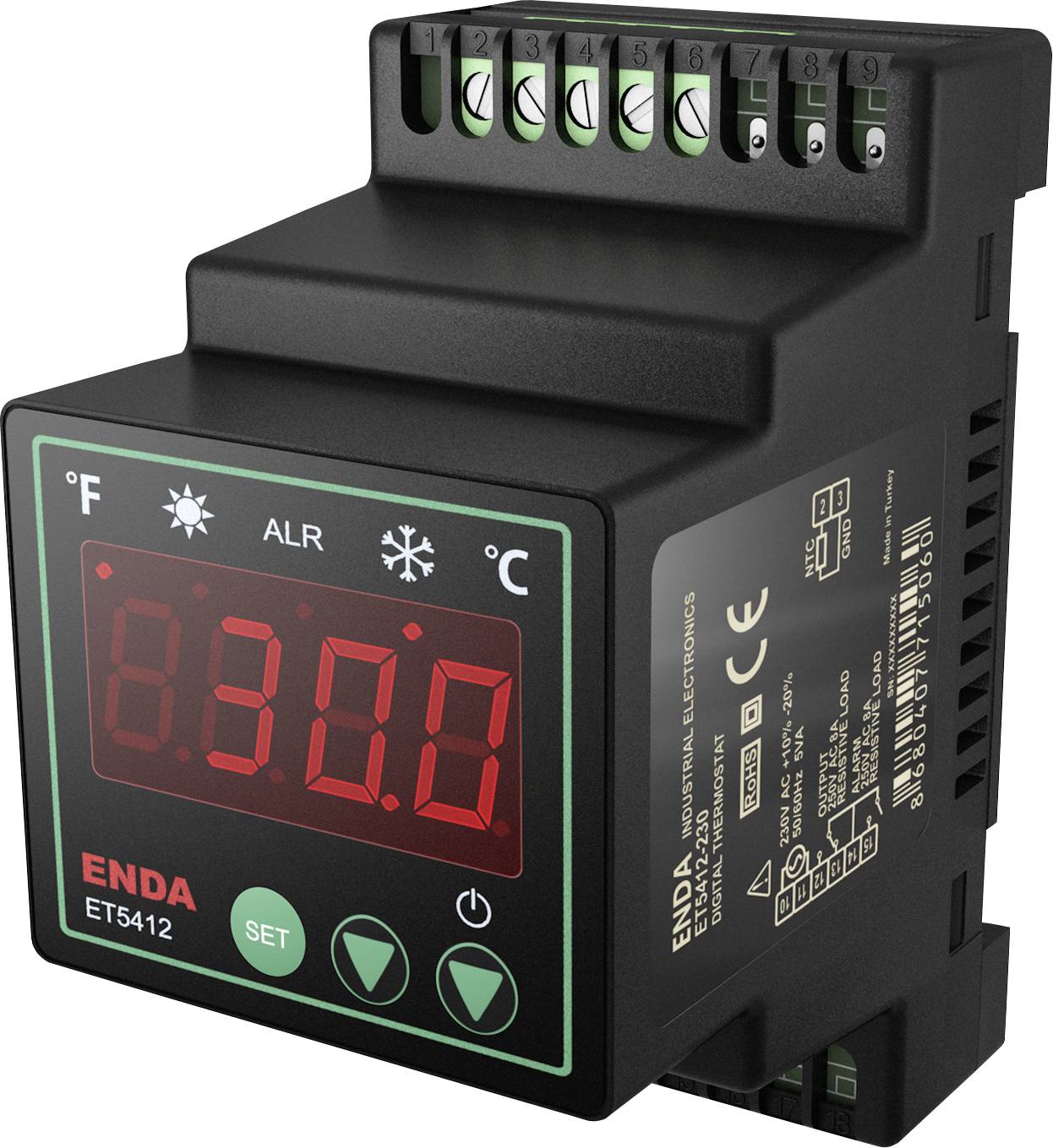

Digital adjustable "ON-OFF temperature control for heating or cooling applications. Easy parameter settings (limit, offset, etc.) via front panel buttons. The actual value is shown by a 4 digit, 7 segment display with sign (if less than 0 °C). The resolution is adjustable to 0.1 ° C or 1 ° C, while the accuracy is 1% of SB.
Scope of delivery
- NTC sensor (Ø x L: 6 x 40 mm) incl 1.5 m long connection cable.
Hints
Additional function ET1412: different alarm types (loop, deviation, band alarm) can be set
