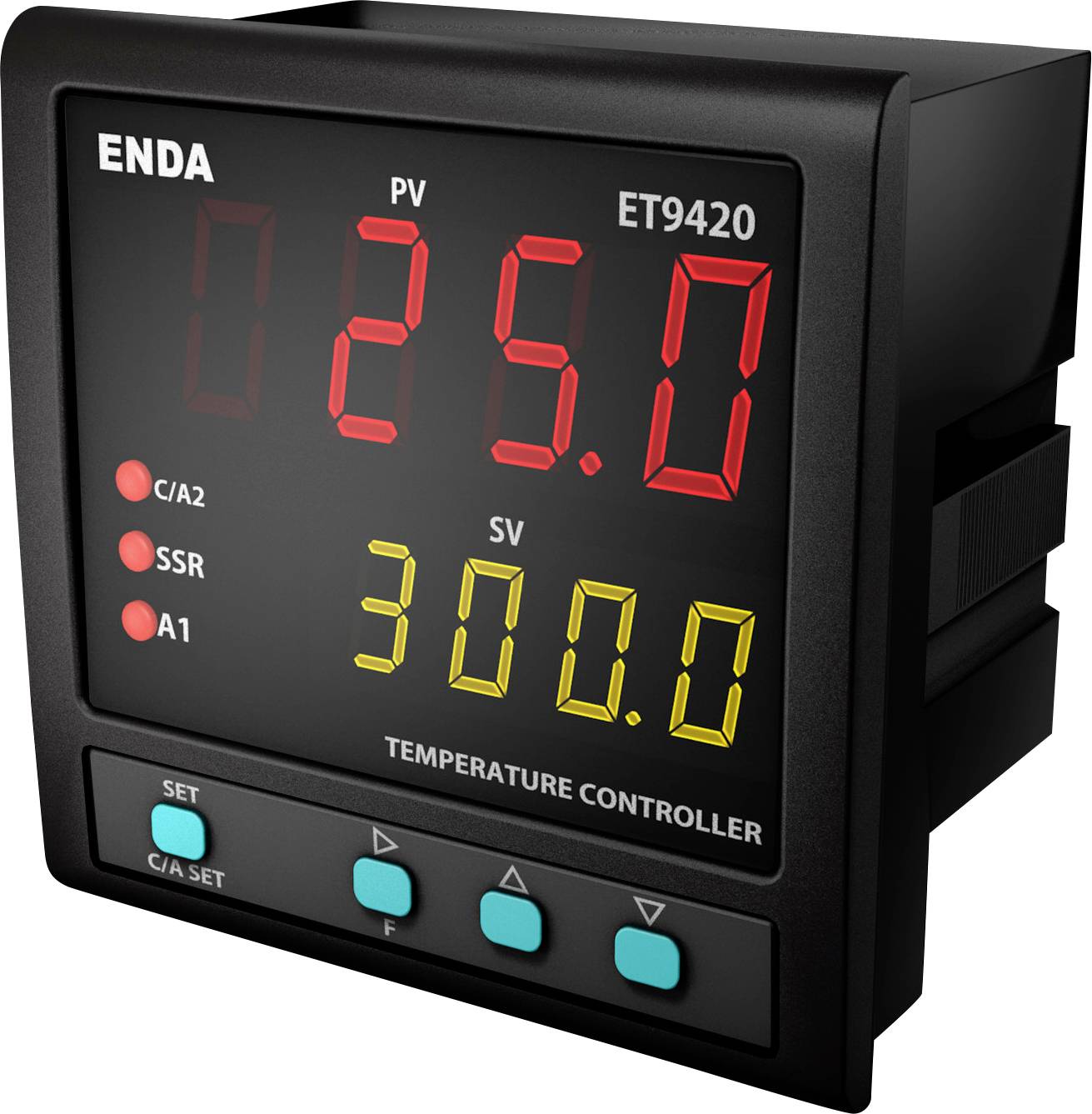

Enda ET9420-230-RS PID Temperature controller Pt100 -200 up to 1600 °C 2 A relay (L x W x H) 96 x 96 x 96 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
PID
Operating voltage
230 V AC
Max. temperature reading
1600 °C
Outputs (thermostats)
2 A relay
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
Temperature controller
- Type
ET9420-230-RS
- Thermostat type
PID
- Operating voltage
230 V AC
- Reading range
-200 up to 1600 °C
- Max. temperature reading
1600 °C
- Min. temperature reading
-200 °C
- Outputs (thermostats)
2 A relay
- No. of relay outputs
4
- No. of transistor outputs
1
- Dim
(L x W x H) 96 x 96 x 96 mm
- Height
96 mm
- Length
96 mm
- Width
96 mm
IP65 (front)
IP20 (back panel)
- Sensor type
Pt100
- Manufacturer part #
ET9420-230-RS
- Recess depth
50 mm
- Mounting type
Recess-mount
- Sensor type
Pt100, J, K, T, S, R
- Weight
400 g
- Operating voltage
230 V/AC 50/60 Hz (+10 up to 20 %)
Documents & Downloads
Datasheet
Datasheet 3637108 Enda ET9420-230-RS PID Temperature controller Pt100 -200 up to 1600 °C 2 A relay (L x W x H) 96 x 96 x 96 mm
User & Safety Instructions
User & Safety Instructions 3637108 Enda ET9420-230-RS PID Temperature controller Pt100 -200 up to 1600 °C 2 A relay (L x W x H) 96 x 96 x 96 mm
Description
PID temperature controller in various DIN installation sizes (48 x 48, 72 x 72, 96 x 96, 96 x 96 mm), type of control choice between "ON-OFF" switching behaviour or PID control with self-optimisation. Simultaneous display of actual value (red 7 segment display and set-value (green or yellow 7 segment display). Soft-start (ramp function) and safety code against unauthorized adjustment of the values set Easy and intuitive operation using horizontal and vertical menu navigation.
Features
- Measuring input for Two / Three ladder circuit PT100 (DIN EN60751) -200 to +600 ° C or -99.9 to +300.0 ° C
- Thermal elements (according to DIN EN60584) 0 to 1600 ° C - Type J, K, T, S, R, accuracy 0.2% of range + 1 digit
- Data backup in EEPROM
- Protection: front IP60
- Rear protection: IP20. Incl. snap-on screw terminals for 2.5mm
- 1 relay contact
- 1 closing contact (switching output 2 A/250 V / AC with resistive load)
- 1 semiconductor output (SSR, max. 12 V / DC / 20mA).
