Name: Enda EU4430-230 PID Universal controller Pt100, J, K, L, T, S, R SSR, 10 A relay (W x H) 48 mm x 48 mm
Brand: Enda
SKU: 2452919
Availability: InStock

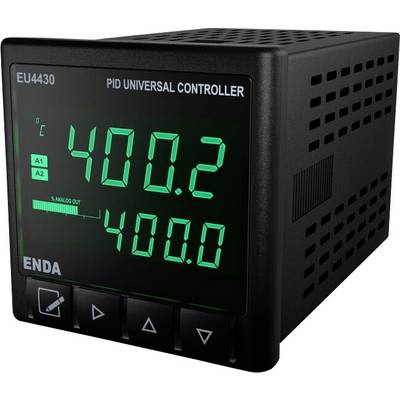

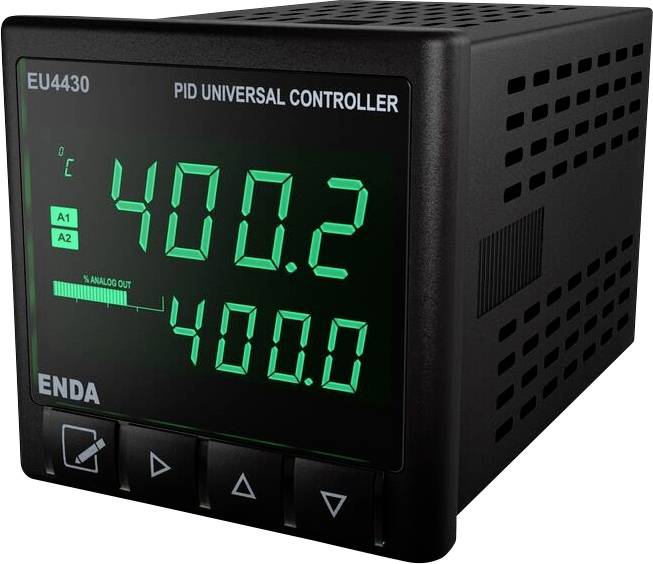

A black ENDA 'EU4430' PID universal controller displays the numbers '400.2' and '400.0' on a green digital display.

Product type

Universal controller

Thermostat type

PID

Operating voltage

230 V AC

Outputs (thermostats)

SSR

10 A relay

No. of relay outputs

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Universal controller

Type: EU4430-230

Thermostat type: PID

Operating voltage: 230 V AC

Outputs (thermostats): SSR
10 A relay

No. of analogue inputs: 1

No. of relay outputs: 2

Dim: (W x H) 48 mm x 48 mm

Height: 48 mm

Width: 48 mm

Sensor type: Pt100
J
K
L
T
S
R

Manufacturer part #: EU4430-230

Recess depth: 87 mm

Mounting type: Recess-mount

Documents & Downloads

Datasheet

Datasheet 2452919 Enda EU4430-230 PID Universal controller Pt100, J, K, L, T, S, R SSR, 10 A relay (W x H) 48 mm x 48 mm

Features

Two target values can be set.
Adjustable as 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV or 0-50mV input.
Measuring input for thermocouples, PT100, J, K, L, T, S, R, current unit signal.
Automatic calculation of PID parameters (SELF TUNE).
Three different functions can be assigned to the F key.
Three different functions can be assigned to the digital input.
Soft start (time specification for setpoint).
Control output selectable relay, analogueue or SSR output.
Analogueue output can be set as 0-20mA, 4-20mA or as SSR output.
C/A2 relay output can be set as alarm or as control output for heating function.
Offset setting for input variable.
Heating or cooling function can be set
Selectable between heating/cooling function
Periodic switching behavior of the relay can be set in case of sensor breakage
Programming via buttons or via Modbus protocol (optional).
This text is machine translated.

Description

Features

Two target values can be set.
Adjustable as 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV or 0-50mV input.
Measuring input for thermocouples, PT100, J, K, L, T, S, R, current unit signal.
Automatic calculation of PID parameters (SELF TUNE).
Three different functions can be assigned to the F key.
Three different functions can be assigned to the digital input.
Soft start (time specification for setpoint).
Control output selectable relay, analogueue or SSR output.
Analogueue output can be set as 0-20mA, 4-20mA or as SSR output.
C/A2 relay output can be set as alarm or as control output for heating function.
Offset setting for input variable.
Heating or cooling function can be set
Selectable between heating/cooling function
Periodic switching behavior of the relay can be set in case of sensor breakage
Programming via buttons or via Modbus protocol (optional).
