Endress+Hauser FMR10B-AAAADTBMWDGWEEB+R7 1 pc(s)

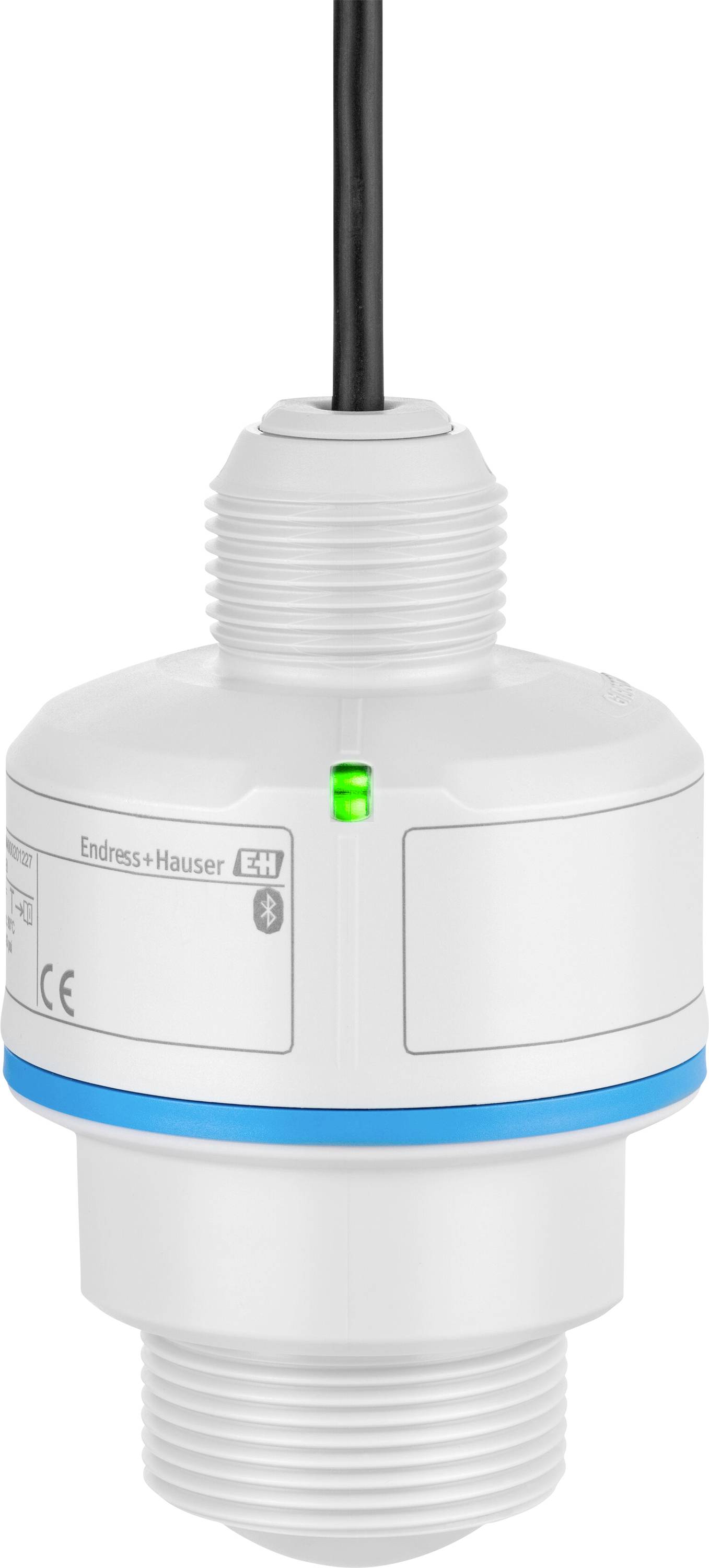

A white Endress+Hauser flow sensor with a blue accent and visible wiring, used for measuring fluid flow in industrial settings.
Type
FMR10B
Content
1 pc(s)
RoHS-compliant
Yes
Datasheet (PDF)
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 765.00 / piece)
€ 765.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Radar level meter FMR10B-AAADTBMWDGWEBR7 LED + Bluetooth 2-conductor 4-20mA thread G1-1/2

  • Rapid and simple installation
  • Compact dimensions
  • Multiple application areas

Technical specifications

  • Display, operation: LED + Bluetooth
  • Output: 2-conductor 4-20mA
  • Process connection antenna end: Thread ISO228 G1-1/2, PVDF
  • Process connection Cable entry: Thread G1 ISO228
  • Cable length 10m/32ft
  • Approval: Ex-free range
  • Antenna: PVDF sealed, 40mm/1-1/2"
Type

FMR10B

Content

1 pc(s)

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 3527302 Endress+Hauser FMR10B-AAAADTBMWDGWEEB+R7 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3527302 Endress+Hauser FMR10B-AAAADTBMWDGWEEB+R7 1 pc(s)

Description

The Micropilot FMR10B is a compact radar sensor for basic applications in all industries. It offers a continuous, contact-free level measurement with 80GHz technology. Guide wizards allow quick and easy installation. The Micropilot FMR10B is the perfect design for applications with limited space.

This text is machine translated.
