Endress+Hauser FMR30B-AABAKABNXQ0XR03 1 pc(s)
Part number:
Item no:
Type
FMR30B
Content
1 pc(s)
RoHS-compliant
Yes
Datasheet (PDF)
Number
Total (€ 1,352.10 / piece)
€ 1,352.10
plus VAT.
Highlights & Details

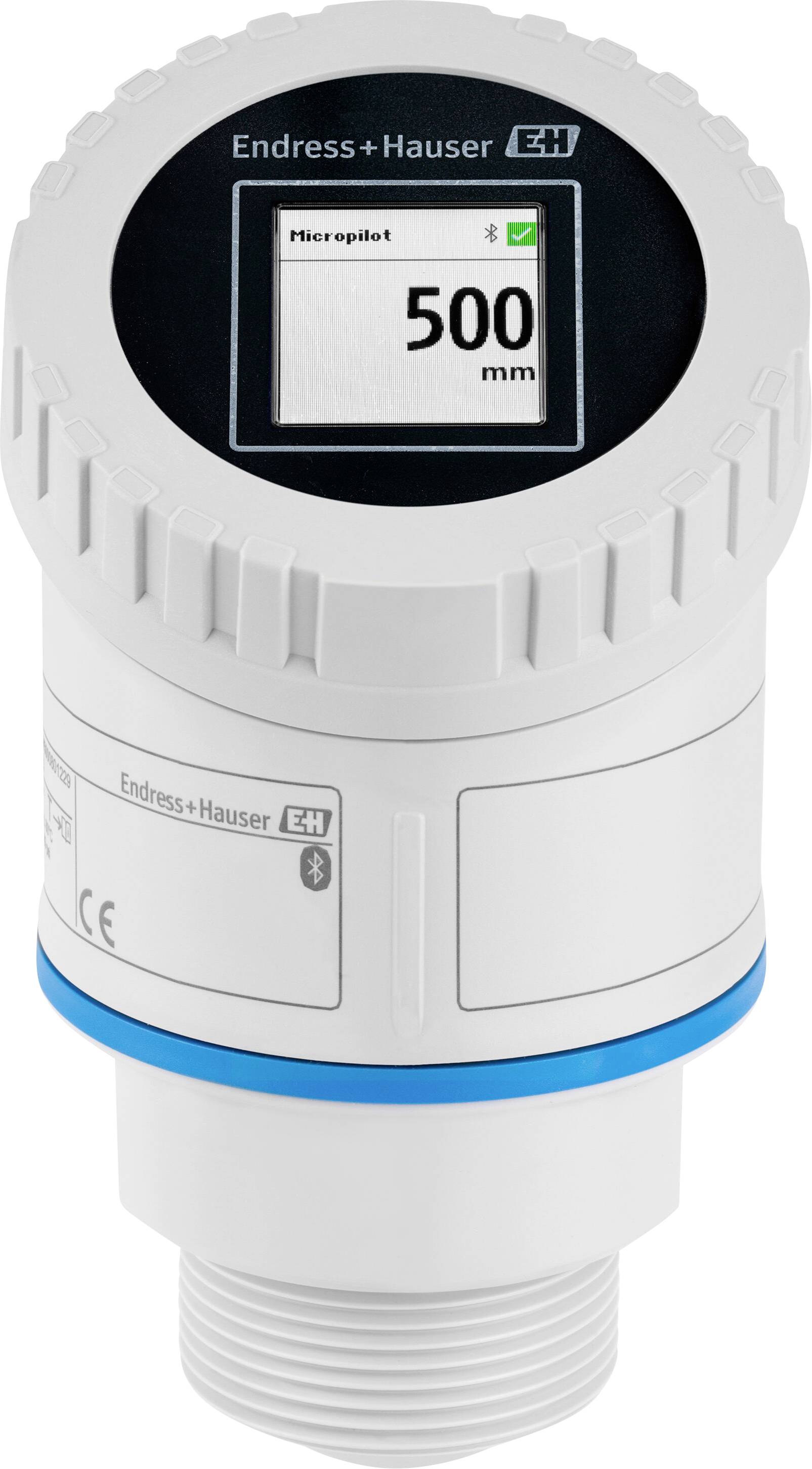

Radar level meter FMR30B-AABAKABNXQ0XR03 Touch Control + Bluetooth 2-conductor 4-20mA HART
- Bluetooth-enabled
- Colour touch display
- Compact dimensions
- Easy setup and start-up
Technical specifications
- Display, operation: Colour display with Touch Control + Bluetooth
- Output: 2-conductor 4-20mA HART
- Process connection Antenna end: Without, prepared for UNI over- > flange accessories
- Process connection Cable entry: Without cable entry, lateral cable entry
- Electrical connection: Screwed gland M20, plastic, IP66/67 NEMA type 4x
- Approval: Ex-free range
- Antenna: PVDF sealed, 80mm/3"
- Type
FMR30B
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3527309 Endress+Hauser FMR30B-AABAKABNXQ0XR03 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527309 Endress+Hauser FMR30B-AABAKABNXQ0XR03 1 pc(s)
Description
The Micropilot FMR30B is a compact radar sensor designed for power supply applications in all industries. It offers a continuous contact-less level measurement with a frequency of 80 GHz. The installation is quick and easy thanks to the simple design and the instructions wizard. The color-touch display enables an easy access to the device diagnosis on the spot, while the remote access via Bluetooth makes this information available everywhere. The FMR30B has a measuring range of up to 30 m and is designed for applications with limited space.
