Name: Endress+Hauser RLN22 RLN22-8M2ALA Isolation amplifier 1 pc(s)
Brand: Endress+Hauser
SKU: 2886359
Availability: BackOrder

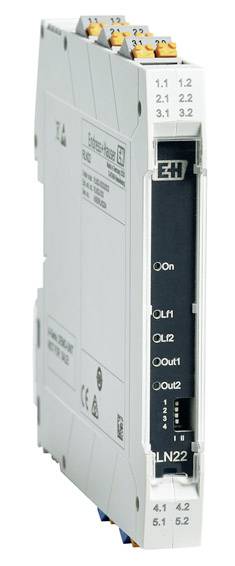

An electronic device with multiple ports and indicator lights, likely a module for industrial applications.

Product type

Isolation amplifier

Type

RLN22

Connection

Screw terminal

Output (current)

Relaissignalausgang

Input signal (current)

binären Schaltsignalen

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Isolation amplifier

Approval: ATEX IECEx II(1)G [Ex ia Ga] IIC, II(1) D [Ex ia Da] IIIC, II3G Ex ec NC IIC GC
Electrical connection: Screw terminals
Channel: 2-channel, closer

Technical specifications

Type: RLN22

Product type: Isolation amplifier

Connection: Screw terminal

Output (current): Relaissignalausgang

Input signal (current): binären Schaltsignalen

Content: 1 pc(s)

Configuration: DIP switch

RoHS-compliant: Yes

Supply voltage (num.): 24 V DC

Operating voltage U(B): 24 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886359 Endress+Hauser RLN22 RLN22-8M2ALA Isolation amplifier 1 pc(s)

Description

The RLN22 is a compact 24 V DC isolation amplifier for transmission of binary switching signals. 1- or 2-channel isolation amplifier with relay signal output, 3-way galvanically isolated. The monitoring of input circuits for line faults such as open-circuit and short-circuit (LFD) of sensors can be switched off. Input for proximity switch according to NAMUR (EN60947-5-6) and open contacts or contacts with ohmic coupling elements. Cable fault monitoring of input circuits or mechanical switch contacts. Output-side relay contacts, direction of effect (working or quiescent current behavior) can be selected via DIP-switch. Group fault reporting via DIN rail bus connector on the power and fault signaling module.

This text is machine translated.
