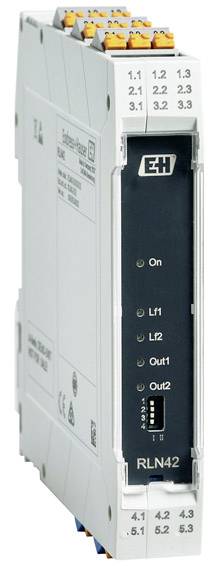

Endress+Hauser RLN42 RLN42-8M2BLA Isolation amplifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolation amplifier
Type
RLN42
Connection
Push-in connector
Input signal (current)
binären Schaltsignalen
Content
1 pc(s)
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
Highlights & Details
Isolation amplifier
- Approval: ATEX IECEx II(1)G [Ex ia Ga] IIC, II(1) D [Ex ia Da] IIIC, II3G Ex ec NC IIC GC
- Electrical connection: Push-in terminals
- Channel: 2-channel, switch contact
Technical specifications
- Type
RLN42
- Product type
Isolation amplifier
- Connection
Push-in connector
- Input signal (current)
binären Schaltsignalen
- Content
1 pc(s)
- Configuration
DIP switch
- RoHS-compliant
Yes
- Supply voltage (num.)
24 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886361 Endress+Hauser RLN42 RLN42-8M2BLA Isolation amplifier 1 pc(s)
User & Safety Instructions 2886361 Endress+Hauser RLN42 RLN42-8M2BLA Isolation amplifier 1 pc(s)
Description
The RLN42 is a two-channel NAMUR isolation amplifier with universal power supply and relay signal output for the transmission of binary switching signals. Galvanic 3-way isolation. The monitoring of the input circuits for cable faults such as cable breakage and short-circuit (LFD) can be switched off. Input for proximity switch according to NAMUR (EN60947-5-6) and potential-free contacts or contacts with resistance switching. Output-side relay contacts can be selected as signal output, effect direction (working current behavior or quiescent current behavior) via DIP-switch.
This text is machine translated.
This text is machine translated.
Features
- Relay contact output
- Compact casing
- Quick and easy wiring
