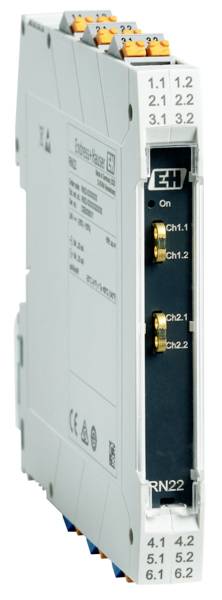

Endress+Hauser RN22 RN22-BE1A Isolation amplifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolation amplifier
Type
RN22
Dim
(L x W x H) 116 x 12.50 x 107.50 mm
Connection
Screw terminal
Output (current)
4-20 mA
Number
Total (€ 194.99 / piece)
€ 194.99
incl. VAT
14-day return policy included
Highlights & Details
Supply isolator / barrier RN22-BE1A ATEX II3D Ex tc IIIC Dc screw terminals 1-channel
- Approval: ATEX II3D Ex tc IIIIC Dc
- Channel: 1-channel
- Electrical connection: Screw terminals
Technical specifications
- Type
RN22
- Product type
Isolation amplifier
- Dim
(L x W x H) 116 x 12.50 x 107.50 mm
- Connection
Screw terminal
- Output (current)
4-20 mA
- Operating voltage
24, 24 - 230, 230 V DC, V AC
- Max. operating voltage
230 V DC
230 V AC
- Min. operating voltage
24 V DC
24 V AC
- Input signal (current)
4 bis 20 mA
- Content
1 pc(s)
- Width
12.50 mm
- Height
107.50 mm
- Length
116 mm
- RoHS-compliant
Yes
- Max. ambient temperature
60 °C
- Min. ambient temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989265 Endress+Hauser RN22 RN22-BE1A Isolation amplifier 1 pc(s)
User & Safety Instructions 2989265 Endress+Hauser RN22 RN22-BE1A Isolation amplifier 1 pc(s)
Description
The RN22 is a 1- or 2-channel active barrier, power supply or signal doubler for safe isolation of 4 to 20 mA standard signal circuits. It supplies safely analog measuring loops and safety-related systems up to SIL 2, SC 3 (according to IEC 61508). The transparent HART® interface device provides a reliable signal connection between field devices and the HER process control system. It offers an interface to 2 or 4-wire devices in hazardous areas of zone 2 and provides a second, galvanically isolated signal output according to NAMUR NE 175. This opens a second channel for process optimization without affecting the traditional automation system.
This text is machine translated.
This text is machine translated.
Features
- Active barrier for secure isolation of standard signal circuits
- Compact casing
- Quick and easy wiring
- Intrinsic safety for operation in hazardous areas (zone 2)
- For safety-related applications up to SIL 2 (SC 3) according to IEC61508 (optional)
