Name: ENTES EPM-04CS-DIN Digital rack-mount meter
Brand: ENTES
SKU: 103275
Availability: BackOrder

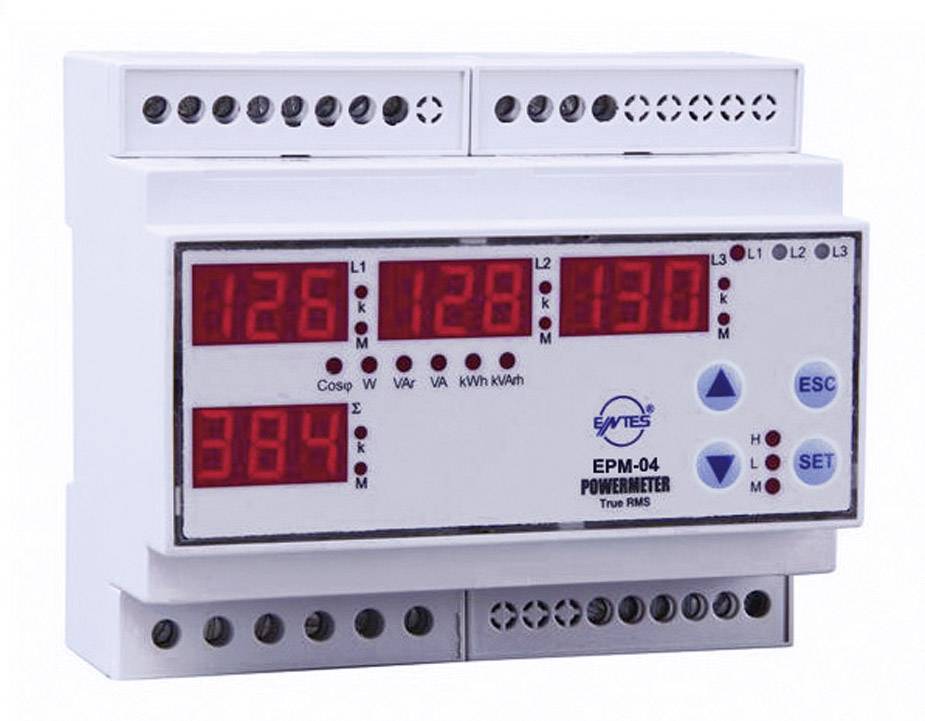

A digital power meter with LED display shows voltage readings of 126, 128 and 130 volts. The device has various adjustment buttons.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 204.99 / piece)

€ 204.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Programmable 3-phase DIN-rail AC-Multimeter EPM-04 CS-DIN

Operating voltage 230 V/AC or 45 - 265 V/AC/DC
Measuring range 10 - 300 V/AC (L-N) and 10 - 500 V/AC (L-L)
3-phase voltage measurement
3-phase current measurement
Frequency measurement.
Neutral current measurement
Demand values
Max./Min. Explanation
Over/Under Voltage Protection
Over and undercurrent protection
Over/underfrequency protection
2 output relays
Hysteresis function
Adjustable limits
RS-485 interface
Password protection

Technical specifications

Product type: Digital rack-mount meter

Reading type: AC voltage
AC current
Frequency
Voltage
Amperage

Reading range (min.): 10 V

Type: EPM-04CS-DIN

Reading range (max.): 500 V

Display technology: LCD

Display (counts): 999

Dim: (W x H x D) 106 x 90 x 58 mm

Weight: 0.52 kg

Display lighting: red

Width: 106 mm

Height: 90 mm

Interfaces: RS485

Digit height: 9.2 mm

Depth: 58 mm

Reading range (min.): 10 V AC
0 A/AC

Documents & Downloads

Datasheet

Datasheet 103275 ENTES EPM-04CS-DIN Digital rack-mount meter

User & Safety Instructions

User & Safety Instructions 103275 ENTES EPM-04CS-DIN Digital rack-mount meter

Description

The multimeter EPM-04 measure phase current, neutral current, voltage (L-L and L-N), frequency and required in adjustable time intervals and save the min and max values. Each phase is indicated on the display displayed individually. The multimeter EPM-04C have in addition to the functions of EPM-04 via adjustable threshold values, as well as two 5A output contacts with adjustable switching delay or immediate triggering. The multimeter EPM-04 CS, in addition to the functions of EPM-04C via an RS485 interface for remote transmission of measurement data. The multimeters of the EPM-06 series are available in addition to the functions of the EPM-04 series via the measurement parameters cos-phi.

This text is machine translated.
