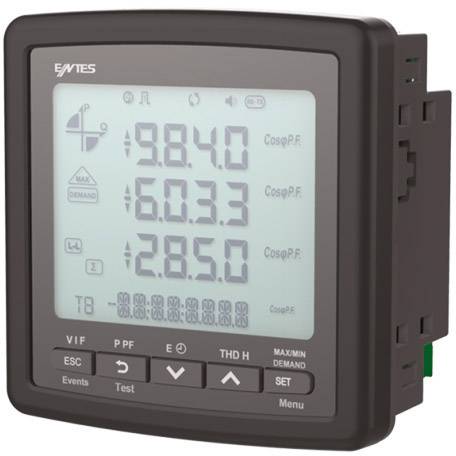

ENTES MPR-45-96 Digital rack-mount meter
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 265.00 / piece)
€ 265.00
incl. VAT
14-day return policy included
Highlights & Details
ENTES MPR-45-96 Multimeter Panel Meter
- 3-phase
- Real-time clock
- Operating hours timer
Technical specifications
- Product type
Digital rack-mount meter
- Reading type
AC voltage
AC current
Power
cos phi
Frequency
Active power
Apparent power
Reactive power
Energy consumption
- Type
MPR-45-96
- Display technology
LCD
IP54
- Display (counts)
9999
- Dim
(W x H) 96 mm x 96 mm
- Max. operating voltage
270 V
- Min. operating voltage
50 V
- Display lighting
white
- Recess depth
45 mm
- Width
96 mm
- Height
96 mm
Documents & Downloads
Datasheet
Datasheet 2102963 ENTES MPR-45-96 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 2102963 ENTES MPR-45-96 Digital rack-mount meter
Description
ENTES MPR panel-mounted multimeter with compact design and 45 mm depth occupy only a small space. The new generation of MPR-4 series built-in multimeters offer a wide range of operating voltages (45-265 VAC/DC). In addition to up to 16 MB of internal memory, they support numerous I/O solutions, which are precisely tailored to the requirements of customers and the application areas, thanks to their structure built on exchangeable modules.
The I/O modules are available as 2 DI (2 digital inputs, 5-24VDC), 2 DO (2 digital outputs, 5-24VDC), 2 relays (2 relays, 5A /250VAC; NO), 2 DI-2 DO (2 digital inputs + 2 digital outputs, 5-24VDC), 2 AO [2 analogue output, (0/2-10V); (0/4-20 mA)], 4 DI-4 DO (4 digital input + 4 digital output 5-24 VDC), temperature measurement (4 therm. + 2 RTD) + (1 digital input – 1 digital output).
This text is machine translated.
The I/O modules are available as 2 DI (2 digital inputs, 5-24VDC), 2 DO (2 digital outputs, 5-24VDC), 2 relays (2 relays, 5A /250VAC; NO), 2 DI-2 DO (2 digital inputs + 2 digital outputs, 5-24VDC), 2 AO [2 analogue output, (0/2-10V); (0/4-20 mA)], 4 DI-4 DO (4 digital input + 4 digital output 5-24 VDC), temperature measurement (4 therm. + 2 RTD) + (1 digital input – 1 digital output).
This text is machine translated.
