Buy akYtec ITP11 Digital rack-mount meter 4 - 20 mA

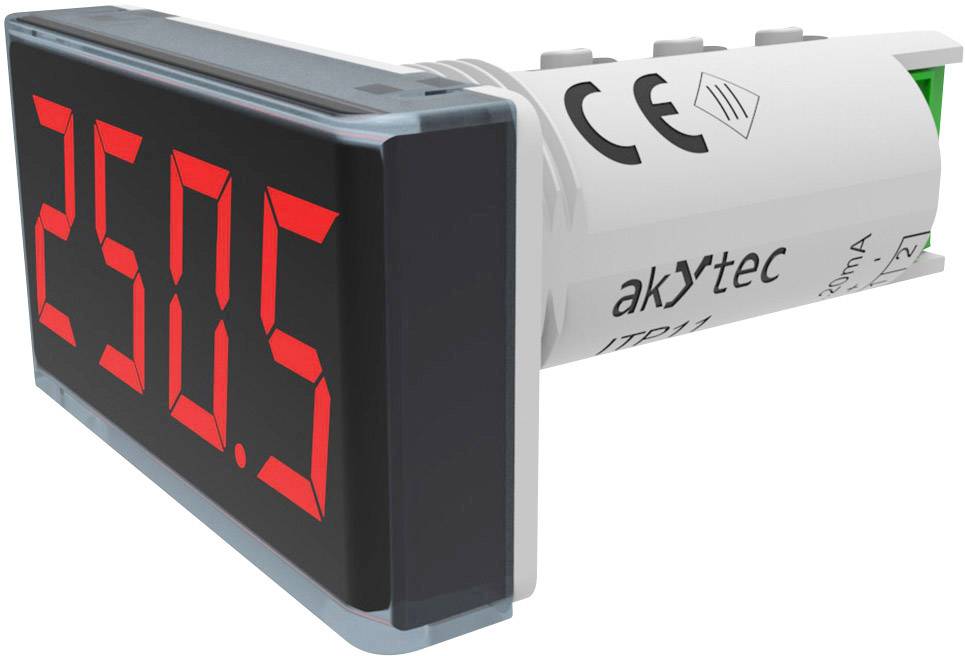

Digital display with red LED indicator showing '250.5'. Measuring instrument in cylindrical form with CE marking.

Pressure transmitter 'akytec ITP11', cylindrical, with green electrical connections on the right side, CE marking visible.

A cylindrical device with a QR code and label 'GET MANUAL'. Green electrical connection terminals are visible.

Red button and digital display showing the number '250.5' on a black background.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

125 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

Report legal concerns

Highlights & Details

Process display ITP11

Measurement and display of the standard signal 4-20mA
Scaling of the measured values
Attenuation of the measuring signal.
Calculation of the square root
Alarm display for values outside the measuring range set
Password protection to prevent unauthorized changes to the settings
Simple hole installation

Technical specifications

Input signal: 4-20mA (2)
Voltage drop: ≤ 4 V
Accuracy: 0.2% + 1 Digit
Operating temperature: -30 to +70 °C

Product type: Digital rack-mount meter

Reading type: DC current

Reading range (min.): 4 mA

Type: ITP11

Reading range (max.): 20 mA

: IP65 (on front)/IP20 (on back)

Display (counts): 9999

Dim: (Ø x H) 22.5 mm x 48 mm

Weight: 30 g

Display lighting: red

Factory colour: Red

Reading category: CAT I

Width: 26 mm

Height: 48 mm

Length: 65 mm

(Ø): 22.5 mm

Interfaces: Current (4 - 20 mA)

Digit height: 14 mm

Display (details): LED, 7-segment display

Reading range: 4 - 20 mA

Documents & Downloads

Datasheet

Datasheet 1231103 akYtec ITP11 Digital rack-mount meter 4 - 20 mA

User & Safety Instructions

User & Safety Instructions 1231103 akYtec ITP11 Digital rack-mount meter 4 - 20 mA

Conformity certificate

Conformity certificate 1231103 akYtec ITP11 Digital rack-mount meter 4 - 20 mA

Description

The ITP11 is a universally usable, microprocessor-controlled display for monitoring industrial processes. The displayed measured values can be scaled and there is also a function to calculate the square root. The ITP11 is for any sensors or transducer with 4-20mA output. It requires no separate auxiliary voltage, but is directly via the measuring power. It convinces by its minimum, standardised dimensions and fits in a 22.5-mm standard opening for signal lamps. These mounting allows a comfortable and quick mounting as well as the accommodation of a variety of displays in a control cabinet door or on a control panel.
