Buy Exact 32441 HSS-E Metal twist drill bit 12.5 mm Total length 151 mm cut, cobalt DIN 338 Cylinder shank 5 pc(s)

Metal drill bits made of steel with a spiral pattern for drilling holes in solid materials.

A drill penetrates a piece of metal, surrounded by metal shavings.

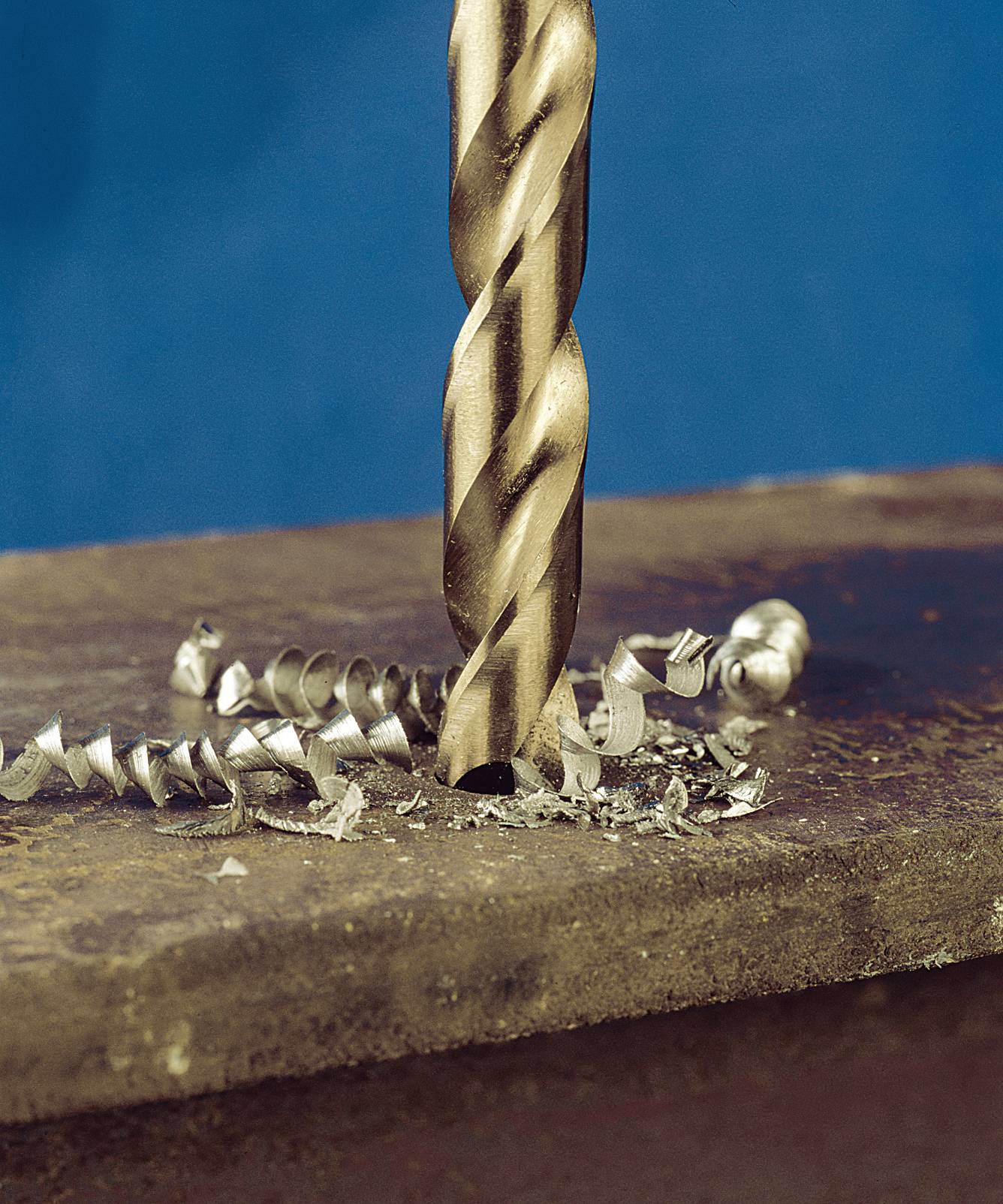

A drill penetrates a metal surface, creating spiral-shaped metal shavings. Background in blue.

1/3

Product type

Metal twist drill bit

Drill hole Ø

12.5 mm

Content

5 pc(s)

Material

HSS-E

Material suitability

Metal

Plastic

Non-ferrous metal

Stainless steel

Dispatches on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 5 pc(s))

Set(s)

Total (€ 73.94 / piece)

€ 73.94

plus VAT.

Report legal concerns

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 12.5 mm

Drill hole Ø tolerance limit: h 8

Tip angle: 130°

Content: 5 pc(s)

Material: HSS-E

Material properties: cut
cobalt

Material suitability: Metal
Plastic
Non-ferrous metal
Stainless steel

Tensile strength (max.): 900 N/mm²

Tool holder: Cylinder shank

Shank Ø: 12.5 mm

Working length: 101 mm

Total length: 151 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1215637 Exact 32441 HSS-E Metal twist drill bit 12.5 mm Total length 151 mm cut, cobalt DIN 338 Cylinder shank 5 pc(s)

Description

Areas of application for legi eret and unalloyed steels (up to 900 N/mm2 strength), hot and cold work steels, remuneration and use steel as well as for rostund acid-resistant steels. The cobalt-Share provides for a higher heat hard resistance. Cone shaped section • spiral angle: 20 - 30°Ø-tolerance h 8 • right-handed cutting · Ausspitzung: from Ø 3.0 mm. Etched to DIN1412 C. Tip angle: 130°. Surface: golden brown properties. As HSS-G plus cobalt alloy.
