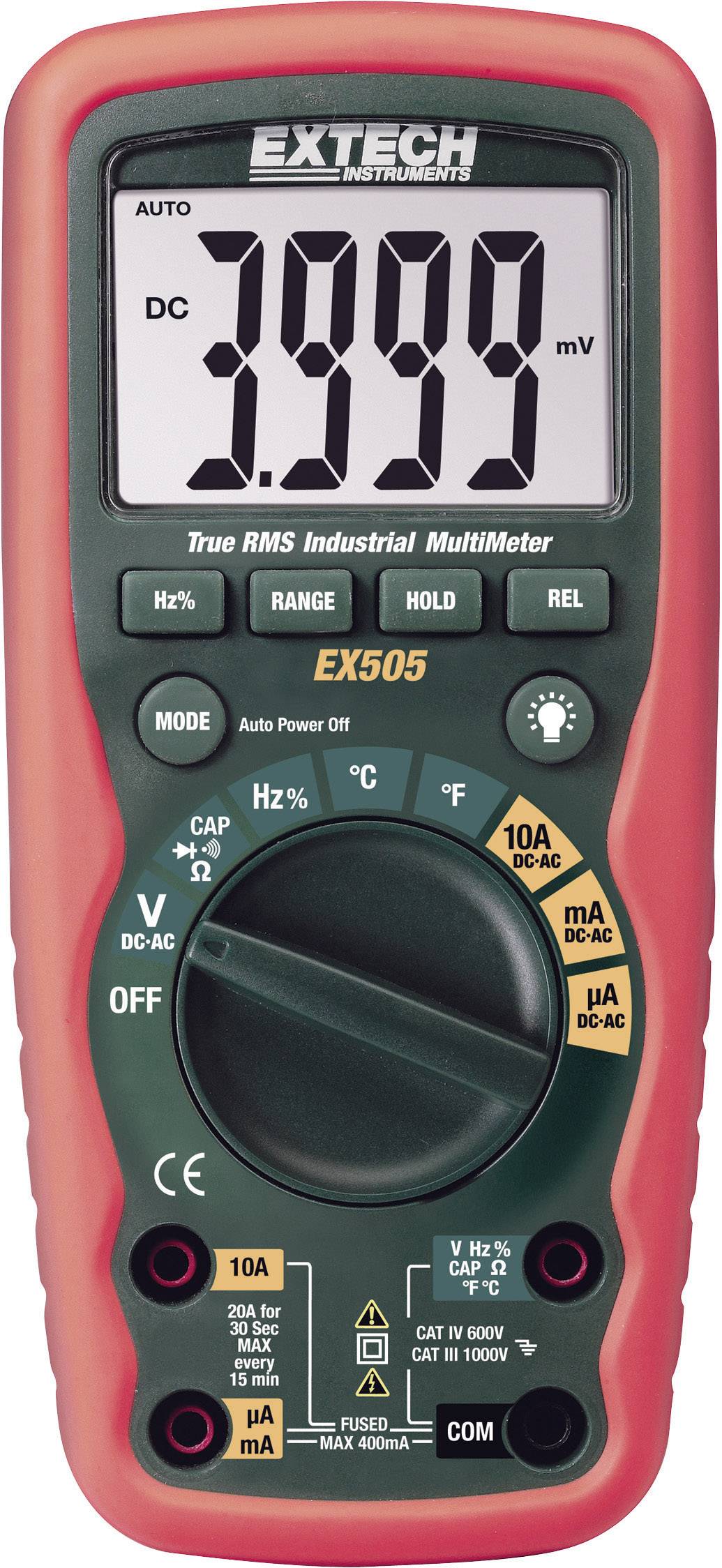

Extech EX505 Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Total (€ 164.99 / piece)
€ 164.99
incl. VAT
14-day return policy included
Highlights & Details
Digital multimeter EX505
- True RMS
- K-type temperature measurement
- Capacitance measurement
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 40 MΩ
- Reading range - capacity
0.01 nF -100 µF
- Frequency reading range
0.001 Hz -10 MHz
- Temperature
-20 to +750 °C
- DC resistance
7.8 MΩ
- AC resistance
7.8 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
40 Hz - 400 Hz Hz
- Interfaces
none
- Power supply (details)
9 V battery pack
- Height
182 mm
- Width
82 mm
- Weight
342 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
EX505
- Display
Digital
- Display (counts)
4000
- Dim
(W x H) 82 mm x 182 mm
- Temperature reading range (max.)
+750 °C
- Temperature reading range (min.)
-20 °C
- Features
Waterproof (IP67)
- Basic accuracy
± 0.5 %
- Displays
4000 counts
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 122936 Extech EX505 Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 4000
Conformity certificate
Conformity certificate 122936 Extech EX505 Handheld multimeter Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 4000
Description
The industrial multimeter EX520 is waterproof (IP67) and due to its housing with moulded soft-rubber protection extremely robust. A fall from two metres doesn't bother this multimeter one bit. The device is ideal for use outdoors and under extreme conditions.
Features
- Standard measurement ranges V, A, O, diode, continuity, hold
- True RMS measurement (TrueRMS)
- Capacitance, frequency, duty cycle measurement
- Automatic range selection (auto range)
- Display lighting
- Temperature measurement with type K probe
- Warning when test leads are incorrectly connected.
Scope of delivery
- Test leads
- Magnetic carrying strap
- Wire temperature sensor (EX-520/530)
- Carrying case
- 1 battery (9 V block)
- Manual.
Hints
Accompanying wire thermo-sensor for -20 to +250 °C
