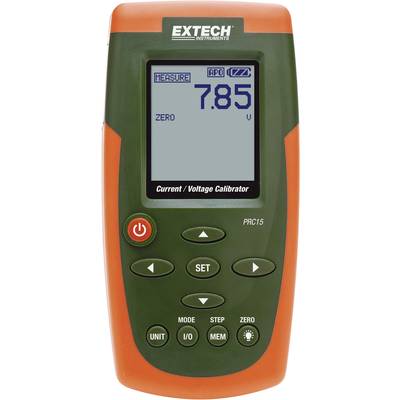

Extech PRC15 Calibrator Voltage, Amperage
EAN:
Part number:
Item no:
Datasheet (PDF)
7 Piece(s)
Sales and shipping:
Number
Total (€ 536.97 / piece)
€
Only 7 Piece(s) available
Highlights & Details
Current and voltage calibrator
- 0 to 24 mA (-25 to 125%) display
- 0 to 20 V DC voltage calibration source
- Up to five customizable settings for the calibration
- Palm-sized, double-shaped housing and a large, digital dot-matrix LCD display with backlight
- I/O ports with standard banana connection
- Large battery compartment for long-term operation
- Adapter for external power supply for continuous operation
Technical specifications
- Power source output 0 to 24 mA for loads of up to 1,000 Ohm (-25% up to 125%); Output 0 to 20 V
- Signal for current measurement 0 to 50 mA (-25 to 230%); 0 to 19.99 V
- Input/output ranges, and view the resolution
- 0 to 19.99 mA 0.01 mA
- 0 to 24.0 mA 0.1Ma
- 0 to 1999 mV 1 mV
- 0 to 20.00 V 10 mV
- Accuracy 0.01% ± 1 point
Manufacturer's standards (no certificate)
- Unit of measurement
Voltage
Amperage
- Power supply
6 x AA battery (included)
PSU (included)
- Product type
Calibrator
Documents & Downloads
Datasheet
Datasheet 1165278 Extech PRC15 Calibrator Voltage, Amperage
User & Safety Instructions
User & Safety Instructions 1165278 Extech PRC15 Calibrator Voltage, Amperage
Description
Precision current/voltage source/measurement calibrator
This text is machine translated.
This text is machine translated.
Scope of delivery
- Test Leads
- Alligator Clips
- Universal power supply with 4 Plugs
- Batteries
- Hard case.
