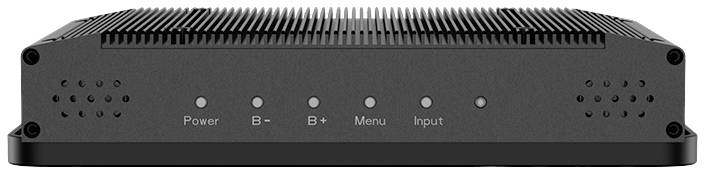

A black amplifier with inscription: 'Power', 'B-', 'B+', 'Menu', 'Input'. Five control lights underneath.

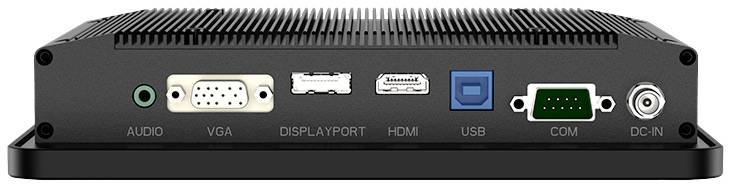

Back of an electronic device with connections: Audio, VGA, DisplayPort, HDMI, USB, COM and power socket (DC IN).

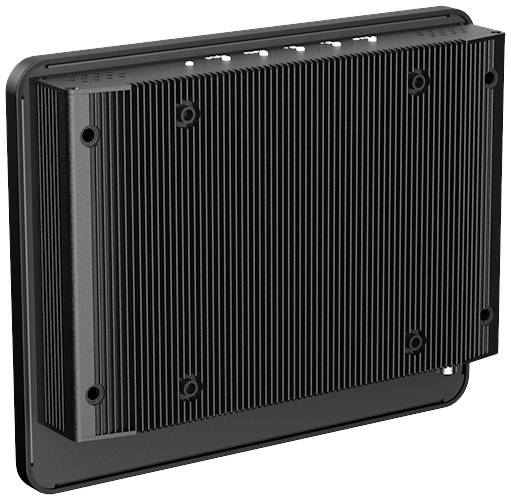

A rectangular, black ribbed metal enclosure of an electronic device, possibly a fanless PC or similar hardware.

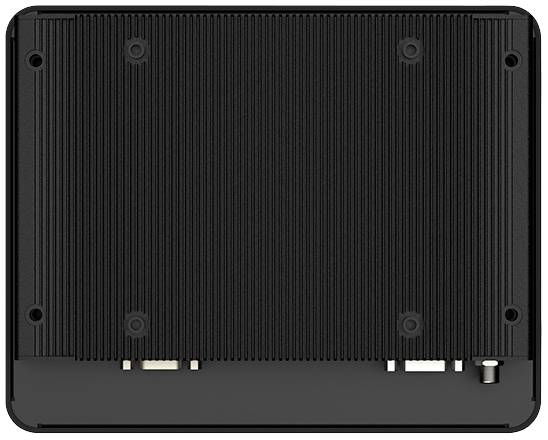

Rear view of an electronic device with a ribbed, black surface and visible ports at the bottom.

1/7

Product data sheet

Datasheet (PDF)

Dispatches on Wed, 16 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 298.32 / piece)

€ 298.32

plus VAT.

Report legal concerns

Highlights & Details

8" capacitive touch monitor

Screen size 20.3 cm (8 inch)
Energy efficiency rating (calc): D (A - G)
Interfaces: Response time: 6 ms;Full HD, Built-in speakers, Touchscreen, IP65 - front side (water- and dust-proof)

Technical specifications

Product type: Touchscreen

Image format: 4:3

Response time: 6 ms

Static contrast ratio: 700 : 1

Brightness: 250 cd/m²

Hor. viewing angle: 150°

Vertical viewing angle: 150°

Wall mounting option: 75 x 75mm VESA standard

Points of contact: 10

Factory colour: Black

Features: Full HD
Built-in speakers
Touchscreen
IP65 - front side (water- and dust-proof)

No. of HDMI ports: 1 x

No. of VGA ports: 1 x

No. of DisplayPort: 1 x

Width: 201 mm

Height: 160.5 mm

Depth: 35.7 mm

Dim: (W x H x D) 201 x 160.5 x 35.7 mm

Weight: 950 g

Display type: LED display

Display size: - 23 inch

: D (A - G)

Screen coating: Anti-glare

Display: 20.3 cm (8 inch)

Curved monitor: No

HDR support: No

Power supply (details): 100-240V ACDC active switching; 12V DC-Out

Touchscreen (display): Yes

Resolution (max.): 1024 x 768 p

Screen resolution: Full HD (1920 x 1080 Pixel)

Display (cm): 20.3 cm

Screen size diagonal (cm): 20.32 cm

Screen size diagonal (inches): 8 inch

Power consumption (ON): 6 W

Documents & Downloads

Datasheet

Datasheet 2534529 Faytech 1010502305 Touchscreen EEC: D (A - G) 20.3 cm (8 inch) 1024 x 768 p 4:3 6 ms

User & Safety Instructions

User & Safety Instructions 2534529 Faytech 1010502305 Touchscreen EEC: D (A - G) 20.3 cm (8 inch) 1024 x 768 p 4:3 6 ms

Description

The capacitive touch monitors from faytech look not only very noble thanks to the edge to edge glass front, but are also protected by IP65. In addition, the entire product line has capacitive 10-finger multi-touch panels, a glass front with a mosh of 7, anti-glare display surfaces (chemically etched) and a variety of connections. The monitors between 13.3" and 27" are supplied with their own stand and VESA 75 / 100 holes on the back for easy mounting. The monitor is equipped with an optically bonded touch panel. This provides for a higher viewing angle stability, fewer reflections, a higher perceived brightness and an increased degree of physical stability. In addition, the touch monitor is protected against condensation and dust formation behind the display glass thanks to bonding technology.These devices are the perfect choice for a variety of applications such as: POS systems, control panels in various areas of industry, kiosk systems, office/home automation, digital signage, and other areas such as shopping malls, classrooms, hotels, and more.

This text is machine translated.

Features

Physical resolution: 1024×768 pxMaximum displayable external resolution - HDMI, DP: 1920×1080 pxAnti-glare display surface (chemically etched)Capacitive 10-finger multi-touch panel1.1mm safety glass with 7H surface hardnessOptically bonded displayPatented IP65 front with silicone protectionBuilt-in speakers (2x2w)
