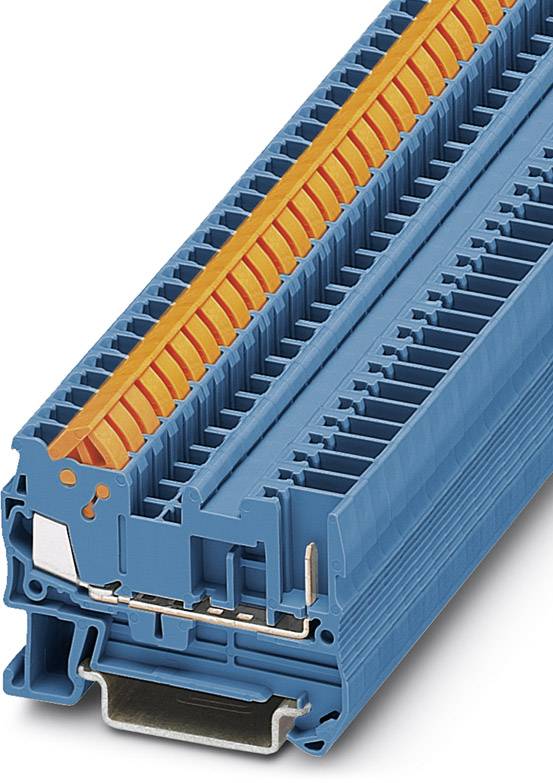

Feed-through terminal block QTC 1,5/ 1P BU 3050086 Phoenix Contact
Packaging type
Piece
Product type
Continuity
Connection
Quick-connect
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 1.56 / piece)
€ 77.99
incl. VAT
Only 1 Set(s) available
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
22
- AWG max.
16
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Manufacturer part #
3050086
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
QTC 1,5/ 1P BU
- Dim
(L x W x H) 53.5 x 5.2 x 39.3 mm
- Width
5.2 mm
- Height
39.3 mm
- Length
53.5 mm
- Flammability rating
V0
- Connector colour
Blue
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718993 Feed-through terminal block QTC 1,5/ 1P BU 3050086 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718993 Feed-through terminal block QTC 1,5/ 1P BU 3050086 Phoenix Contact
Description
Feed-through terminal block, Connection method: Fast/plug-in connection, Cross section: 0.25 mm² - 1.5 mm², AWG: 24 - 16, Width: 5.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
Hints
Special order, no right of withdrawal.
