Image similar

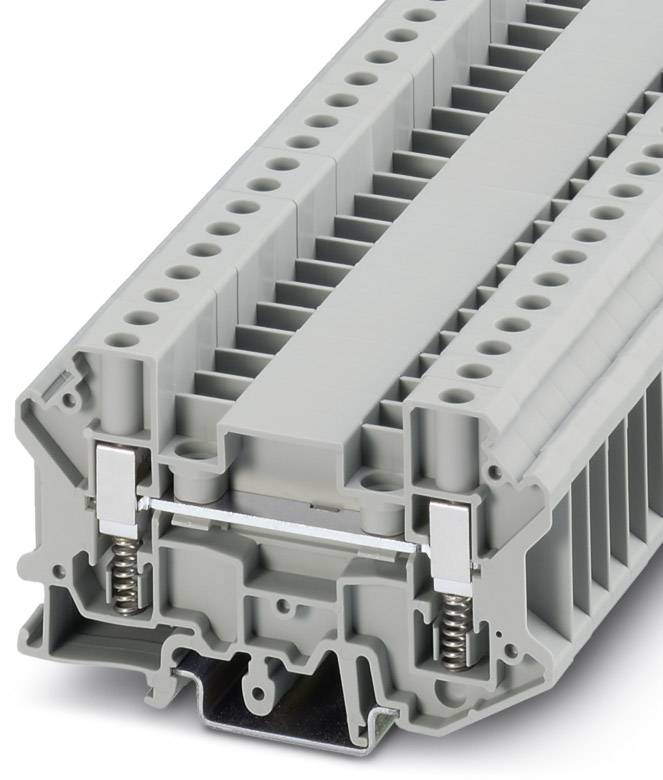

Feed-through terminal block USSTD 6 3070325 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 7.58 / piece)
€ 379.00
incl. VAT
14-day return policy included
Highlights & Details
Feed-through terminal block USSTD 6
- USSTD 6
Technical specifications
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
500 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3070325
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
USSTD 6
- Dim
(L x W x H) 82 x 8.2 x 52 mm
- Width
8.2 mm
- Height
52 mm
- Length
82 mm
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 715352 Feed-through terminal block USSTD 6 3070325 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 715352 Feed-through terminal block USSTD 6 3070325 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection with spring support, Cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, Width: 8.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15, NS 32
