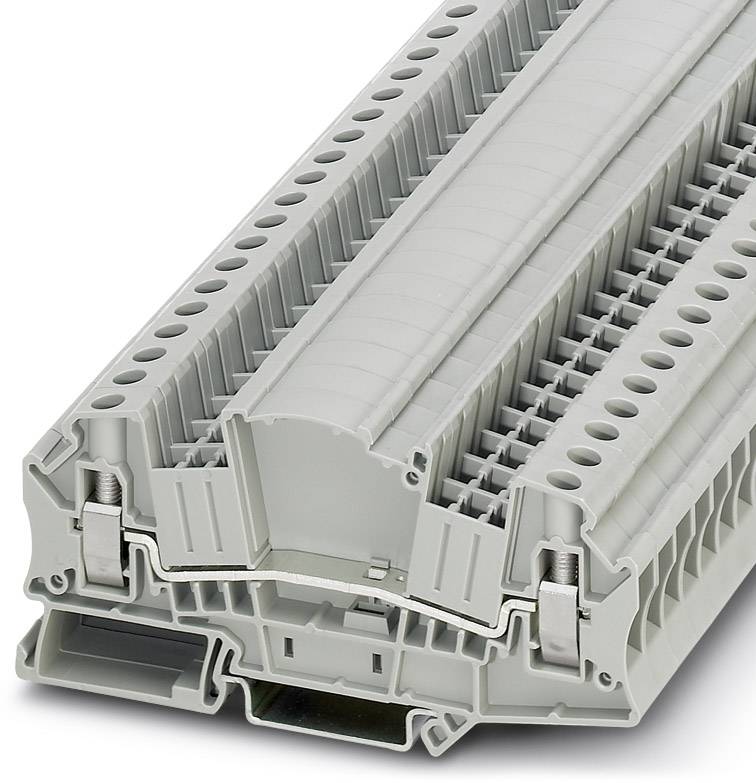

Feed-through terminal block UTMED 6 3047413 Phoenix Contact
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 4.90 / piece)
€ 320.00
-23 %
€ 244.99
incl. VAT
14-day return policy included
Highlights & Details
Feed-through terminal block UTMED 6
- UTMED 6
Technical specifications
- Product type
Continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
8
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
500 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3047413
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UTMED 6
- Dim
(L x W x H) 100.8 x 8.2 x 49.6 mm
- Width
8.2 mm
- Height
49.6 mm
- Length
100.8 mm
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566299 Feed-through terminal block UTMED 6 3047413 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566299 Feed-through terminal block UTMED 6 3047413 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, Width: 8.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
What kind of Serial Terminals are you looking for?

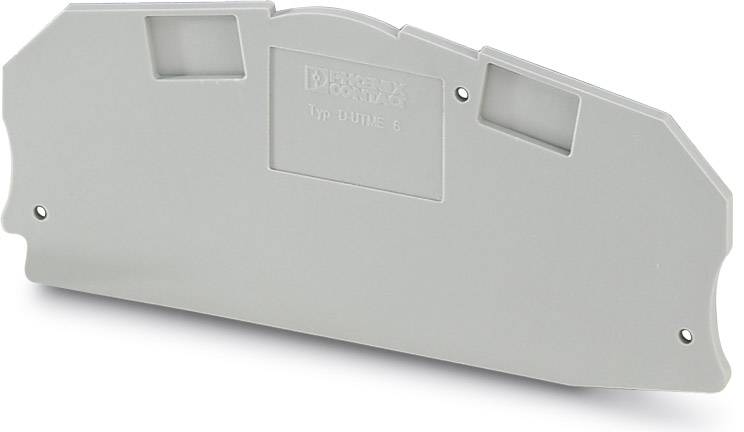

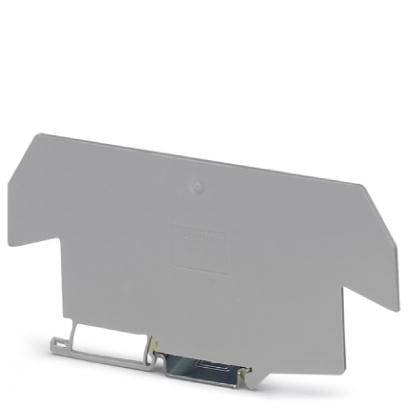

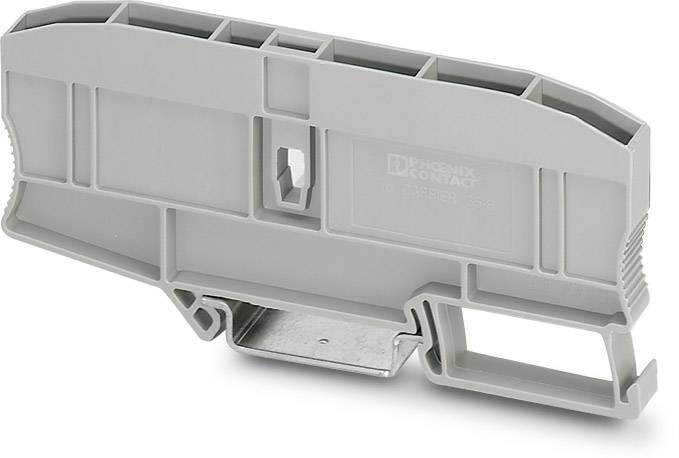

Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
