FESTO 1908312 DSNU-25-10-PPV-A Standard cyclinder Stroke length: 10 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 85.99 / piece)
€ 85.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

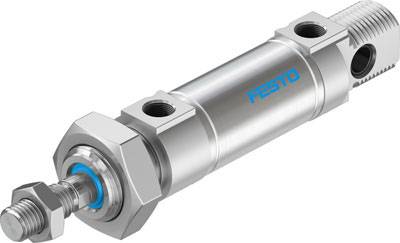

Standard cyclinder DSNU-25-10-PPV-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Standard cyclinder
- Stroke length
10 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
25 mm
- Manufacturer part #
1908312
- Type
Mounting type: with accessories
- Weight
238 g
- Size
25
- Sealant
NBR
TPE-U
- Pneumatics connector
G1/8"
- Piston diameter
25 mm
- Piston rod material
Steel
- Piston rod thread
M10 x 1.25
- Force (max.)
294.5 N
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1944185 FESTO 1908312 DSNU-25-10-PPV-A Standard cyclinder Stroke length: 10 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1944185 FESTO 1908312 DSNU-25-10-PPV-A Standard cyclinder Stroke length: 10 mm 1 pc(s)
