Name: FESTO 2536748 DSBG-160-40-P-N3 Standard cyclinder Stroke length: 40 mm 1 pc(s)
Brand: FESTO
SKU: 2123559
Availability: BackOrder

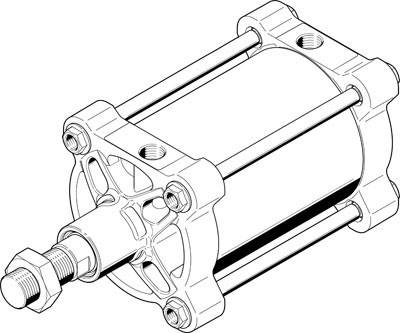

A technical diagram of a cylinder with screws and connecting rods, showing construction details and mechanical connections.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 865.00 / piece)

€ 865.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Pneumatic connection: G3/4
All mounting positions permitted

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Standard cyclinder

Stroke length: 40 mm

Min. operating pressure: 0.6 bar

Max. operating pressure: 10 bar

(Ø): 160 mm

Manufacturer part #: 2536748

Size: 160

Sealant: NBR

Piston diameter: 160 mm

Piston rod thread: M36 x 2

Standard: ISO 15552

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Manufacturer part #

Product type

Stroke length

Max. operating pressure

FESTO 1366949 DSBC-50-40-PPVA-N3 Standard cyclinder Stroke length: 40 mm 1 pc(s)

Item no:1944083

Dispatches on Tue 10 Nov

Conrad Electronic

1366949

Standard cyclinder

40 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

FESTO 1366951 DSBC-50-80-PPVA-N3 Round cylinder Enclosure material: Aluminium (die-cast) Stroke length: 80 mm 1 pc(s)

Item no:1893652

Dispatches on Tue 10 Nov

Conrad Electronic

1366951

Round cylinder

80 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

FESTO 1366953 DSBC-50-125-PPVA-N3 Round cylinder Enclosure material: Aluminium (die-cast) Stroke length: 125 mm 1 pc(s)

Item no:1893654

Dispatches on Tue 10 Nov

Conrad Electronic

1366953

Round cylinder

125 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

FESTO 1366956 DSBC-50-250-PPVA-N3 Standard cyclinder Stroke length: 250 mm 1 pc(s)

Item no:1944084

Dispatches on Tue 10 Nov

Conrad Electronic

1366956

Standard cyclinder

250 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

FESTO 1366957 DSBC-50-320-PPVA-N3 Standard cyclinder Stroke length: 320 mm 1 pc(s)

Item no:1944085

Dispatches on Tue 10 Nov

Conrad Electronic

1366957

Standard cyclinder

320 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 239.99^*

FESTO 1366958 DSBC-50-400-PPVA-N3 Standard cyclinder Stroke length: 400 mm 1 pc(s)

Item no:1944086

Dispatches on Tue 10 Nov

Conrad Electronic

1366958

Standard cyclinder

400 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

FESTO 1366959 DSBC-50-500-PPVA-N3 Standard cyclinder Stroke length: 500 mm 1 pc(s)

Item no:1944087

Dispatches on Tue 10 Nov

Conrad Electronic

1366959

Standard cyclinder

500 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

FESTO 1376304 DSBC-50-40-PPSA-N3 Standard cyclinder Stroke length: 40 mm 1 pc(s)

Item no:1944088

Dispatches on Tue 10 Nov

Conrad Electronic

1376304

Standard cyclinder

40 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 199.99^*

FESTO 1376309 DSBC-50-160-PPSA-N3 Round cylinder Enclosure material: Aluminium (die-cast) Stroke length: 160 mm 1 pc(s)

Item no:1893662

Dispatches on Tue 10 Nov

Conrad Electronic

1376309

Round cylinder

160 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

FESTO 1376312 DSBC-50-320-PPSA-N3 Standard cyclinder Stroke length: 320 mm 1 pc(s)

Item no:1944090

Dispatches on Tue 10 Nov

Conrad Electronic

1376312

Standard cyclinder

320 mm

12 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Documents & Downloads

Datasheet

Datasheet 2123559 FESTO 2536748 DSBG-160-40-P-N3 Standard cyclinder Stroke length: 40 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2123559 FESTO 2536748 DSBG-160-40-P-N3 Standard cyclinder Stroke length: 40 mm 1 pc(s)

Description

Standard cylinder DSBG -160-40-P-N3 Hub = 40 mm, piston diameter = 160 mm, Piston Rod Thread = M36 x 2, dampening = P: elastic damping rings/plates on both sides, mounting position=any
