FESTO 536205 ADN-12-10-A-P-A Compact cylinder Stroke length: 10 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 59.99 / piece)
€ 59.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

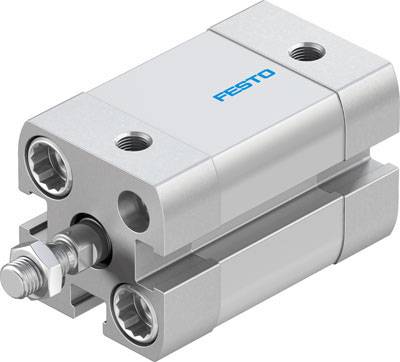

Compact cylinder ADN-12-10-A-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
10 mm
- Max. operating pressure
10 bar
- Manufacturer part #
536205
- Type
Compact cylinder ADN-12-10-A-P-A for position detection, with external thread on the piston rod. Hub = 10 mm, piston diameter = 12 mm, Piston Rod Thread = M5, dampening = P: elastic damping rings/plates on both sides, mounting position=any
- Sealant
TPE-U
- Pneumatics connector
M5
- Piston rod material
Steel (stainless)
- Piston rod diameter
12 mm
- Force (max.)
68 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1939487 FESTO 536205 ADN-12-10-A-P-A Compact cylinder Stroke length: 10 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1939487 FESTO 536205 ADN-12-10-A-P-A Compact cylinder Stroke length: 10 mm 1 pc(s)
