Name: FESTO 536208 ADN-12-25-A-P-A Compact cylinder Stroke length: 25 mm 1 pc(s)
Brand: FESTO
SKU: 1939490
Availability: BackOrder

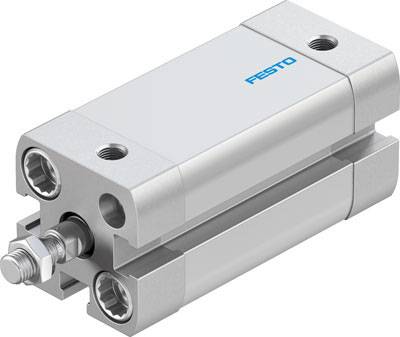

A silver pneumatic cylinder from Festo, with two side ports and a threaded bolt at the front.

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Compact cylinder ADN-12-25-A-P-A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Compact cylinder

Stroke length: 25 mm

Max. operating pressure: 10 bar

Manufacturer part #: 536208

Type: Compact cylinder ADN -12-25-A-P-A for position detection, with external thread on the piston rod. Hub = 25 mm, piston diameter = 12 mm, Piston Rod Thread = M5, dampening = P: elastic damping rings/plates on both sides, mounting position=any

Size: 12

Sealant: TPE-U

Pneumatics connector: M5

Piston rod material: Steel (stainless)

Piston rod diameter: 12 mm

Force (max.): 68 N

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

UKCA: not relevant
