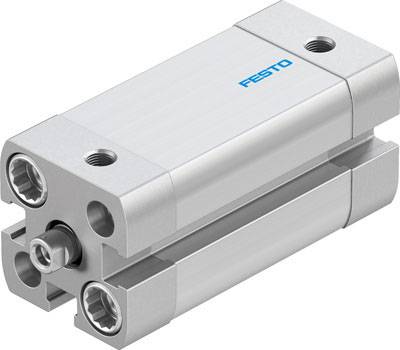

FESTO 536215 ADN-12-25-I-P-A Compact cylinder Stroke length: 25 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 61.99 / piece)
€ 61.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Compact cylinder ADN-12-25-I-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
25 mm
- Max. operating pressure
10 bar
- Manufacturer part #
536215
- Type
Compact cylinder ADN -12-25-I-P-A for position detection, with internal thread on the piston rod. Hub = 25 mm, piston diameter = 12 mm, Piston Rod Thread=M3: elastic damping rings, damping=P/plates on both sides, mounting position=any
- Size
12
- Sealant
TPE-U
- Pneumatics connector
M5
- Piston rod material
Steel (stainless)
- Piston rod diameter
12 mm
- Force (max.)
68 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
not relevant
