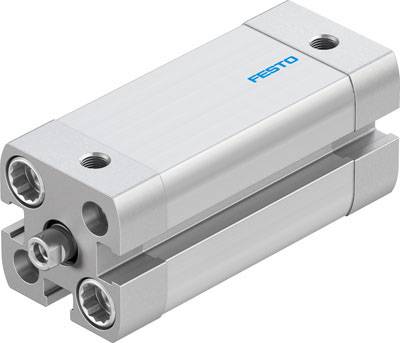

Name: FESTO 536216 ADN-12-30-I-P-A Compact cylinder Stroke length: 30 mm 1 pc(s)
Brand: FESTO
SKU: 1939498
Availability: BackOrder

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Compact cylinder ADN-12-30-I-P-A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Compact cylinder

Stroke length: 30 mm

Max. operating pressure: 10 bar

Manufacturer part #: 536216

Type: Compact cylinder ADN -12-30-I-P-A for position detection, with internal thread on the piston rod. Hub = 30 mm, piston diameter = 12 mm, Piston Rod Thread=M3: elastic damping rings, damping=P/plates on both sides, mounting position=any

Size: 12

Sealant: TPE-U

Pneumatics connector: M5

Piston rod material: Steel (stainless)

Piston rod diameter: 12 mm

Force (max.): 68 N

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

UKCA: yes
