Name: FESTO 536299 ADN-40-5-I-P-A Compact cylinder Stroke length: 5 mm 1 pc(s)
Brand: FESTO
SKU: 1939576
Availability: BackOrder

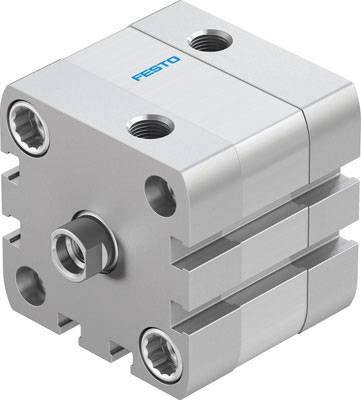

A silver pneumatic cylinder from Festo with multiple ports and a compact, rectangular design.

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Compact cylinder ADN-40-5-I-P-A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Compact cylinder

Stroke length: 5 mm

Max. operating pressure: 10 bar

Manufacturer part #: 536299

Type: Compact cylinder ADN -40-5-I-P-A in accordance with ISO 21287, for position detection, with internal thread on the piston rod. Hub = 5 mm, piston diameter = 40 mm, Piston Rod Thread = M8, dampening = P: elastic damping rings/plates on both sides, mounting position=any

Size: 40

Sealant: TPE-U

Pneumatics connector: G1/8"

Piston rod material: Steel (stainless)

Piston rod diameter: 40 mm

Force (max.): 754 N

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

UKCA: not relevant
