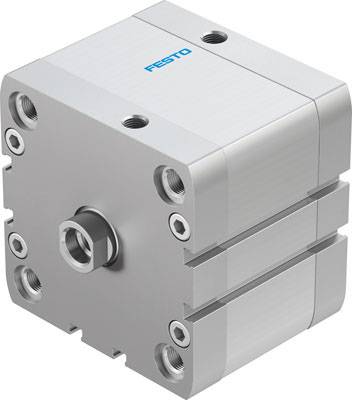

Name: FESTO 536366 ADN-80-25-I-P-A Compact cylinder Enclosure material: Aluminium Stroke length: 25 mm 1 pc(s)
Brand: FESTO
SKU: 1939640
Availability: BackOrder

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Compact cylinder ADN-80-25-I-P-A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Compact cylinder

Stroke length: 25 mm

Max. operating pressure: 10 bar

Manufacturer part #: 536366

Type: Compact cylinder ADN -80-25-I-P-A in accordance with ISO 21287, for position detection, with internal thread on the piston rod. Hub = 25 mm, piston diameter = 80 mm, Piston Rod Thread = M12, dampening = P: elastic damping rings/plates on both sides, mounting position=any

Size: 80

Operating medium: ISO 8573-1:2010 [7:-:-] compliance

Sealant: TPE-U

Pneumatics connector: G1/8"

Enclosure material: Aluminium

Piston rod material: Steel (stainless)

Piston rod diameter: 80 mm

Piston rod thread: M12

Force (max.): 3016 N

Standard: ISO 21287

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

Operating principle: Double-acting

UKCA: not relevant
