Name: FESTO 536378 ADN-100-30-A-P-A Compact cylinder Stroke length: 30 mm 1 pc(s)
Brand: FESTO
SKU: 1939651
Availability: BackOrder

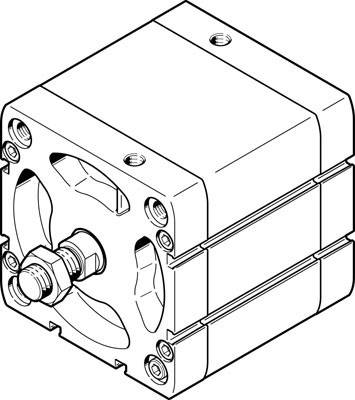

A technical diagram shows a square, block-shaped machine component with screws and bolts, potentially a pneumatic cylinder.

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 265.00 / piece)

€ 265.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Compact cylinder ADN-100-30-A-P-A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Compact cylinder

Stroke length: 30 mm

Max. operating pressure: 10 bar

Manufacturer part #: 536378

Type: Compact cylinder ADN -100-30-A-P-A in accordance with ISO 21287, for position detection, with external thread on the piston rod. Hub = 30 mm, piston diameter = 100 mm, Piston Rod Thread = M16x1.5, attenuation=P: elastic damping rings/plates on both sides, mounting position=any

Size: 100

Sealant: TPE-U

Pneumatics connector: G1/8"

Piston rod material: Steel (stainless)

Piston rod diameter: 100 mm

Force (max.): 4712 N

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

UKCA: not relevant
