FESTO 554219 ADNGF-16-50-P-A Compact cylinder Stroke length: 50 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 119.99 / piece)
€ 119.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

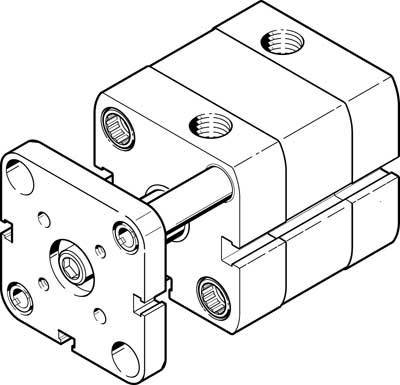

Compact cylinder ADNGF-16-50-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
50 mm
- Min. operating pressure
1.5 bar
- Max. operating pressure
10 bar
- Material (details)
Cover: Aluminum
- Manufacturer part #
554219
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Weight
93 g
- Size
16
- Sealant
TPE-U
- Pneumatics connector
M5
- Piston diameter
16 mm
- Piston rod material
Steel
- Force (max.)
121 N
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1939680 FESTO 554219 ADNGF-16-50-P-A Compact cylinder Stroke length: 50 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1939680 FESTO 554219 ADNGF-16-50-P-A Compact cylinder Stroke length: 50 mm 1 pc(s)
