Name: FESTO 577210 ADNGF-20-20-PPS-A Compact cylinder Enclosure material: Polyphenylene sulphide Stroke length: 20 mm 1 pc(s)
Brand: FESTO
SKU: 1939941
Availability: BackOrder

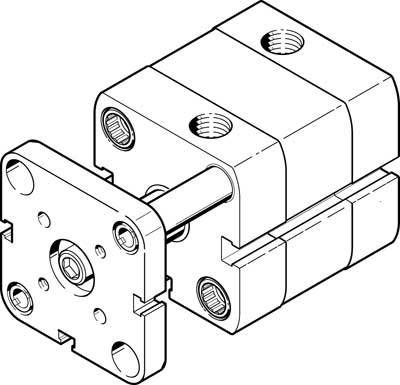

A technical drawing of a pneumatic cylinder with multiple port openings and an extendable piston, shown in an isometric view.

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Compact cylinder ADNGF-20-20-PPS-A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Compact cylinder

Stroke length: 20 mm

Min. operating pressure: 1.9 bar

Max. operating pressure: 10 bar

Material (details): Cover: Aluminum

Manufacturer part #: 577210

Type: Corrosion resistance class KBK: 2-moderate corrosion stress

Weight: 161 g

Size: 20

Sealant: TPE-U

Pneumatics connector: M5

Enclosure material: Polyphenylene sulphide

Piston diameter: 20 mm

Piston rod material: Steel

Force (max.): 188 N

Material: Polyphenylene sulphide

Max. ambient temperature: 80 °C

Min. ambient temperature: -20 °C

Operating principle: Double-acting

UKCA: not relevant
