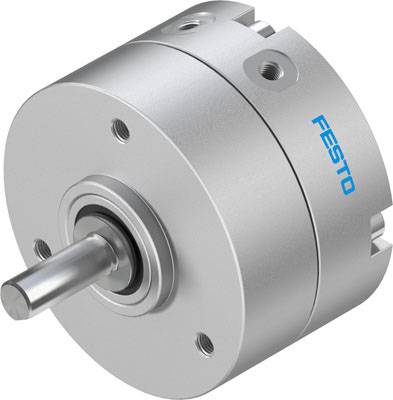

FESTO Rotary actuator 2536486 DRVS-8-180-P-EX4 Enclosure material: Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Swivel angle: 180 deg
- Design: Swivel Wing
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Manufacturer part #
2536486
- Weight
68 g
- Connection
M3
- Size
8
- Min. operating pressure
3.5 bar
- Operating medium
Compressed air
- Sealant
TPE-U
- Enclosure material
Aluminium wrought alloy
- Material
Aluminium wrought alloy
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 2123537 FESTO Rotary actuator 2536486 DRVS-8-180-P-EX4 Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2123537 FESTO Rotary actuator 2536486 DRVS-8-180-P-EX4 Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Swivel drive DRVS -8-180-P-EX4 size=8, damping angle = 0.5 deg, swivel angle = 0 - 180 deg, dampening = P: elastic damping rings/plates on both sides, mounting position=any
