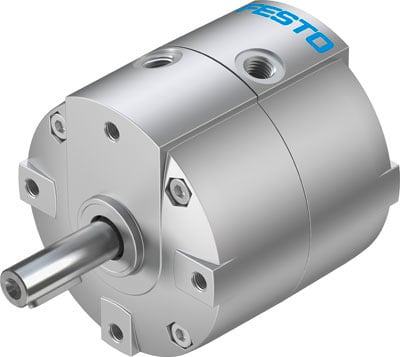

Rotary actuator DRVS-32-180-P
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Material (details)
Diecast aluminium
- Manufacturer part #
1845720
- Type
Swivel drive DRVS -32-180-P size = 32, attenuation angle = 0.5 deg, swivel angle = 0 - 180 deg, dampening = P: elastic damping rings/plates on both sides, mounting position=any
- Weight
912 g
- Size
32
- Operating medium
Compressed air
- Sealant
TPE-U
- Pneumatics connector
G1/8"
- Enclosure material
Aluminium (die-cast)
- Material
TPE-U(PU)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- Operating principle
Double-acting
- UKCA
not relevant
