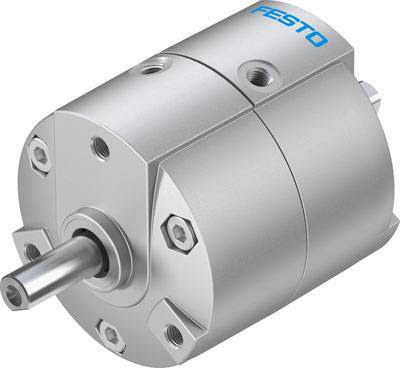

FESTO Rotary actuator 2536491 DRVS-16-180-P-EX4 Enclosure material: Aluminium (die-cast) 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 179.99 / piece)
€ 179.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Swivel angle: 180 deg
- Design: Swivel Wing
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Manufacturer part #
2536491
- Weight
270 g
- Connection
M5
- Size
16
- Min. operating pressure
2.5 bar
- Operating medium
Compressed air
- Sealant
TPE-U
- Enclosure material
Aluminium (die-cast)
- Material
Aluminium (die-cast)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2123542 FESTO Rotary actuator 2536491 DRVS-16-180-P-EX4 Enclosure material: Aluminium (die-cast) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2123542 FESTO Rotary actuator 2536491 DRVS-16-180-P-EX4 Enclosure material: Aluminium (die-cast) 1 pc(s)
Description
Swivel drive DRVS -16-180-P-EX4 size = 16, attenuation angle = 0.5 deg, swivel angle = 0 - 180 deg, dampening = P: elastic damping rings/plates on both sides, mounting position=any
This text is machine translated.
This text is machine translated.
