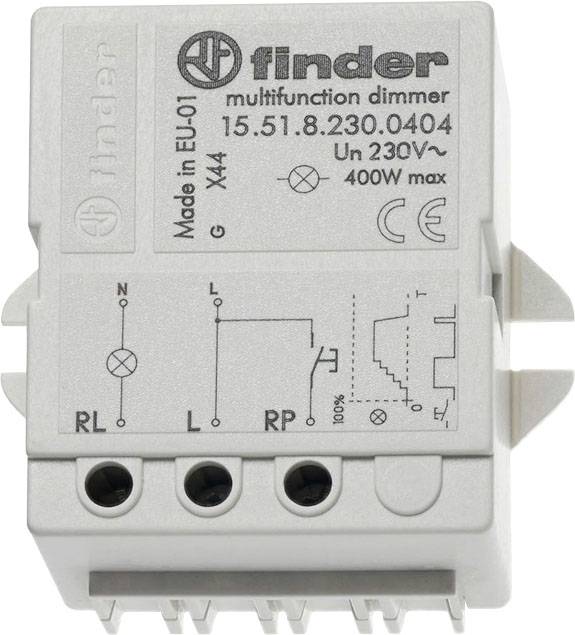

Finder 15.51.8.230.0404 Flush-mount dimmer Grey (transparent)

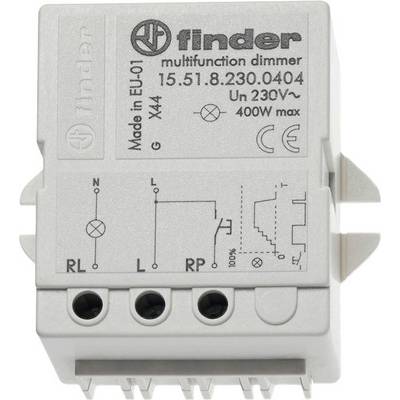

A multifunctional dimmer by Finder, Model 15.51.8.230.0404, suitable for up to 400W. Connections marked RL, LL, RP.
Image similar
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
9 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 35.99 / piece)
€ 35.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 9 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Operating type: Push button
  • Connection type: Screw terminal
  • Frequency: 50 Hz - 50 Hz
  • Material: Plastic
  • Material quality: Duroplast
  • Light value memory: Yes
  • Series dimmer: Yes
  • Can be used with key: Yes
  • Suitable for protection class IP20
  • Wire cross-section 2.5 mm² - 6 mm²
  • Dimming Phase section: Yes
  • Min Depth of device socket: 60 mm
Product type

Flush-mount dimmer

Operating voltage

230 V

Power rating (min.)

50 W

Power rating (max.)

400 W

Factory colour

Grey (transparent)

Type

matt, halogen-free

Dim

(L x W x H) 22 x 50 x 49.5 mm

Length

22 mm

Width

50 mm

Height

49.5 mm

Built-in installation

Basic element

Push button

White

TRUE

1

Screwed terminal

Untreated

0.7 W

50-50 MHz

Duroplast

Plastic

Other

9010

230-230 V

FALSE

Matt

IP20

50 mm

49.5 mm

22 mm

FALSE

TRUE

FALSE

FALSE

FALSE

FALSE

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2474748 Finder 15.51.8.230.0404 Flush-mount dimmer Grey (transparent)

Description

Dimmer for chassis or can mounting, dimmed continuously, 2 modes of operation can be selected via button: (Dimmer and memory function). Applicable for incandescent and halogen lamps, max. power output circuit: 400 W, thermal overload protection integrated, on-time (ED): 100 %, lamp loads: Incandescent and halogen lamps 400 W, LV halogen lamps via EVG 400 W, minimum power: 10 W, connection voltage: 230 VAC
