Buy Fischer 532751 FH II 12/M8 I K NV Heavy duty anchor 12 mm 1 Set

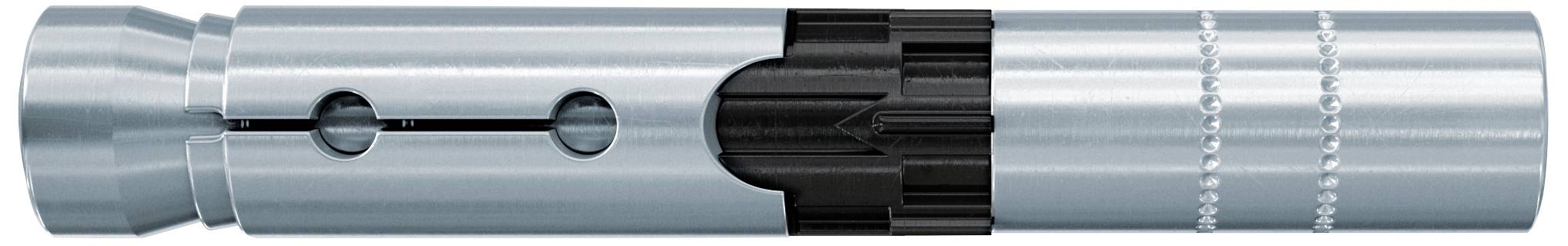

Metal wall plug in cylindrical form with a ribbed section and two grooves at the end, used for anchoring in walls.

Fischer Sleeve Anchor Set FH II 12/M8 I, suitable for loads up to 430 kg, including illustrated assembly instructions, pack of 2.

A view of empty, glossy red plastic seats in a stadium stairway. The seats are arranged uniformly.

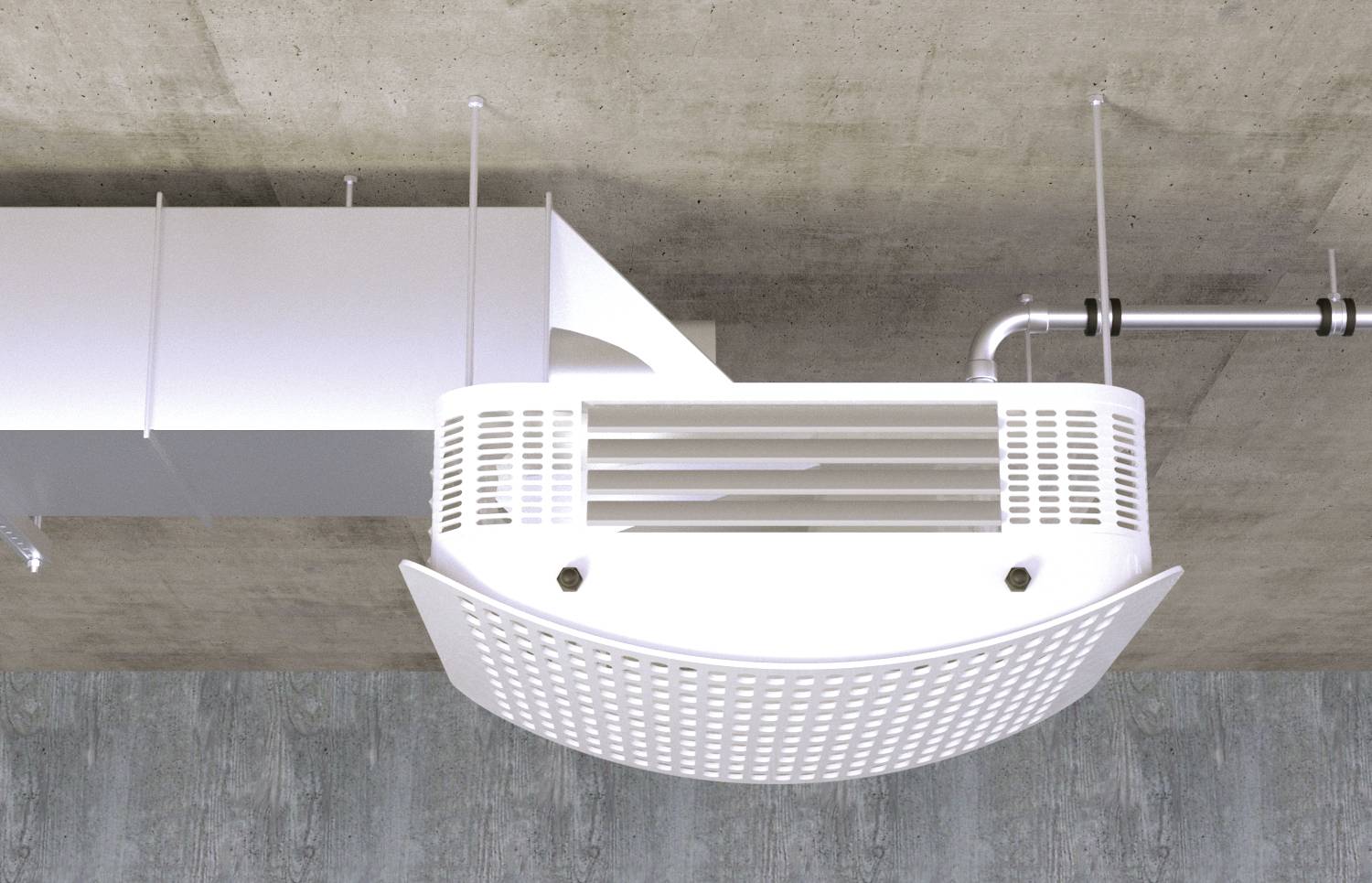

White ceiling fan in a modern room, mounted on a concrete surface, with visible ventilation shaft and metal pipes.

'A drill tip penetrates a surface. Beneath, a cross-section reveals cracks and deposits within the material's interior.'

'Schematic representation of a wall plug anchored in a wall. An arrow indicates the direction of screw rotation to expand the plug.'

'A pipe with a water meter installed in a wall. Text reading "Tinstal" with an arrow to the right.'

'Illustration shows the correct viewing angle for a spirit level bubble, to ensure accurate reading.'

A bolted anchor in a wall with a marking 'max. Tfix'. An arrow indicates a rotation.

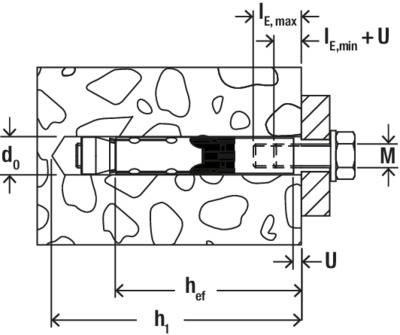

'Schematic drawing of a walled-in bolt with dimensions. Shows various lengths and distances with technical details.'

1/10

Datasheet (PDF)

7 Set(s)

Sales and shipping:

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 10.08 / piece)

€

Only 7 Set(s) available

Report legal concerns

Highlights & Details

FISCHER HIGH-PERFORMANCE ANCHOR FH II 12/M8 I K NV

Highest mounting comfort through fast spreading.
Visual setting control for fitting conforming to approval.
No torque wrench required.
High flexibility: Standard metric screws and threaded rods can be used.

Technical specifications

(Ø): 12 mm

Dim: (Ø) 12 mm

Content: 1 Set

Suitable for: Concrete
Natural stone

Material: Steel

Material properties: zinc galvanized

Outside Ø: 12 mm

Product type: Heavy duty anchor

Documents & Downloads

Datasheet

Datasheet 3066021 Fischer 532751 FH II 12/M8 I K NV Heavy duty anchor 12 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3066021 Fischer 532751 FH II 12/M8 I K NV Heavy duty anchor 12 mm 1 Set

Information

Information 3066021 Fischer 532751 FH II 12/M8 I K NV Heavy duty anchor 12 mm 1 Set

Description

The Fischer FH II-I high-performance anchor is an internal thread anchor made of galvanized steel. The anchor is set in the pedestal mounting. When installed with a hexagonal spanner, the cone is pulled into the expanding sleeve and tightens it against the drilled hole wall. At the same time, the anchor contracts by twisting the black plastic ring. The armature sleeve is thus positioned under the drill hole edge in accordance with the approvals. The Fischer FH II-I high-performance anchor is Ideal for the attachment of air-conditioning units, sprinkler systems and pipe paths.
