Name: FLIR E76 24° + 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi
Brand: FLIR
SKU: 3533038
Availability: BackOrder

'A handheld thermal imaging camera showing an infrared image on its screen, used for detecting heat patterns and visualizing temperature.'

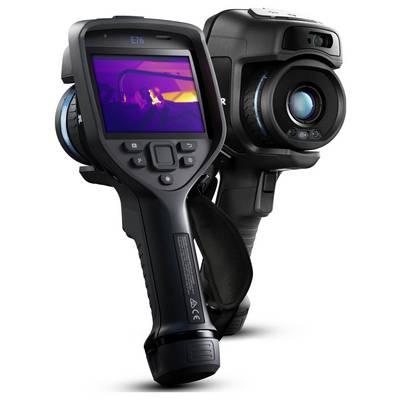

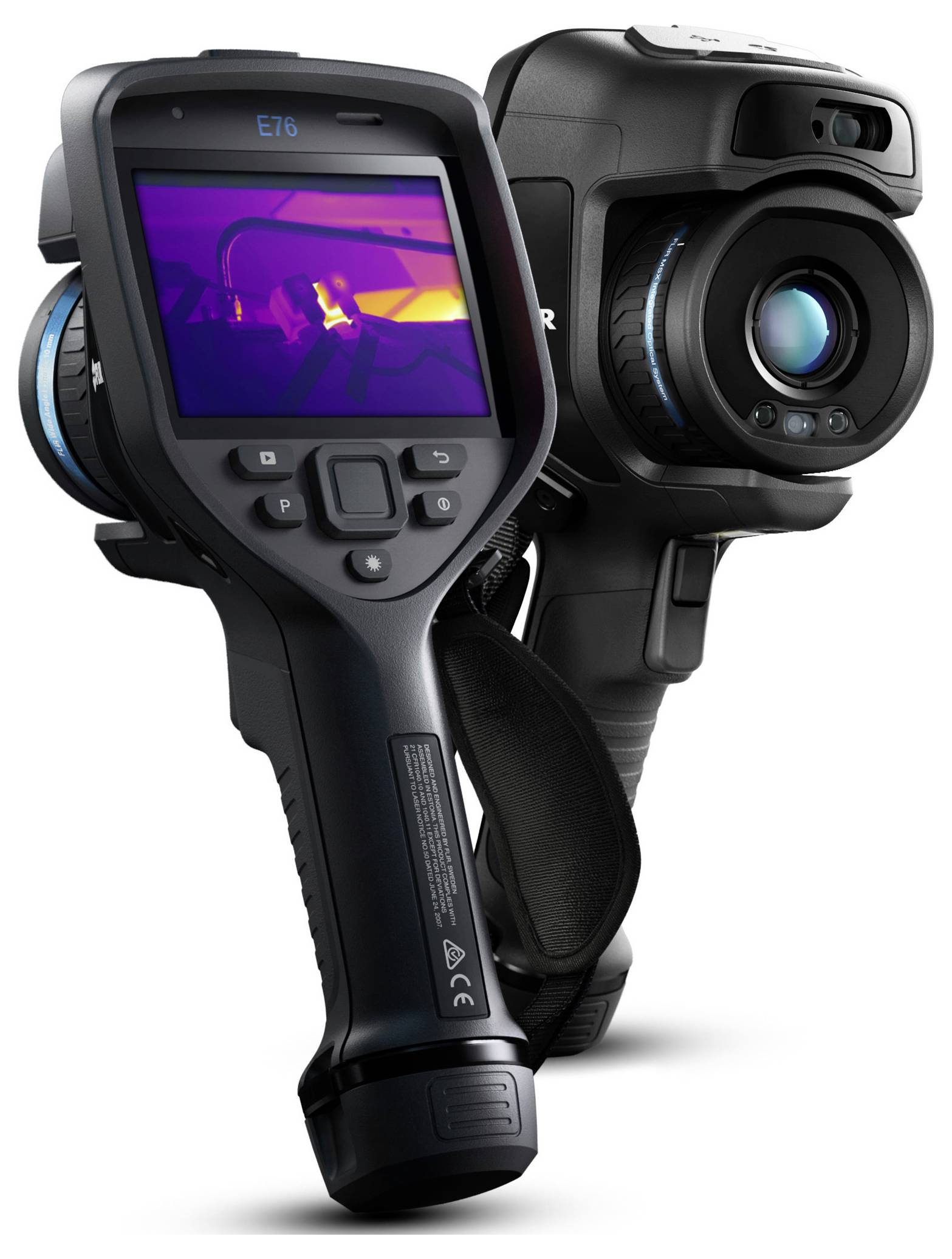

Two infrared cameras are shown, one displaying a thermal image on its screen, highlighting temperature variations.

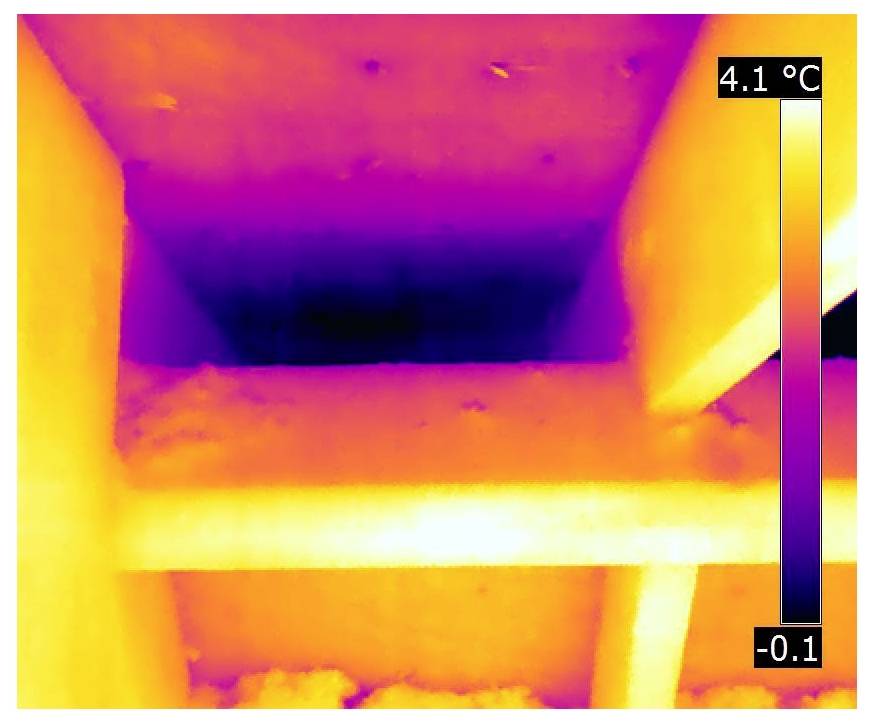

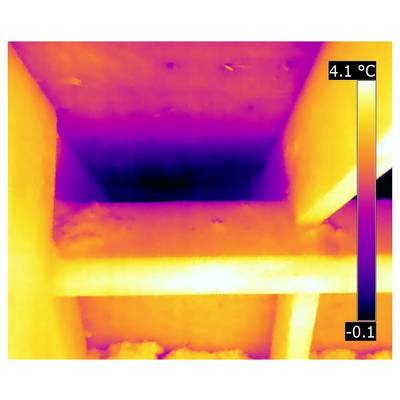

Thermal image showing temperature variations in a structure, with a scale on the right from -0.1 to 4.1°C, highlighting heat loss areas.

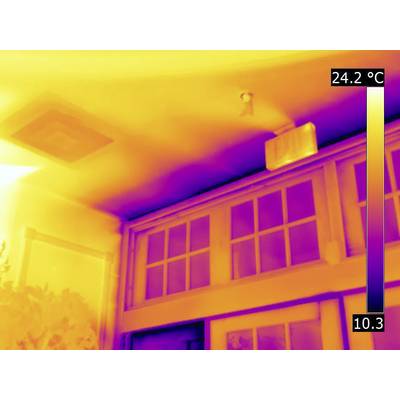

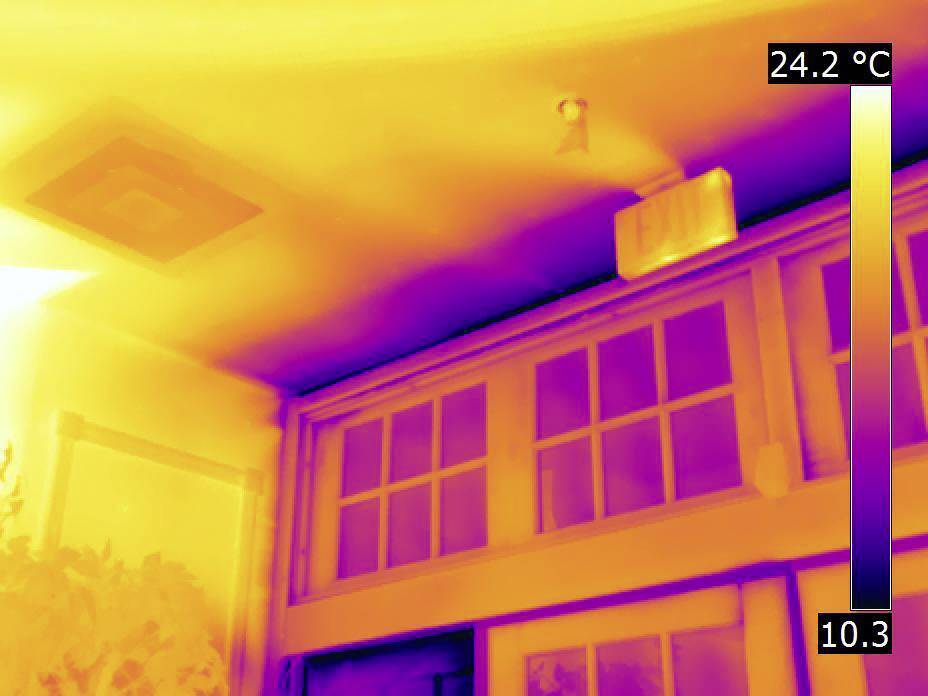

A thermal image of a room showing temperature variations, with a range from 10.3°C to 24.2°C, highlighting a warm ceiling and door area.

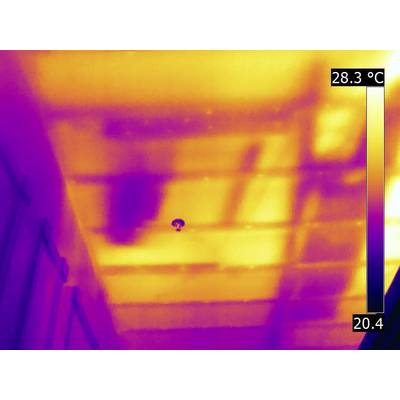

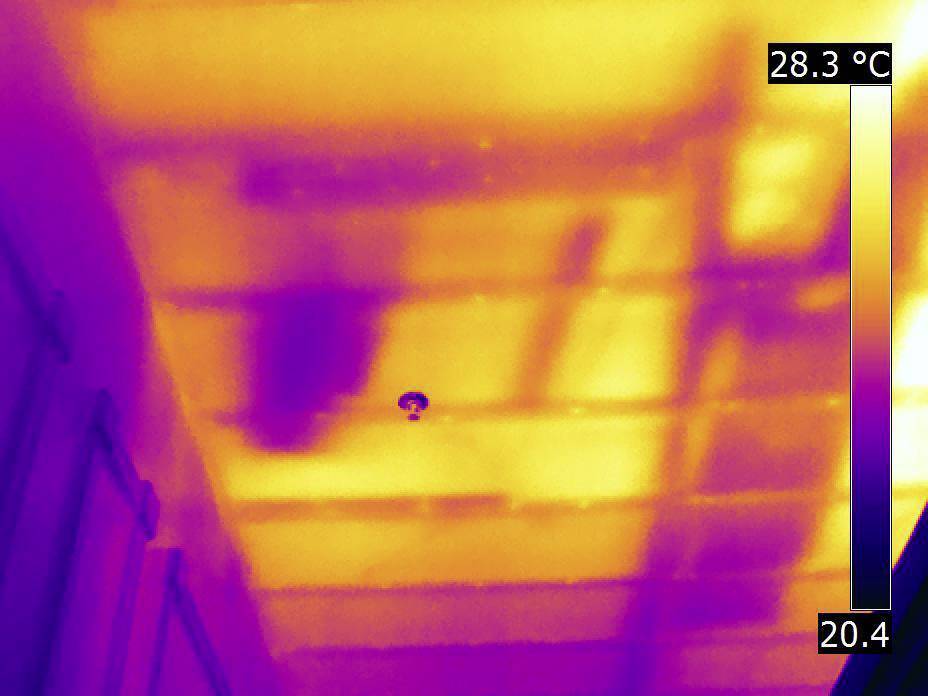

A thermal image of a ceiling showing temperature variations from 20.4°C to 28.3°C. Warmer areas appear in yellow, cooler in purple.

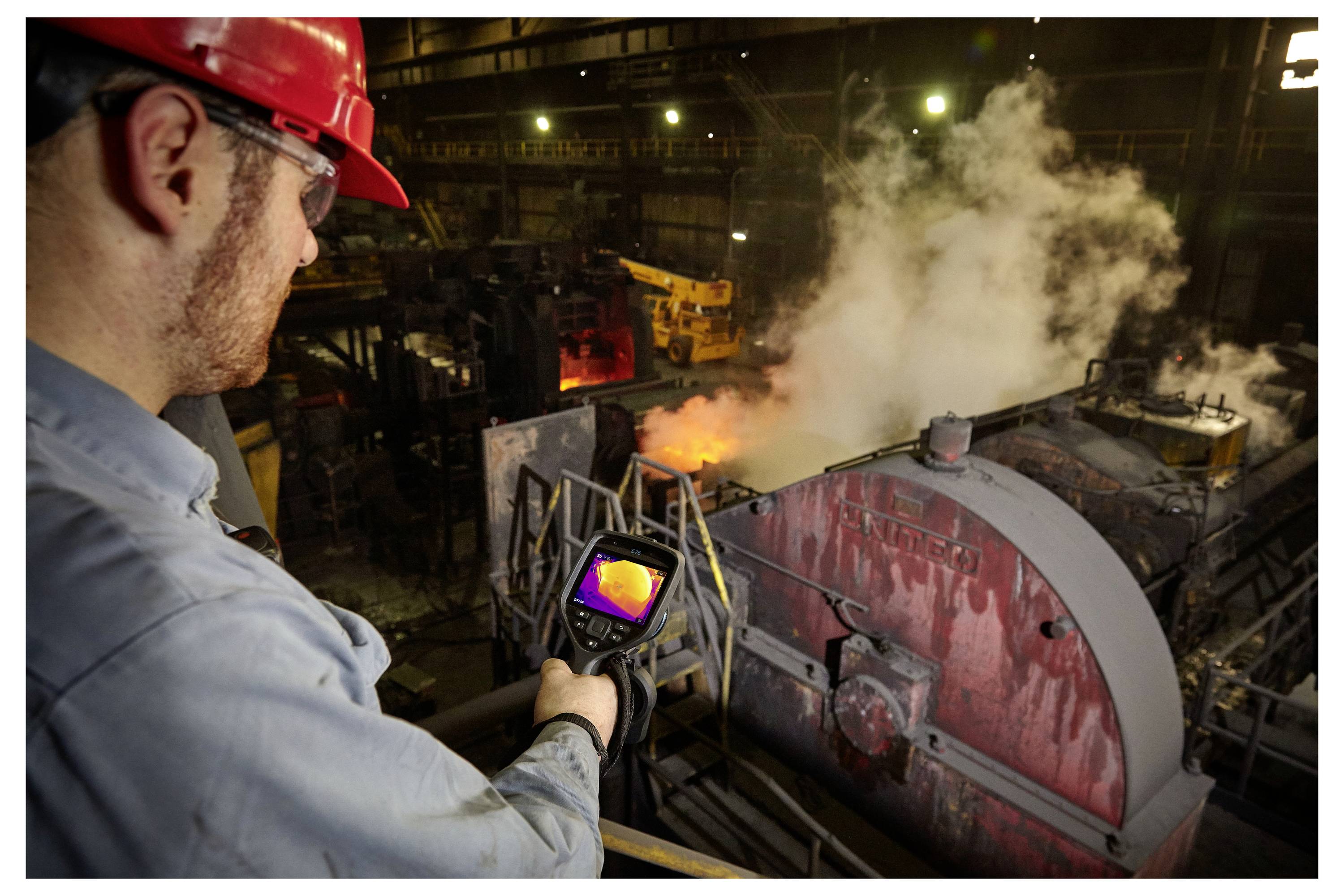

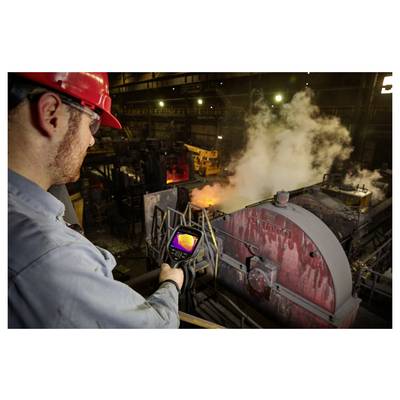

A worker in a red hard hat uses a thermal imaging camera to monitor machinery with steam and flames in an industrial setting.

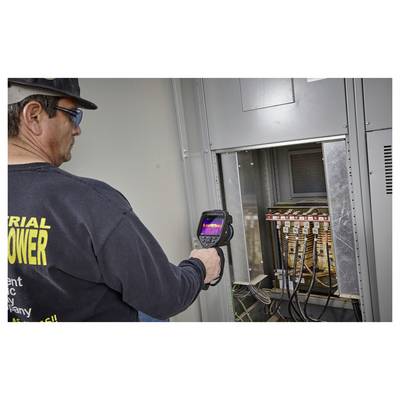

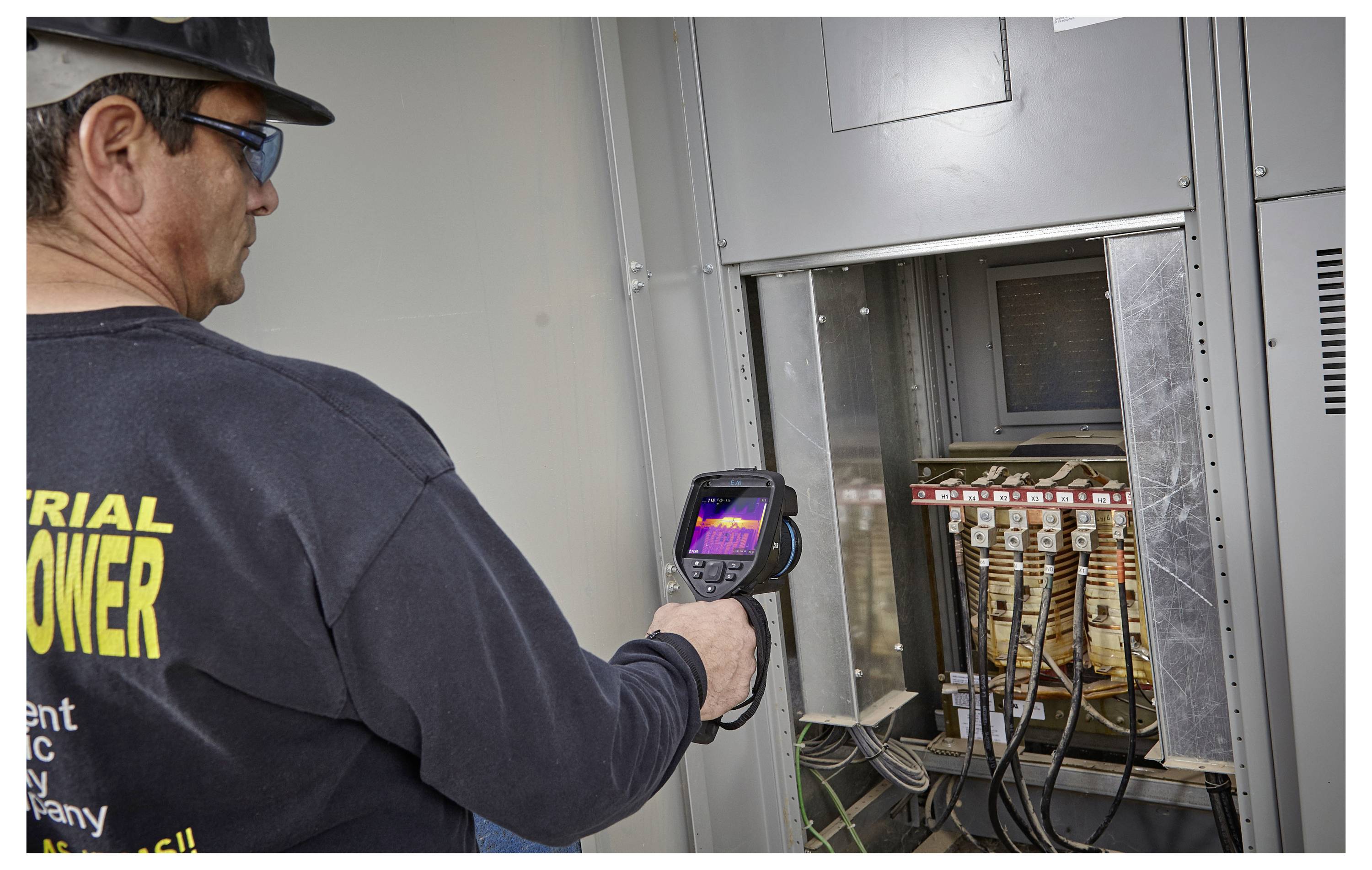

A technician uses a thermal camera to inspect electrical equipment, ensuring safety and functionality.

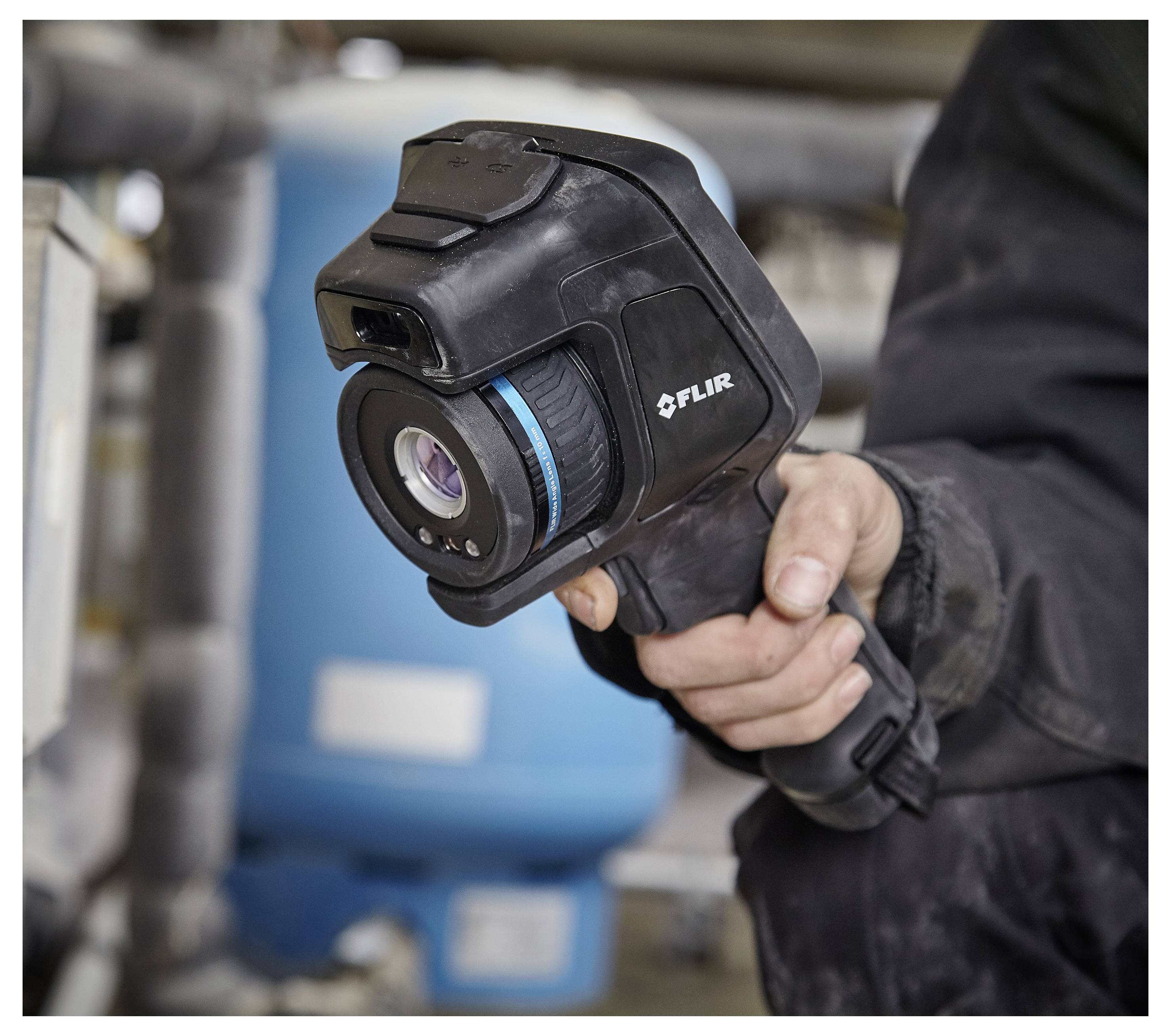

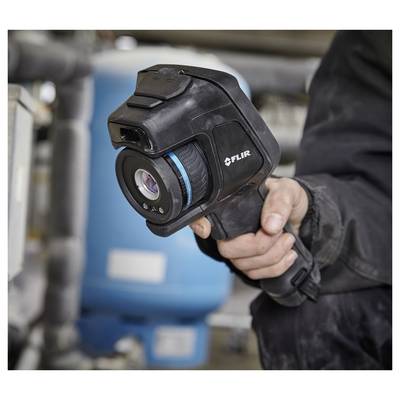

A person holds a FLIR thermal imaging camera aimed at machinery in an industrial setting, used for detecting temperature variations.

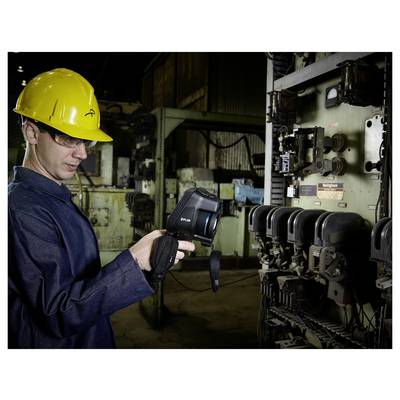

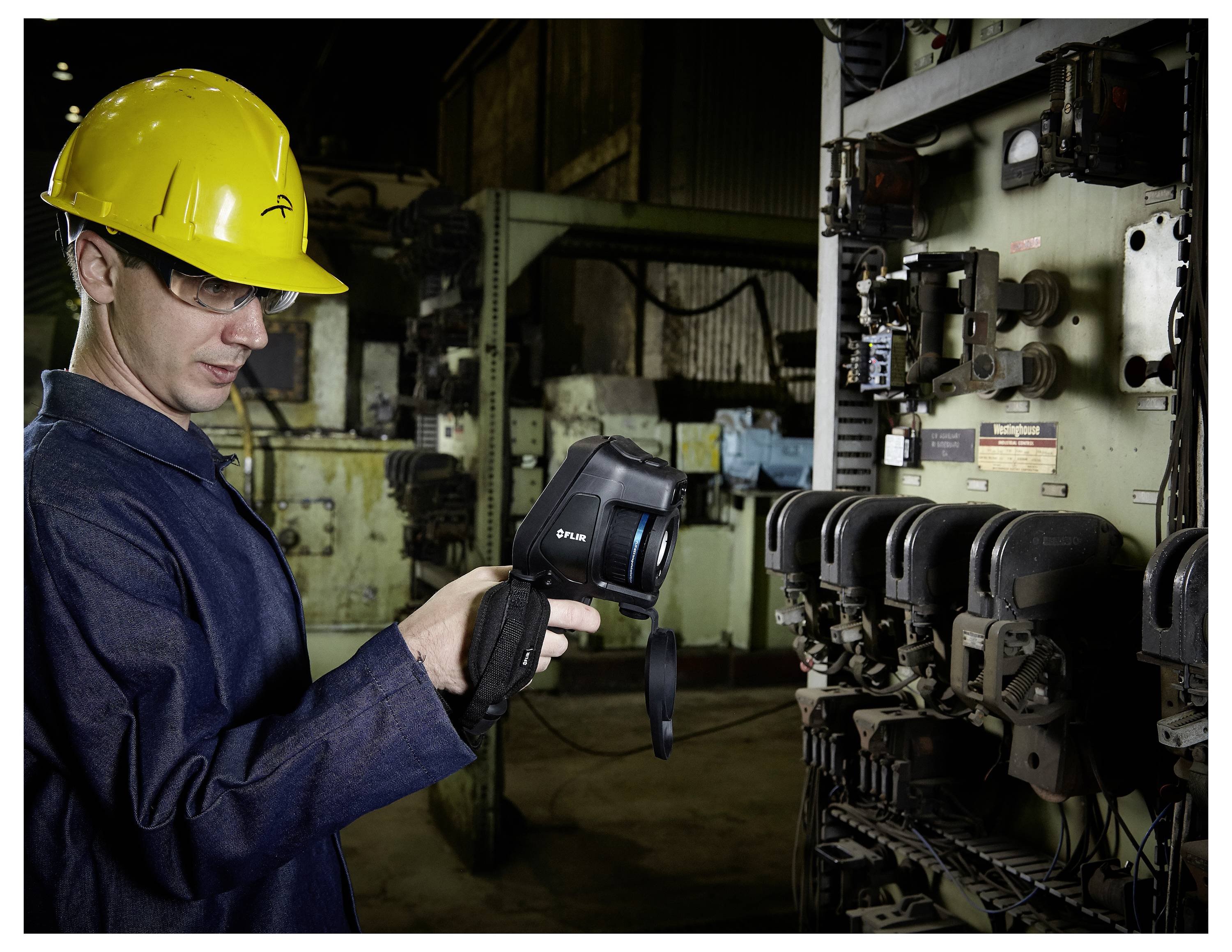

A person in a yellow hard hat uses a handheld thermal imaging camera to inspect industrial machinery in a factory setting.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11,855.00 / piece)

€ 11,855.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FLIR E76 w/ 24°+42° lens, 320x240, -20°C to +650°C.

30 Hz Thermal imaging camera
Temperature reading range -20 up to 650 °C
320 x 240 Pixel Bolometer matrix
Thermal sensitivity 40 mK

Technical specifications

Laser rangefinder
FLIR inspection route™ (enabled)
Radiometric JPEG images
Voice comments
GPS tagging

Type: E76 24° + 42°

Product type: IR camera

Bolometer array: 320 x 240 Pixel

Interfaces: USB A (USB 2.0)
DisplayPort
Bluetooth
Wi-Fi

Temperature reading range (max.): 650 °C

Colour schemes: 6

Temperature reading range (min.): -20 °C

Optics: 24° x 18° (standard lens, 17 mm) 42° x 32° (wide angle lens, 10 mm)

Frame rate: 30 Hz

Display resolution: 640 x 480 Pixel

: IP54

Thermal sensitivity: 40 mK

Dim: (L x W x H) 27.8 x 11.6 x 11.3 cm

Memory units: 1

Temperature resolution: 0,1 °C

Digital zoom: 4 x

Display: 640 x 480 p

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Automatic
Manual

Geometric resolution (IFOV): 1.31 mrad

Weight: 1 kg

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Calibration service: AutoCal™ interchangeable lenses, automatic calibration

Temperature reading range: -20 up to 650 °C

Min. focusing distance: 0.5 m

Width: 11.6 cm

Height: 11.3 cm

Length: 27.8 cm

Connection: Bluetooth
USB

Features: MSX®
Touchscreen
MeterLink™
Wi-Fi

: Manufacturer's standards (no certificate)

Variants(All information include VAT, plus shipping costs)

Bolometer array

Display resolution

Interfaces

Temperature reading range (max.)

Temperature reading range (min.)

Thermal sensitivity

FLIR E76 24° + 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533038

Available soon

Conrad Electronic

This article

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533035

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 24° + 14° & 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533037

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,229.00^*

FLIR E76 24° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533036

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

40 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10,729.00^*

FLIR E76 42° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533040

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

30 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533039

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 Dual FOV (24° - 42°) & 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™

Item no:3533056

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13,855.00^*

FLIR E76 Dual FOV 24° - 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi, Touchscreen

Item no:3533055

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10,959.00^*

FLIR E76 IR camera 0 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi

Item no:2305183

Available soon

Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

0 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E86 14° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, MSX®, Touchscreen, MeterLink™

Item no:3533041

Available soon

Conrad Electronic

464 x 348 Pixel

640 x 480 Pixel

DisplayPort

1500 °C

-20 °C

50 mK

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12,419.00^*

Documents & Downloads

Datasheet

Datasheet 3533038 FLIR E76 24° + 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

User & Safety Instructions

User & Safety Instructions 3533038 FLIR E76 24° + 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Description

Inspection and troubleshooting faster than ever before
The FLIR E76 offers full coverage of close and remote targets through a range of lens options. The E76 is a further development of the FLIR E54 and offers a laser-assisted auto focus and three measurement ranges. The infrared resolution of 320 × 240 pixels delivers sharp, colorful pictures, which offer even more detail and perspective with the help of the patented FLIR MSX® technology. With the integrated FLIR inspection route software, you can travel along pre-defined routes so that you can proceed with planning even at larger locations or when reviewing several areas. FLIR Ignite enables the automatic uploading of E76 images directly from the camera to the cloud for easy and safe storage and sharing.

One lens, two fields of view
Pair your Exx Series camera with a FLIR FlexView™ Dual Field of View lens so you can easily switch from wide angle to telescan at the touch of a button.

Improved contrast for faster diagnosis
Use FLIR 1-touch level/span for more image contrast and you can detect faults in electronics or mechanics more quickly.

Streamlined reporting
With the integrated FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in microphone for recording voice comments and reporting functions, the E76 makes it easier, faster and more efficient to work. (*Optional add-on software)

This text is machine translated.

Features

320 × 240 pixels
Thermal sensitivity / NETD: Less than 30 mK, 42° at 30 °C [BR] less than 40 mK, 24° at 30 °C
Accuracy ±2°C or ±2% of reading
5 MP digital camera with integrated Photo/Video LED lamp
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Storage media: Removable SD-card
Frame rate: 30 Hz
Picture-in-picture: Adjustable size and position
F-number 1.1, 42° [BR]1.3, 24°
Detector type and grid: Uncooled microbolometer, 17 µm
5 MP digital camera with integrated Photo/Video LED lamp
Digital zoom 1 to 4 times continuously
Colour palettes: Iron, Grey, Rainbow, Arctic, Lava, Rainbow HC
Focus: Continuous laser distance meter (LDM), one-point laser distance meter (LDM), one-point contrast, manual
320 × 240 pixels
Minimum focus distance: 0.15 m, 42° [BR]0.15 m, 24°
Non-radiometric IR video streaming: H.264 or MPEG-4 via WLAN MJPEG via UVC or WLAN
Lens recognition: Automatic
Radiometric IR video recording: Real-time radiometric recording (.CSQ)
Radiometric IR video streaming: Yes, via UVC
Spectral range: 7.5 – 14 µm
UltraMax: Yes
Accuracy ±2°C or ±2% of reading
Measuring point: 3 each in live mode
Object temperature range: -20 to 120 °C (-4 to 248 °F); 0 to 650 °C (32 to 1202 °F). 300 to 1000 °C (572 to 1832 °F) available when purchasing the high temperature option TT199559
Measurement presets: No measurement, Center Spot, Hot Spot, Cold Spot, Custom 1, Custom 2
Display: 4" LCD touch screen with 640 × 480 pixels and automatic rotation
Voice: Up to 60 seconds recording for still images or videos via built-in microphone (built-in speaker) or Bluetooth®
Text: Pre-defined list or touch screen keyboard
Operating temperature range -15 to +50 °C
Storage temperature range: -40 °C to +70 °C

Scope of delivery

Infrared camera with lens, small viewfinder
2 rechargeable batteries
Battery charger
Hard shell carrying case
Case Carrying Systems
Front lens cover
Power supply unit
Printed documents
SD memory card (8 GB)
Cable (USB 2.0 A to USB Type C, USB Type C to HDMI, USB Type C to USB Type C)
License card: FLIR thermal studio starter
