Buy VOLTCRAFT WB-310 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Wi-Fi, Built-in LED light

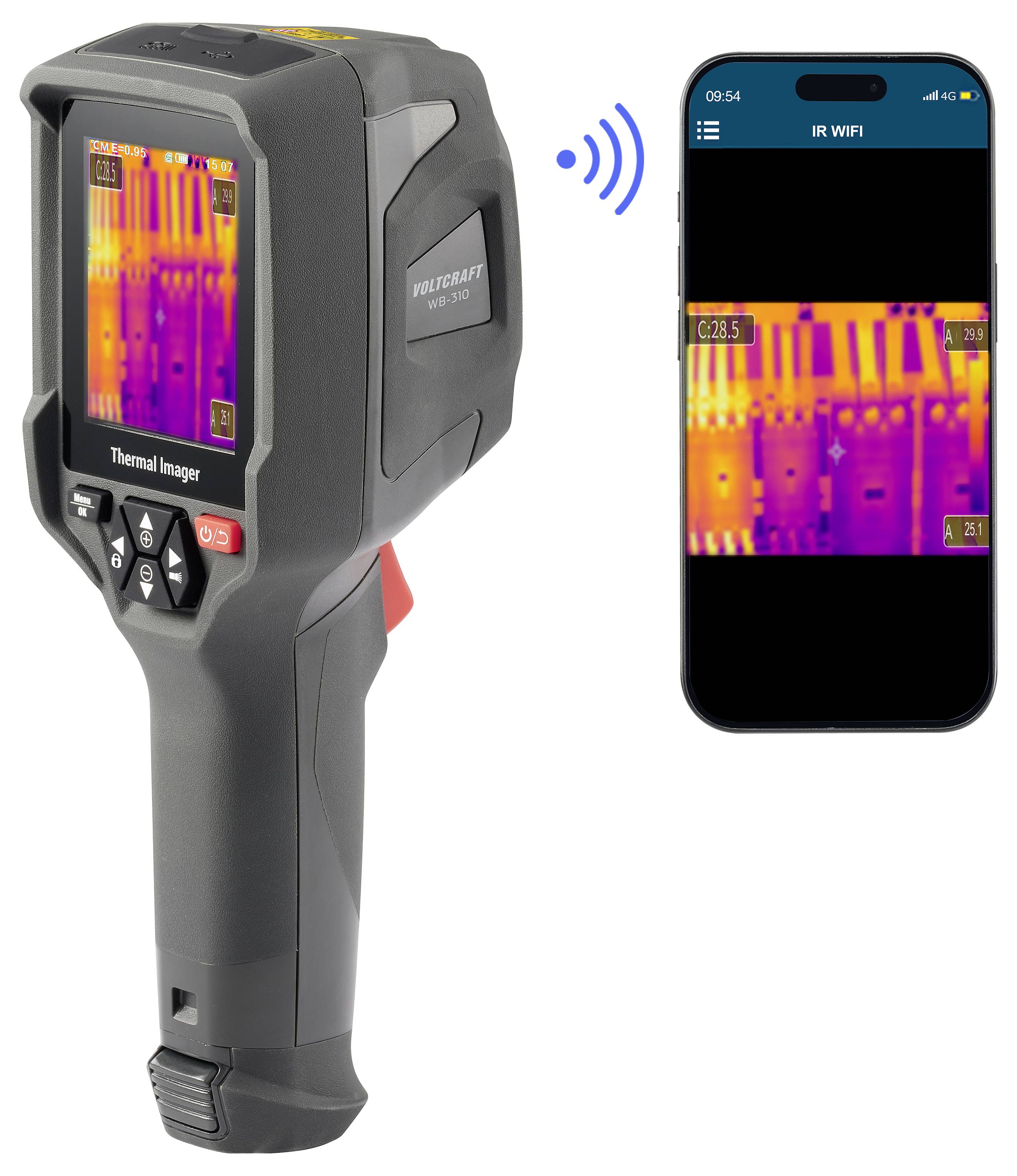

Thermal imaging camera with display sending a heatmap to a smartphone app via wireless connection<br>

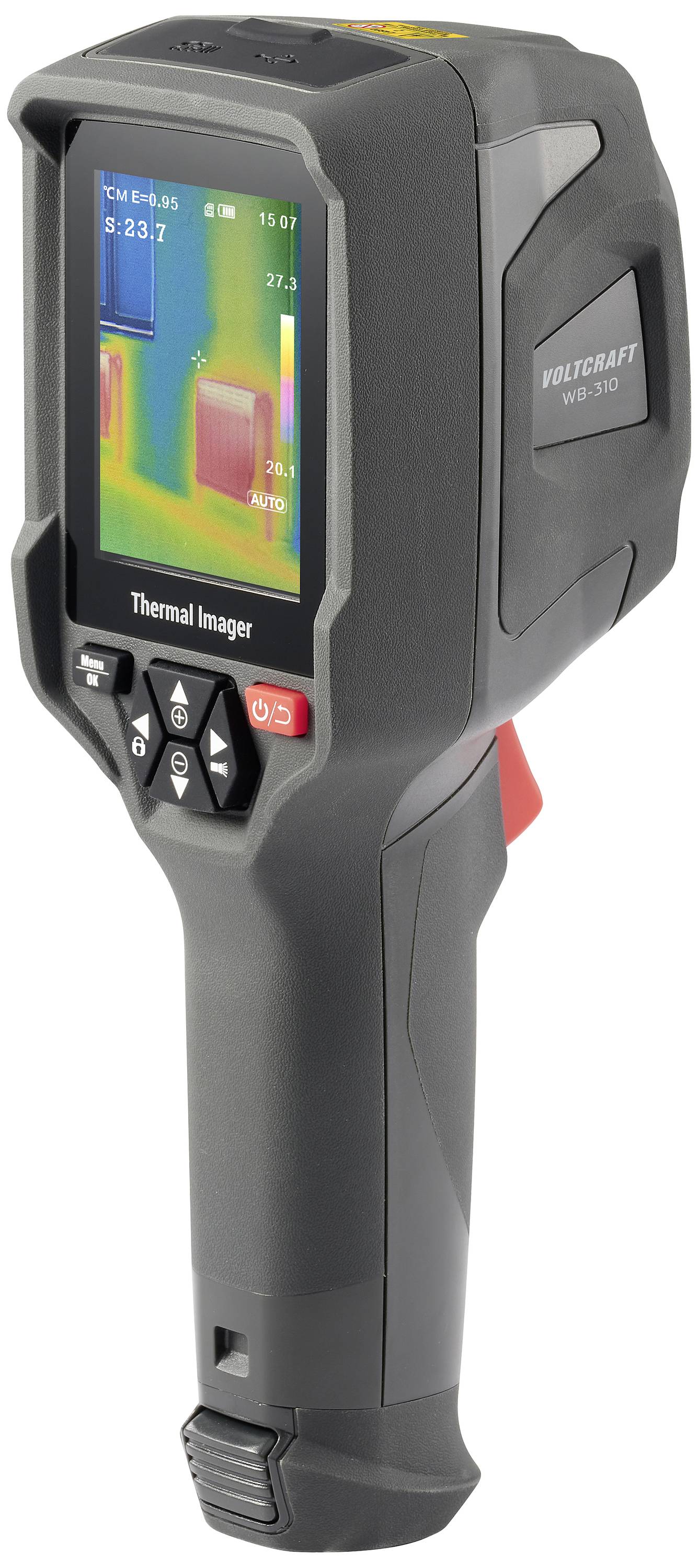

A portable thermal imaging device with a display showing temperature measurements. User-friendly buttons on the front.

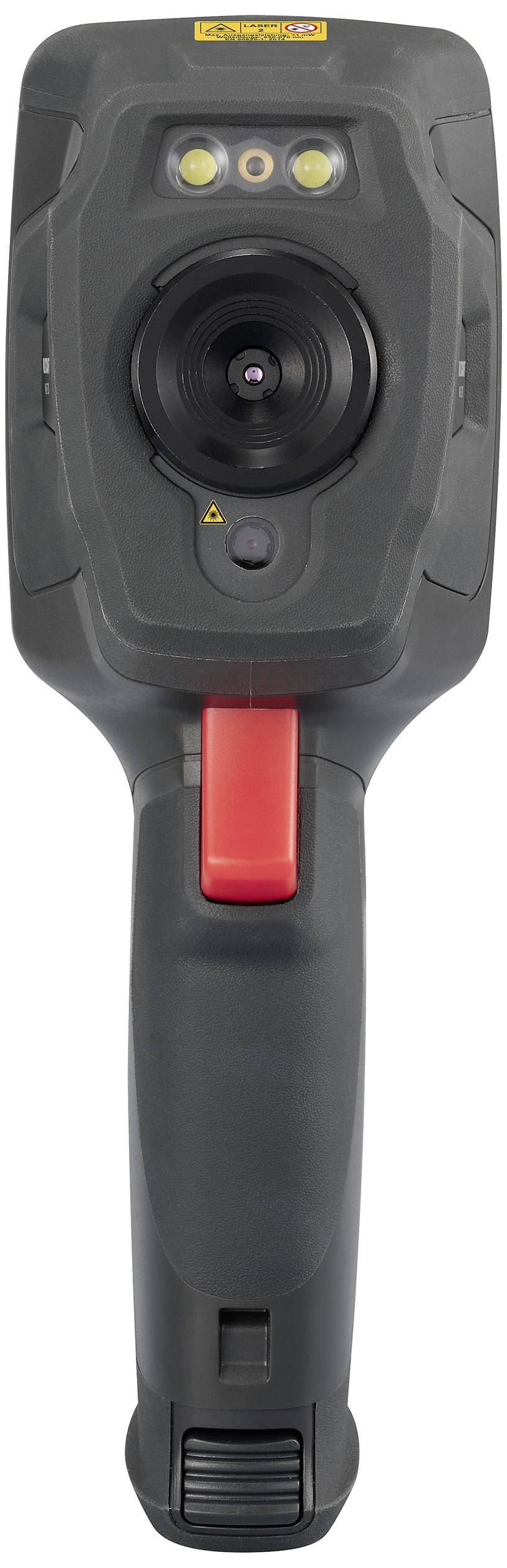

Handheld thermometer with display, camera and control button. Used for temperature measurement and visual analysis of heat sources.

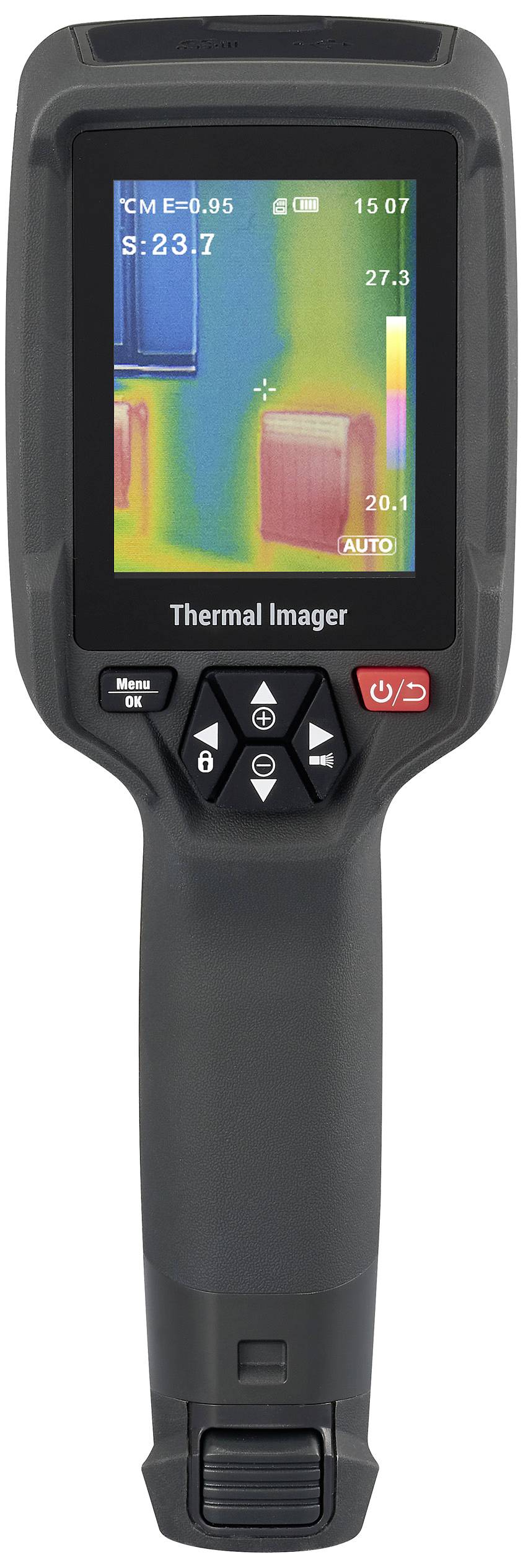

Handheld thermal imaging camera with display, showing temperature differences in colour tones. Primarily blue and red visible.

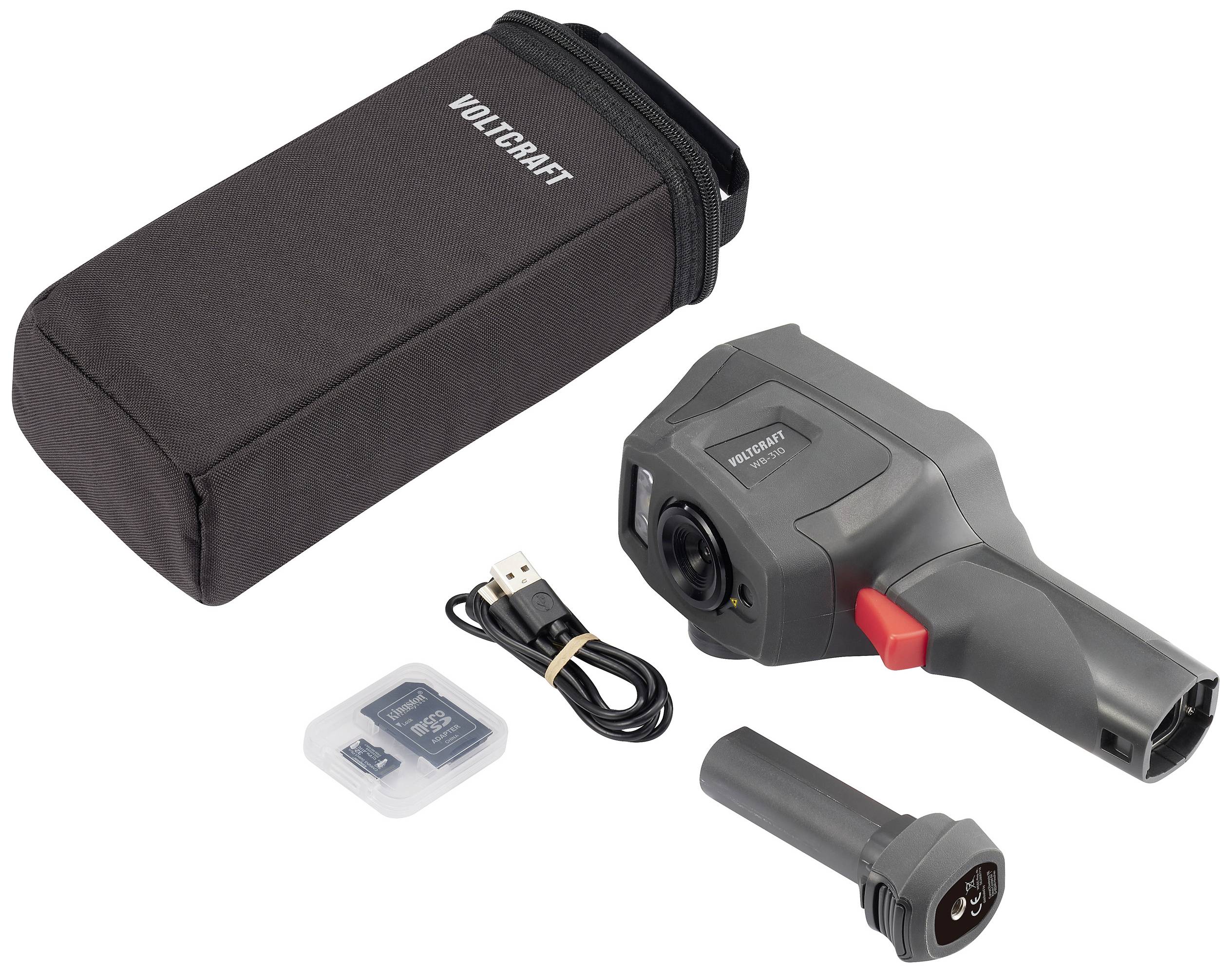

Portable thermal imaging camera with storage case, USB cable, SD card, and charger. Perfect for temperature measurements.

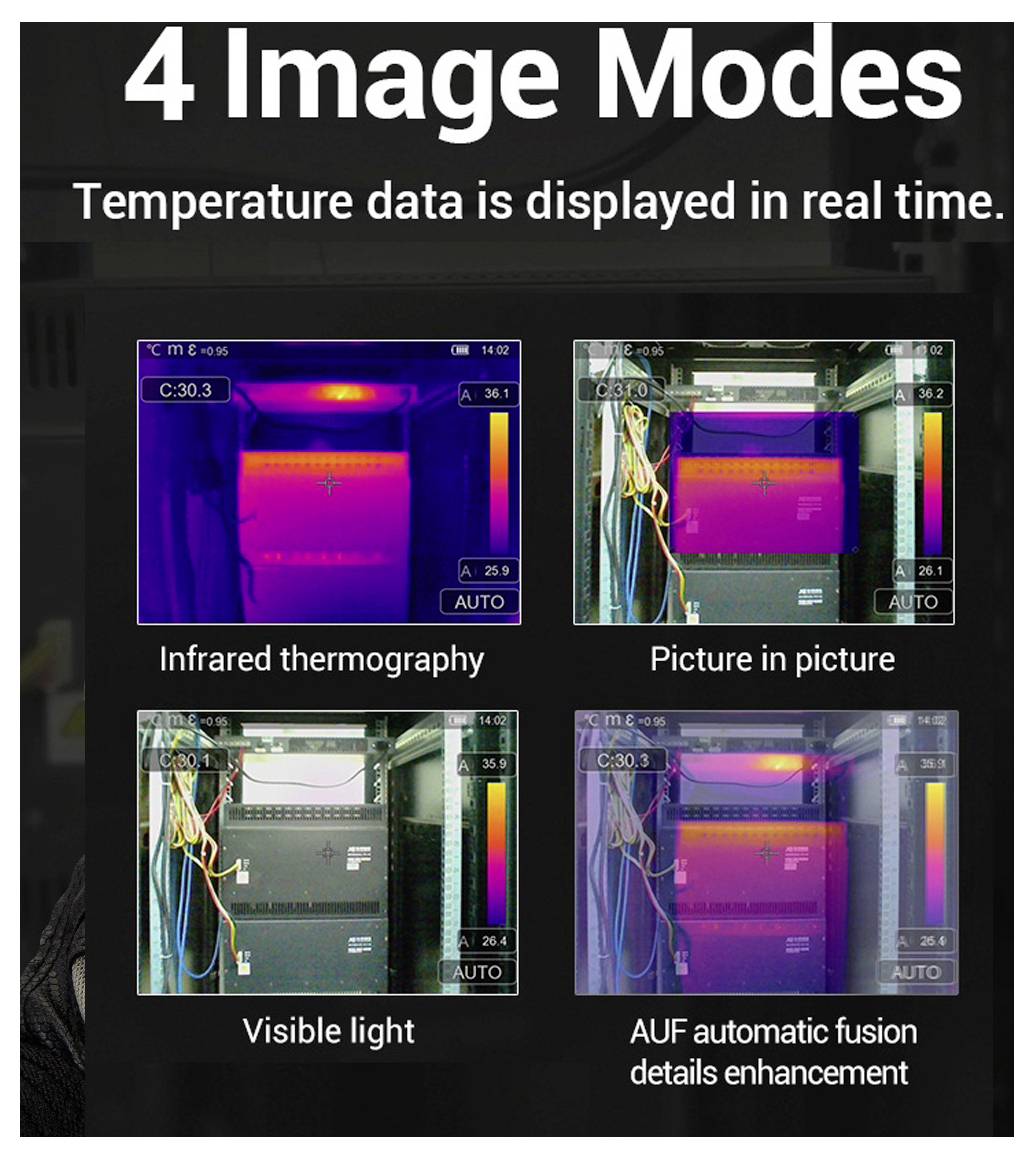

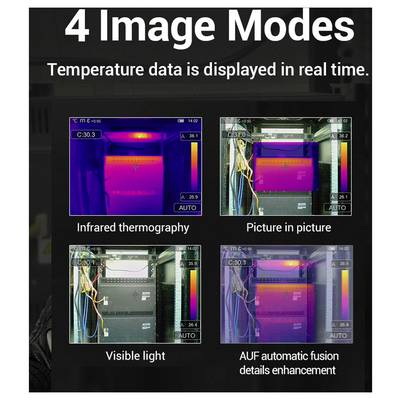

Poster showing '4 Image Modes' with real-time temperature data and four thermal camera views: infrared thermography, picture in picture, visible light, and AUF automatic fusion details enhancement.

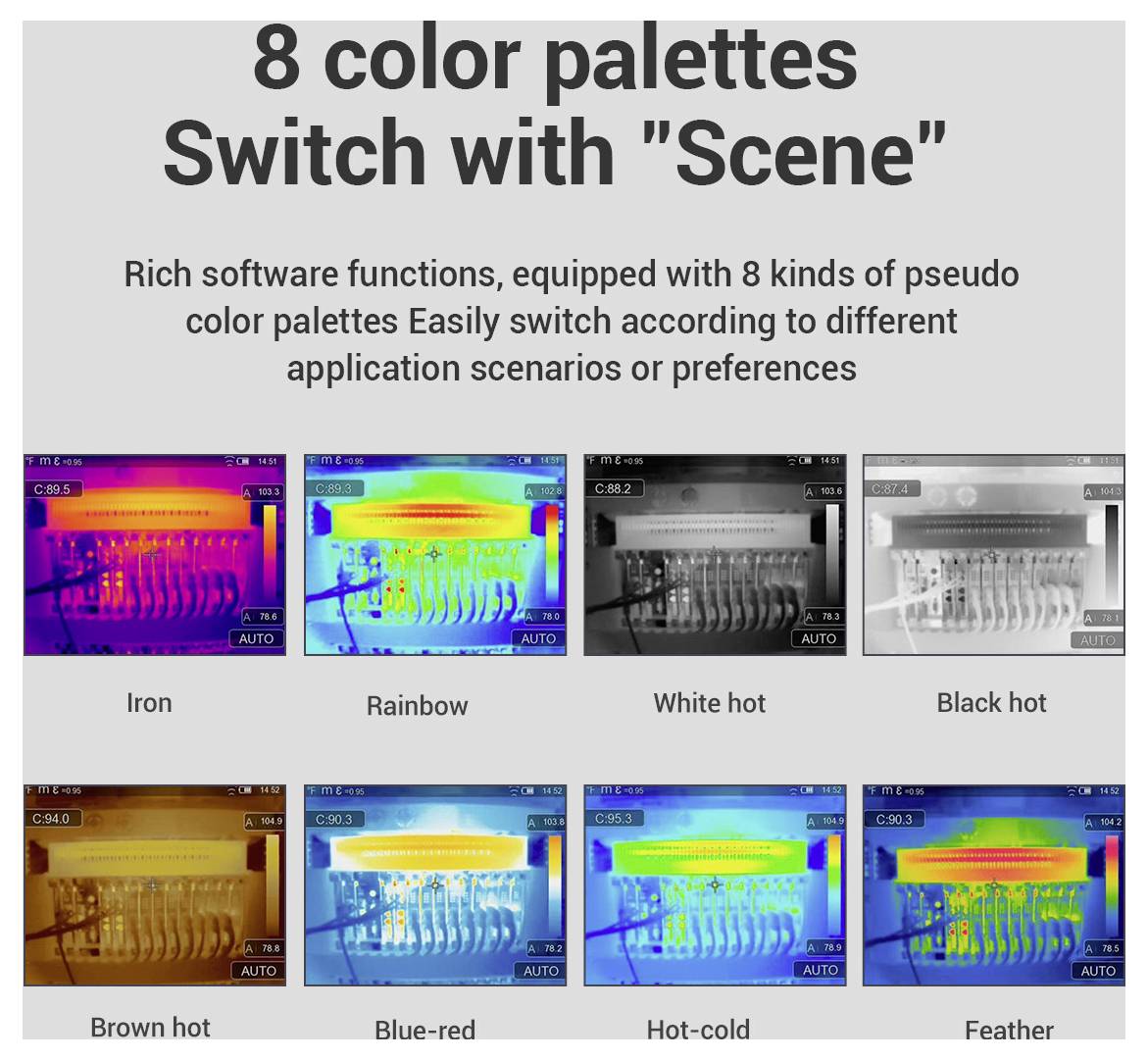

Infographic titled '8 color palettes Switch with "Scene"' showing eight thermal color modes: Iron, Rainbow, White hot, Black hot, Brown hot, Blue-red, Hot-cold, and Feather.<br>

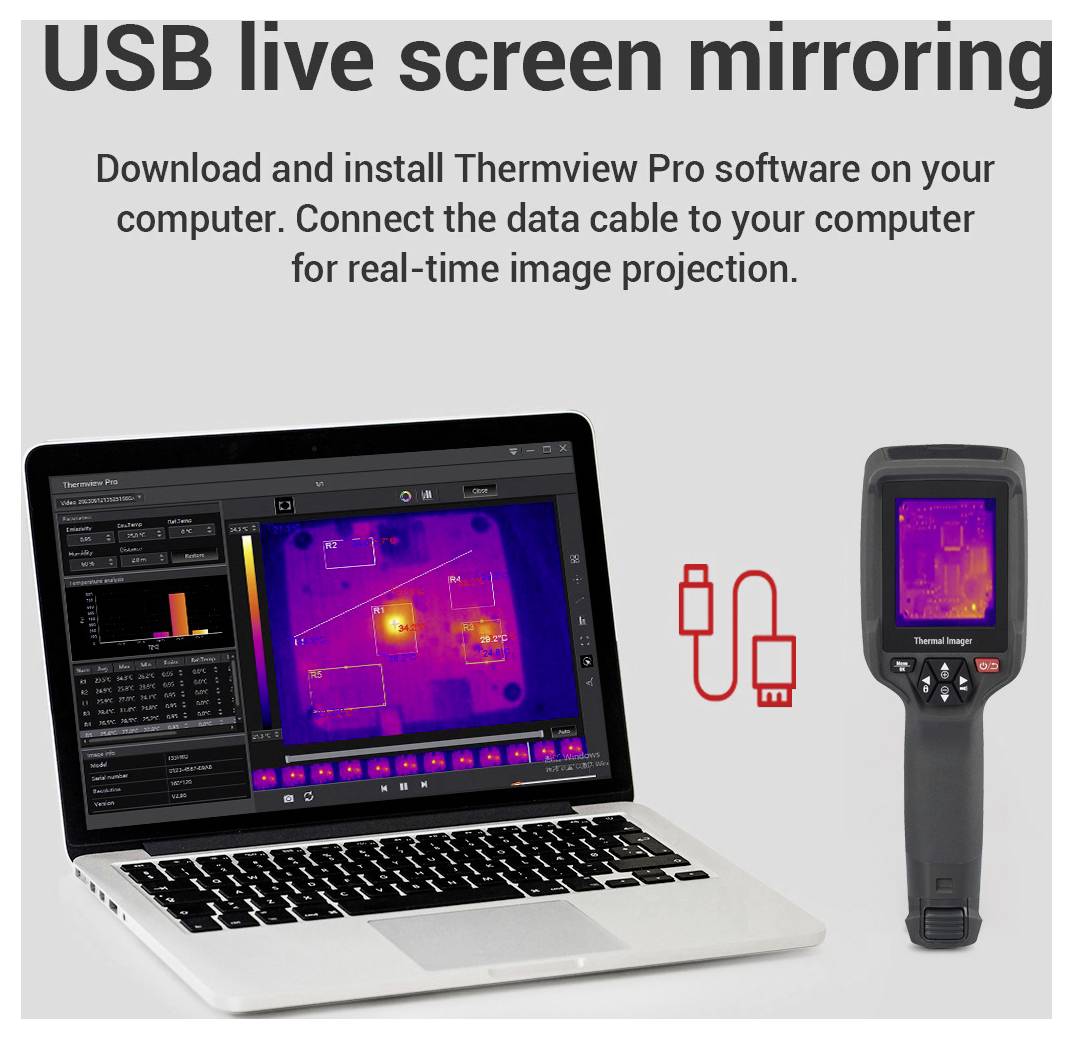

USB live screen mirroring instructions with a laptop, red cable icon, and handheld thermal imager showing a thermal image for real-time projection.

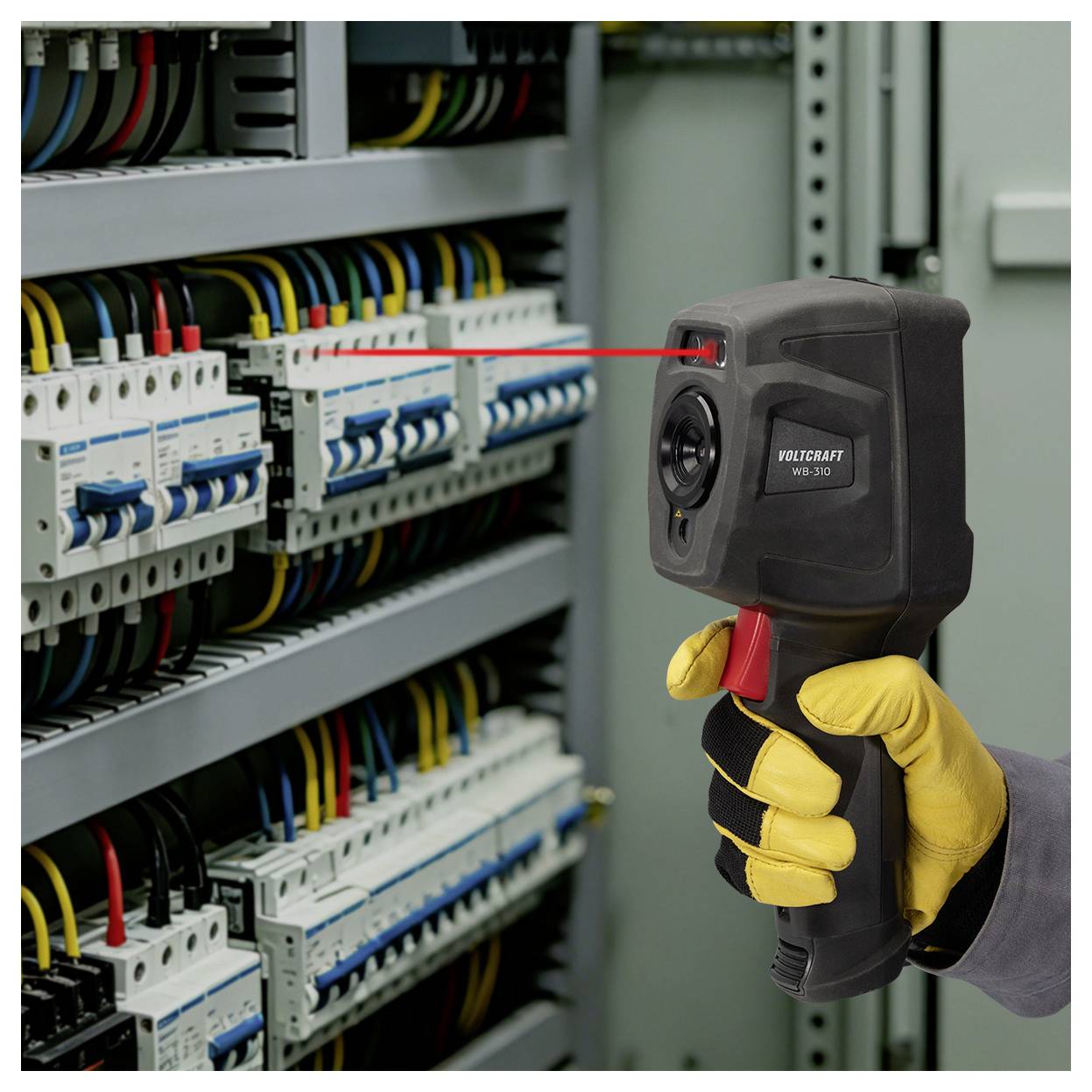

Gloved hand using a red laser temperature gun to inspect electrical breakers in a control panel cabinet.

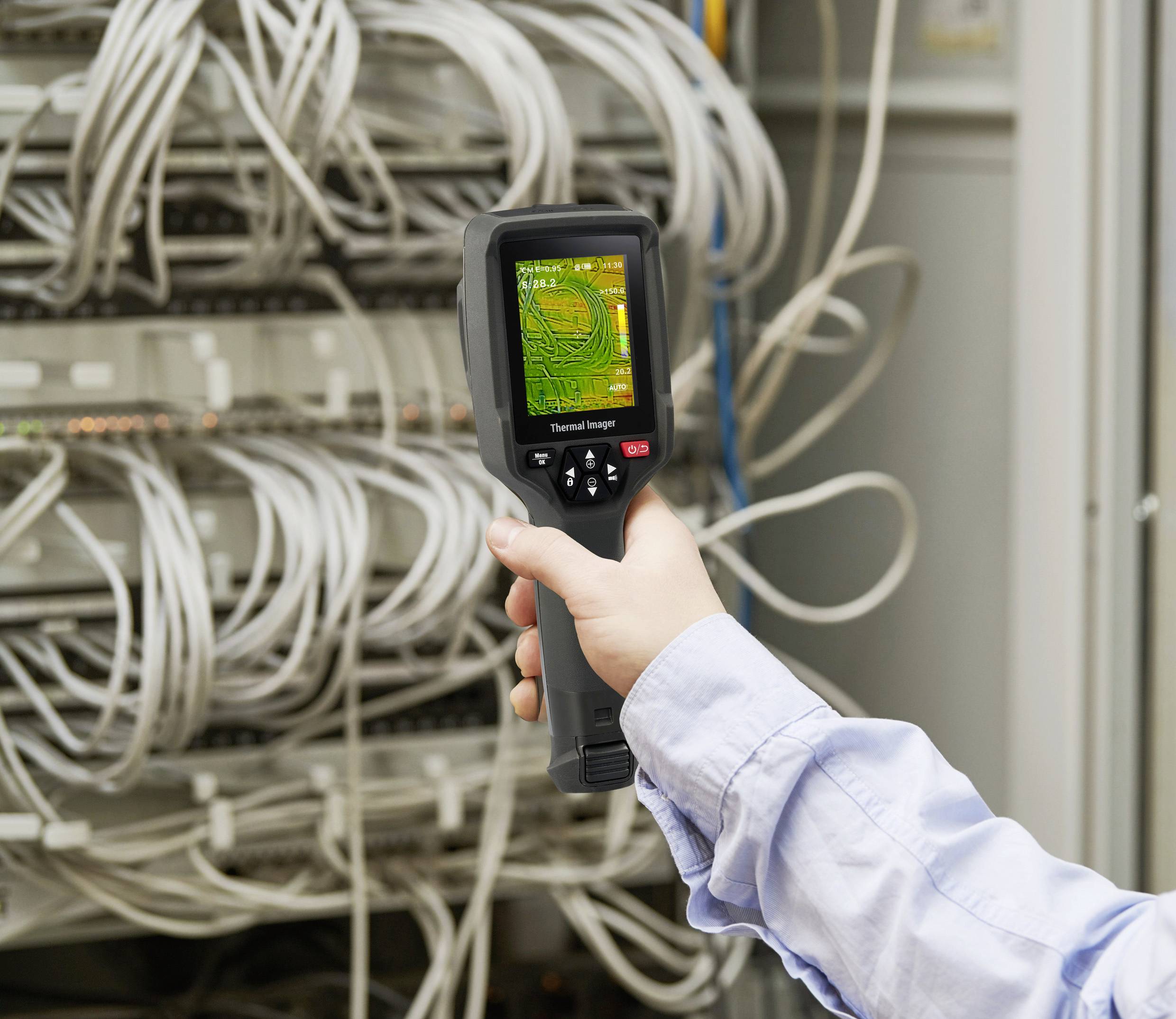

'A person is holding a thermal imaging device aimed at server cables in a network room to check the temperature.'

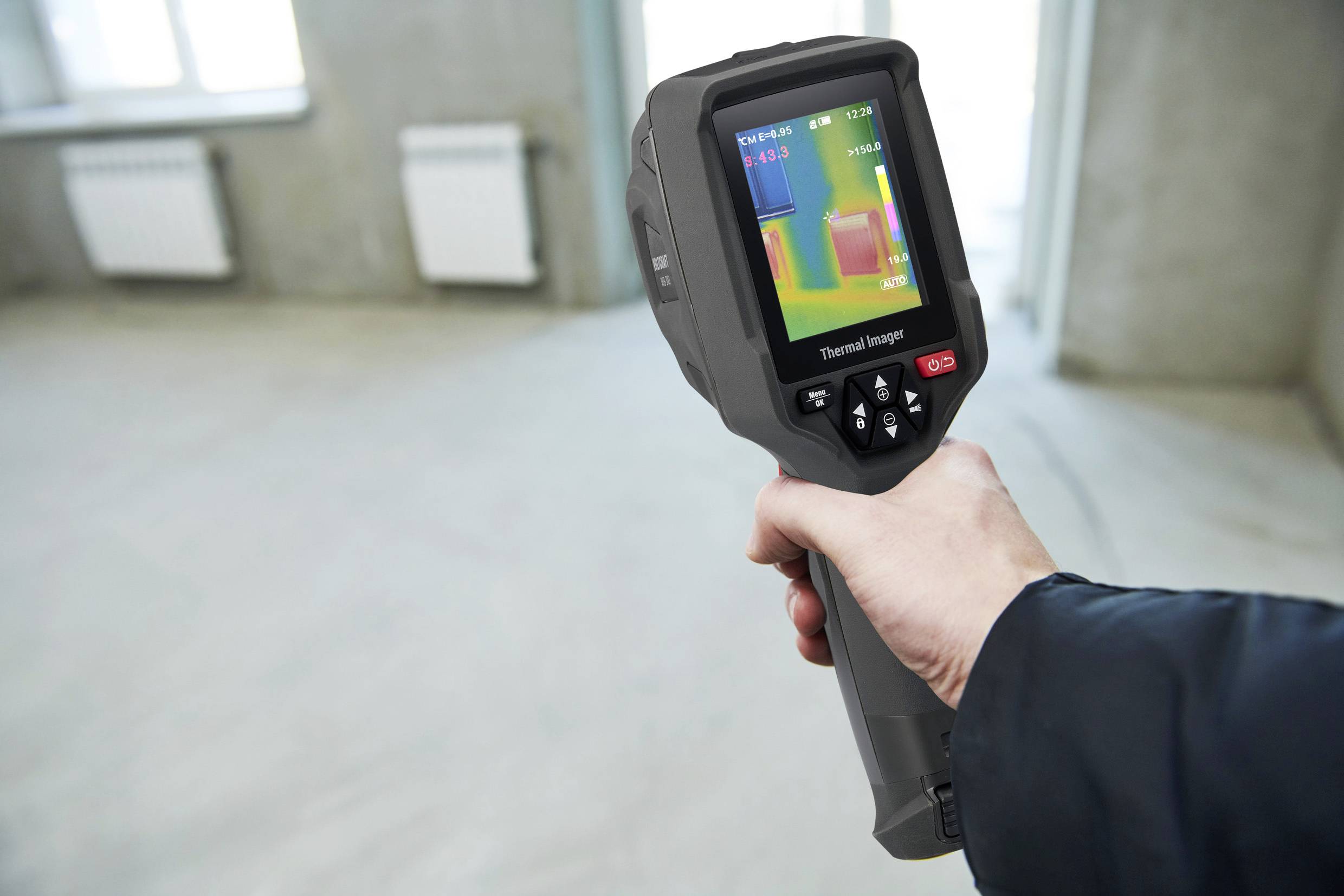

A person is holding a thermal imaging camera in an empty room, displaying temperature variations on a screen.

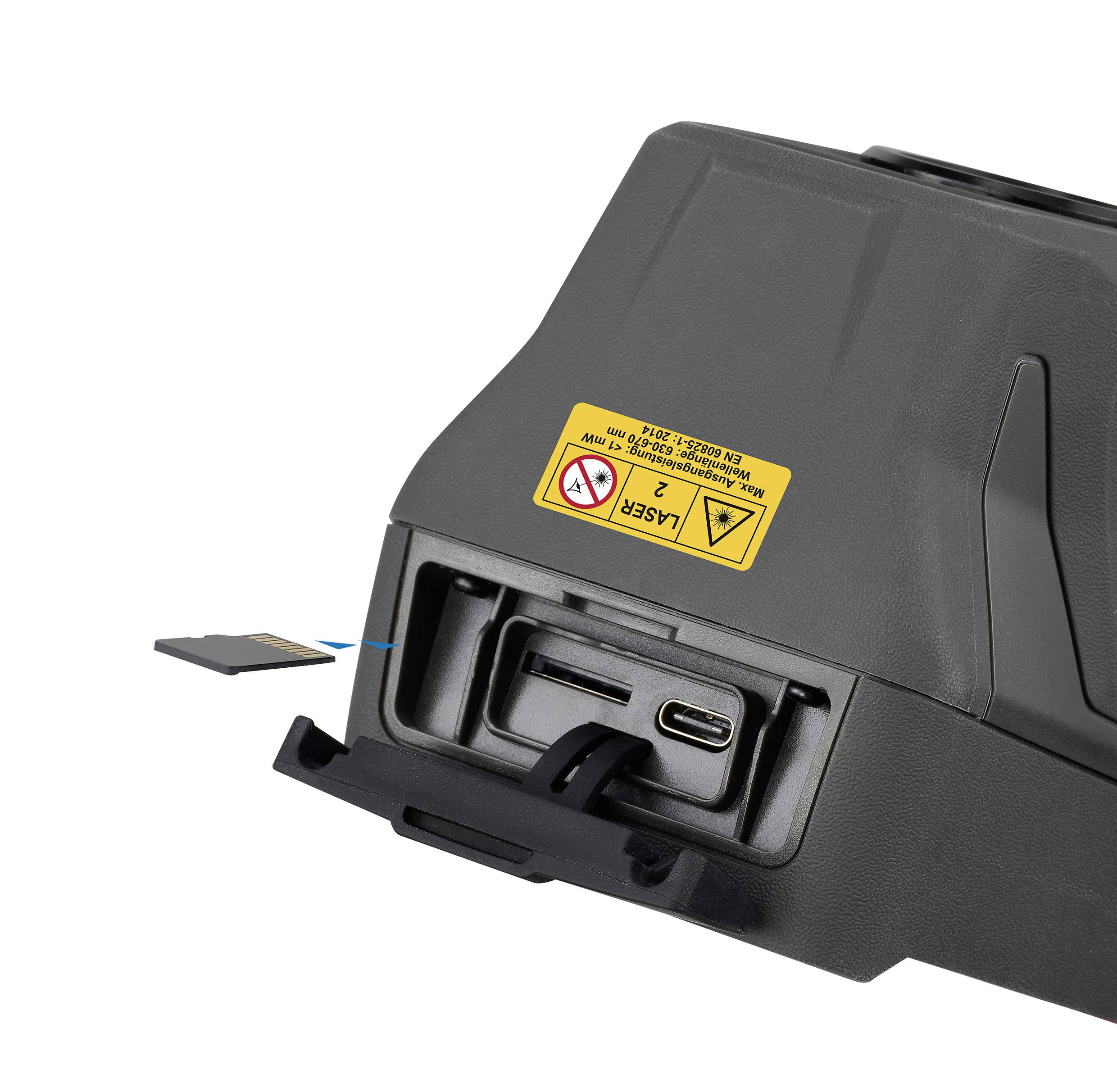

A black device with a yellow warning label. It has slots for USB-C and a memory card, partially extracted from its compartment.

1/15

Our service for you

Datasheet (PDF)

Fast track dispatch on Fri, 25 Sep

89 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 368.91 / piece)

€ 368.91

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT WB-310 Thermal imaging camera

25 Hz Thermal imaging camera
Temperature reading range -20 up to 550 °C
160 x 120 Pixel Bolometer matrix
Thermal sensitivity 50 mK
Display: 71 mm (2.8") LCD, 320 x 240 pixels
2-in-1 visual camera and thermal imaging camera
LED flashlight
8 colour palettes
Wi-Fi function for data transfer and live video output via app
Laser point to positioning accurately the measurement locations/areas

Technical specifications

Type: WB-310

Product type: IR camera

Bolometer array: 160 x 120 Pixel

Interfaces: USB C®

Temperature reading range (max.): 550 °C

Colour schemes: 8

Temperature reading range (min.): -20 °C

Optics: 42° x 32°

Frame rate: 25 Hz

Display resolution: 320 x 240 Pixel

Thermal sensitivity: 50 mK

Dim: (L x W x H) 75.5 x 101 x 235 mm

Temperature resolution: 0.1 °C

Digital zoom: 32 x

Display: 7.112 cm

Emission level (max.): 1.00

Emission level (min.): 0.01

Focus: Fixed-focus

Geometric resolution (IFOV): 4.62 mrad

Weight: 420 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -20 up to 550 °C

Min. focusing distance: 0.5 m

Width: 101 mm

Height: 235 mm

Length: 75.5 mm

Connection: Wi-Fi (802.11 b/g/n)

Power supply (details): 3.7 V

Features: Built-in digital camera
Wi-Fi
Built-in LED light

: Manufacturer's standards (no certificate)

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Type

Bolometer array

Thermal sensitivity

Frame rate

Display resolution

Temperature reading range (max.)

Colour schemes

VOLTCRAFT WB-310 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Wi-Fi, Built-in LED light

Item no:2890403

This article

WB-310

160 x 120 Pixel

50 mK

25 Hz

320 x 240 Pixel

550 °C

VOLTCRAFT WB-430 IR camera -20 up to 650 °C 384 x 288 Pixel 50 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstands falls from heights of up to 2 m

Item no:2890410

WB-430

384 x 288 Pixel

35 mK

50 Hz

640 x 480 Pixel

650 °C

VOLTCRAFT WB-420 IR camera -20 up to 550 °C 256 x 192 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstands falls from heights of up to 2 m

Item no:2890411

WB-420

256 x 192 Pixel

50 mK

25 Hz

640 x 480 Pixel

550 °C

VOLTCRAFT WB-410 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstands falls from heights of up to 2 m

Item no:2890412

WB-410

160 x 120 Pixel

50 mK

25 Hz

648 x 480 Pixel

550 °C

VOLTCRAFT WB-410 IR camera Calibrated to (ISO standards) -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstands falls from heights of up to 2 m

Item no:3049183

WB-410

160 x 120 Pixel

50 mK

25 Hz

648 x 480 Pixel

550 °C

VOLTCRAFT WB-420 IR camera Calibrated to (ISO standards) -20 up to 550 °C 256 x 192 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstands falls from heights of up to 2 m

Item no:3049184

WB-420

256 x 192 Pixel

50 mK

25 Hz

640 x 480 Pixel

550 °C

VOLTCRAFT WB-430 IR camera Calibrated to (ISO standards) -20 up to 650 °C 384 x 288 Pixel 50 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstands falls from heights of up to 2 m

Item no:3049185

WB-430

384 x 288 Pixel

35 mK

50 Hz

640 x 480 Pixel

650 °C

VOLTCRAFT WB-310 IR camera Calibrated to (ISO standards) -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Wi-Fi, Built-in LED light

Item no:3049186

WB-310

160 x 120 Pixel

50 mK

25 Hz

320 x 240 Pixel

550 °C

VOLTCRAFT WB-410 IR camera Calibrated to (DAkkS standards) -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstands falls from heights of up to 2 m

Item no:3049833

WB-410

160 x 120 Pixel

50 mK

25 Hz

648 x 480 Pixel

550 °C

VOLTCRAFT WB-420 IR camera Calibrated to (DAkkS standards) -20 up to 550 °C 256 x 192 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstands falls from heights of up to 2 m

Item no:3049834

WB-420

256 x 192 Pixel

50 mK

25 Hz

640 x 480 Pixel

550 °C

Documents & Downloads

Datasheet

Datasheet 2890403 VOLTCRAFT WB-310 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Wi-Fi, Built-in LED light

User & Safety Instructions

User & Safety Instructions 2890403 VOLTCRAFT WB-310 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Wi-Fi, Built-in LED light

Warranty Terms

Warranty Terms 2890403 VOLTCRAFT WB-310 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Wi-Fi, Built-in LED light

Download

Download 2890403 VOLTCRAFT WB-310 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Wi-Fi, Built-in LED light

Description

VOLTCRAFT's WB-310 is a compact thermal imaging camera reliably providing excellent thermal images for pros in industry and trade. With three selectable colour scales and a large reading range from -20°C to +550°C, the WB-310 imager is perectly suited for a wide variety of applications. Even under the most difficult conditions, the WB-300 is up to the job thanks to its robust and ergonomic design and its easy handling. A built-in micro-SD card slot allows images and readings being stored and evaluated externally using the included analysis software.

This text is machine translated.

Features

Zoom: 1 - 32x continuous, digital zoom
8 colour palettes: Iron, Rainbow, White hot, Black hot, Brown hot, Blue-red, Hot-cold, Feather
Focus free
Auto power off
Spot: center spot
Built-in 2 megapixel digital camera
Media storage: Internal 3.5 GB EMMC, Max. 32 GB microSD card
Image mode: IR image, Visual image, Auto fusion

Scope of delivery

Thermal imager
Li-ion rechargeable battery
microSD card with adapter
PC software CD
USB cable
Carrying case
Operating instructions
