Buy Laserliner ThermoCamera HighSense Pro IR camera -20 up to +650 °C 384 x 288 Pixel 9 Hz

A digital infrared thermometer with a screen displays a thermal imaging view. The device has control buttons beneath the display.

Laserliner ThermoCamera HighSense Pro IR camera -20 up to +650 °C 384 x 288 Pixel 9 Hz-1

Infrared camera kit with camera, battery, charger, cables and plugs; shows thermal images for temperature measurement.

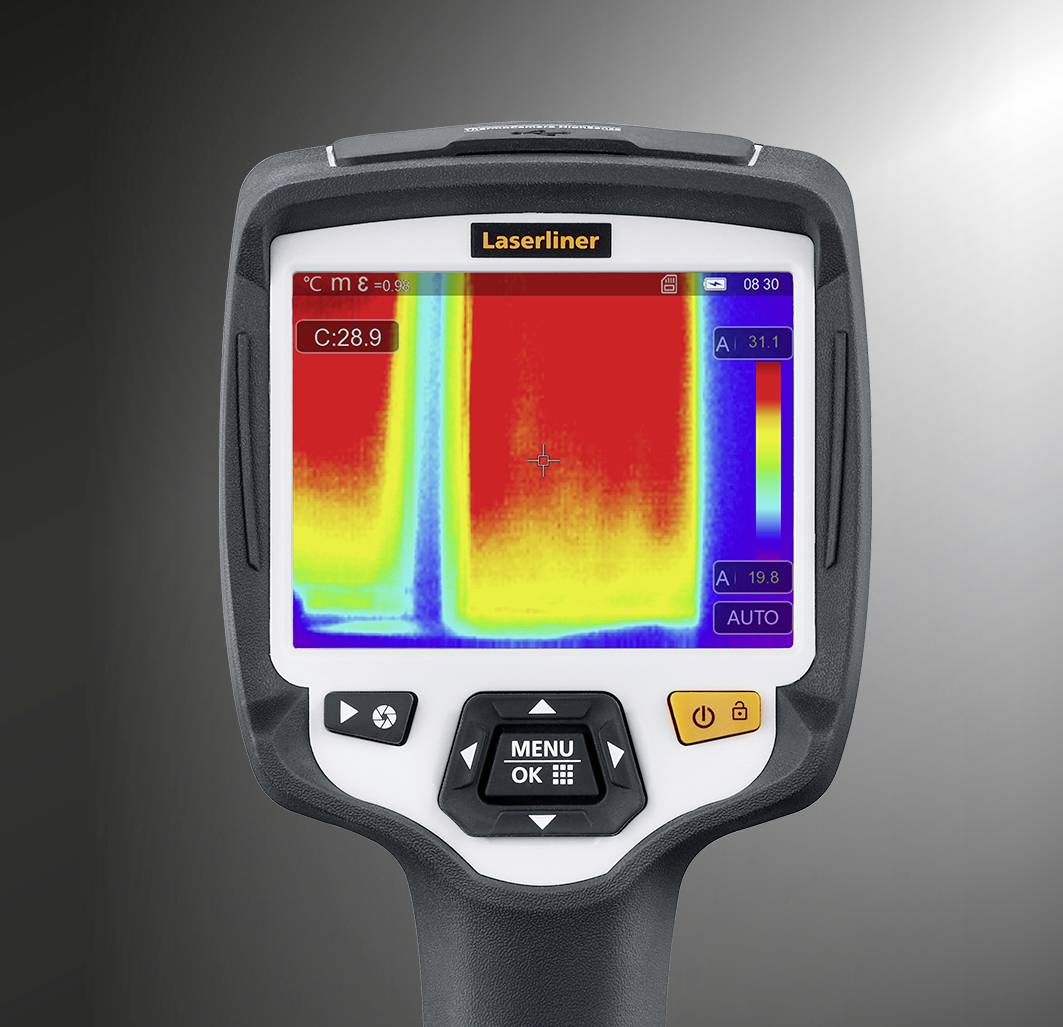

Thermal imaging camera shows heat map with predominantly red and yellow areas. Temperature display on the left: 28.9 degrees Celsius.

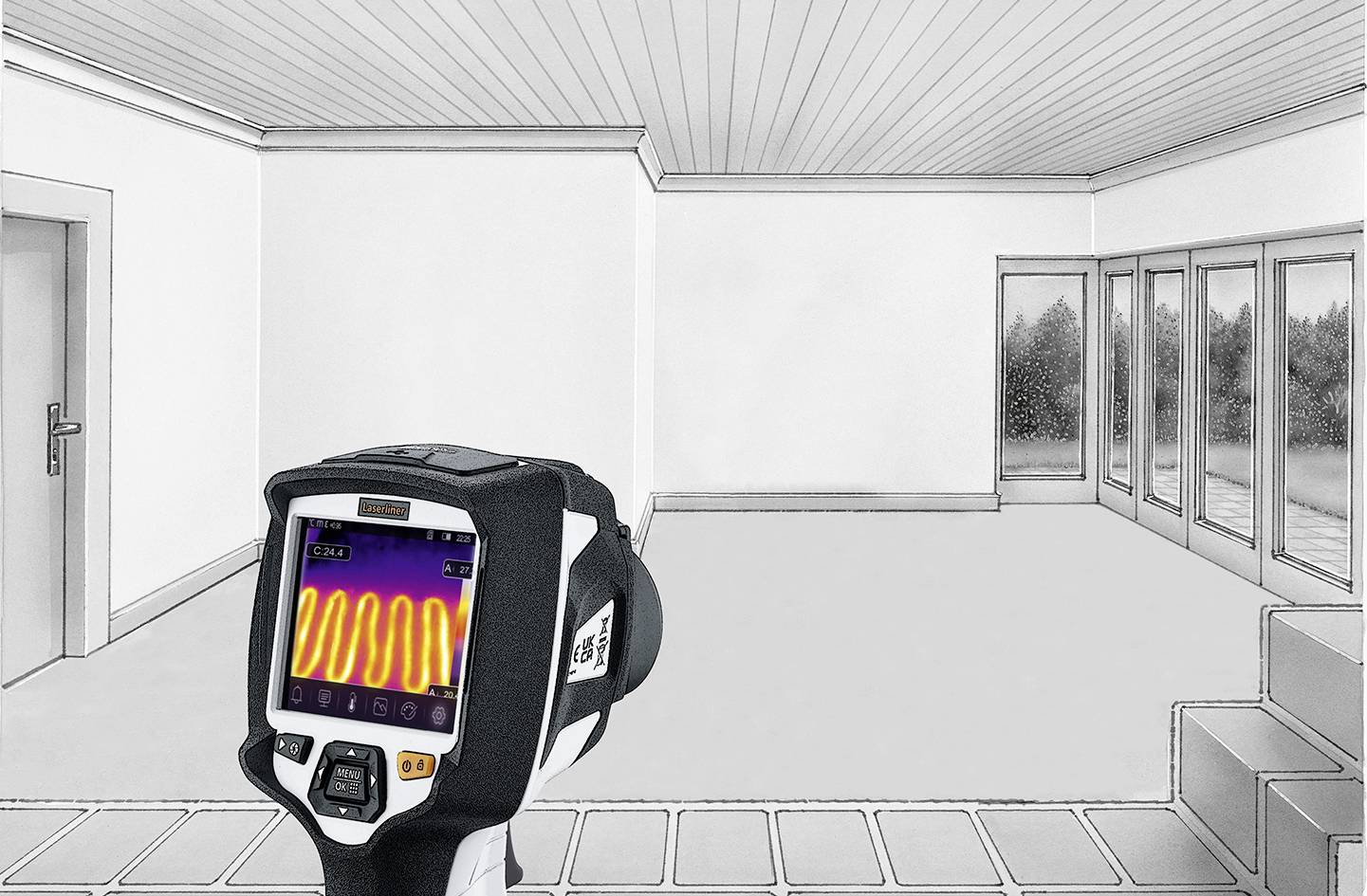

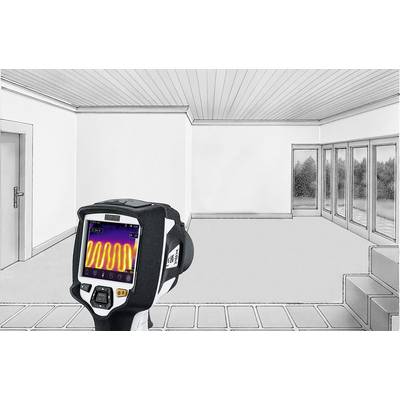

A thermal imaging camera shows the temperature distribution in an empty room. Warm areas are depicted in yellow and orange.

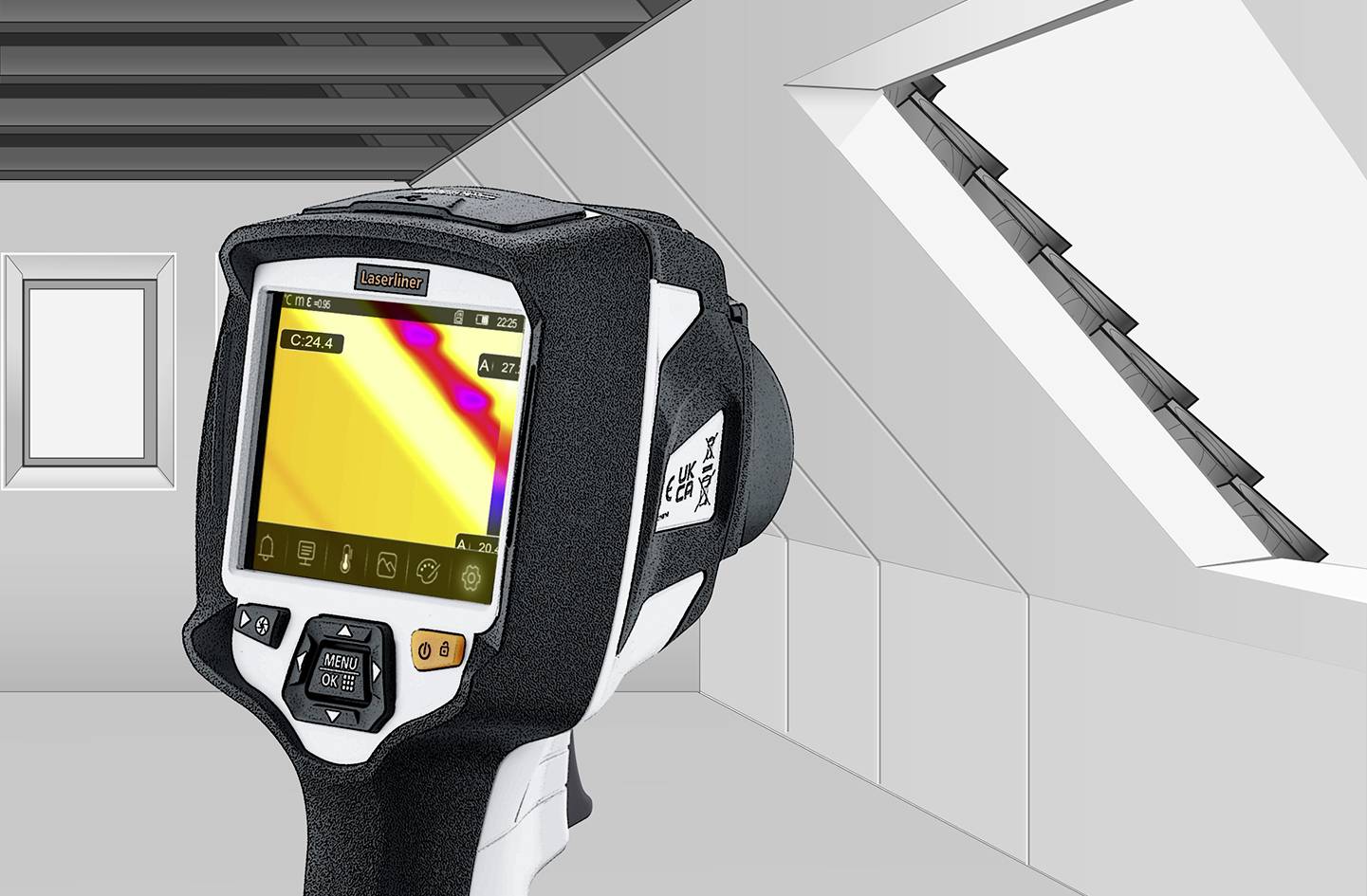

A thermal imaging camera shows a coloured thermogram of an attic, depicting areas with different temperatures.

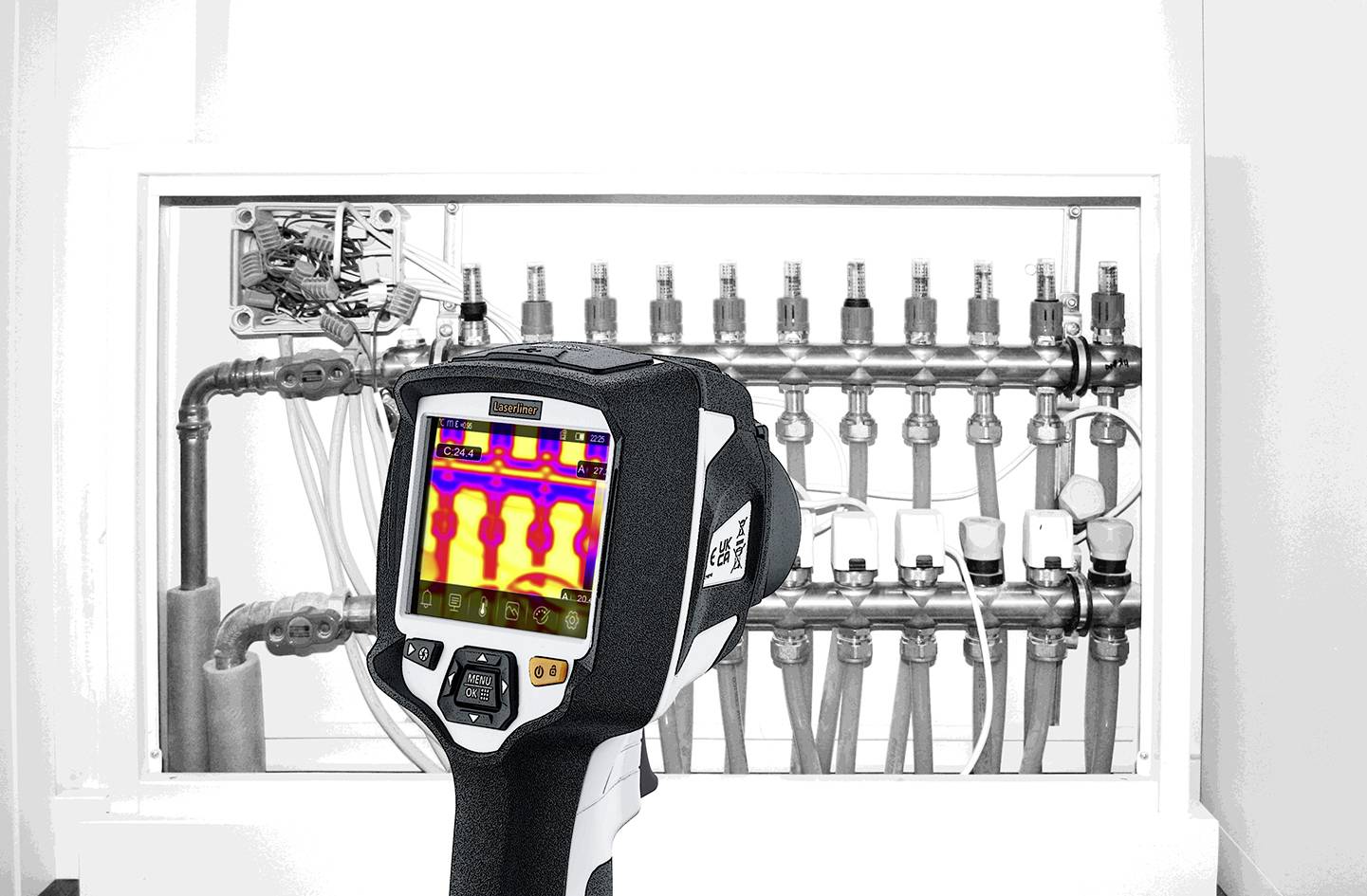

Thermal imaging camera shows the thermal distribution of a heating system with multiple valves and pipes.

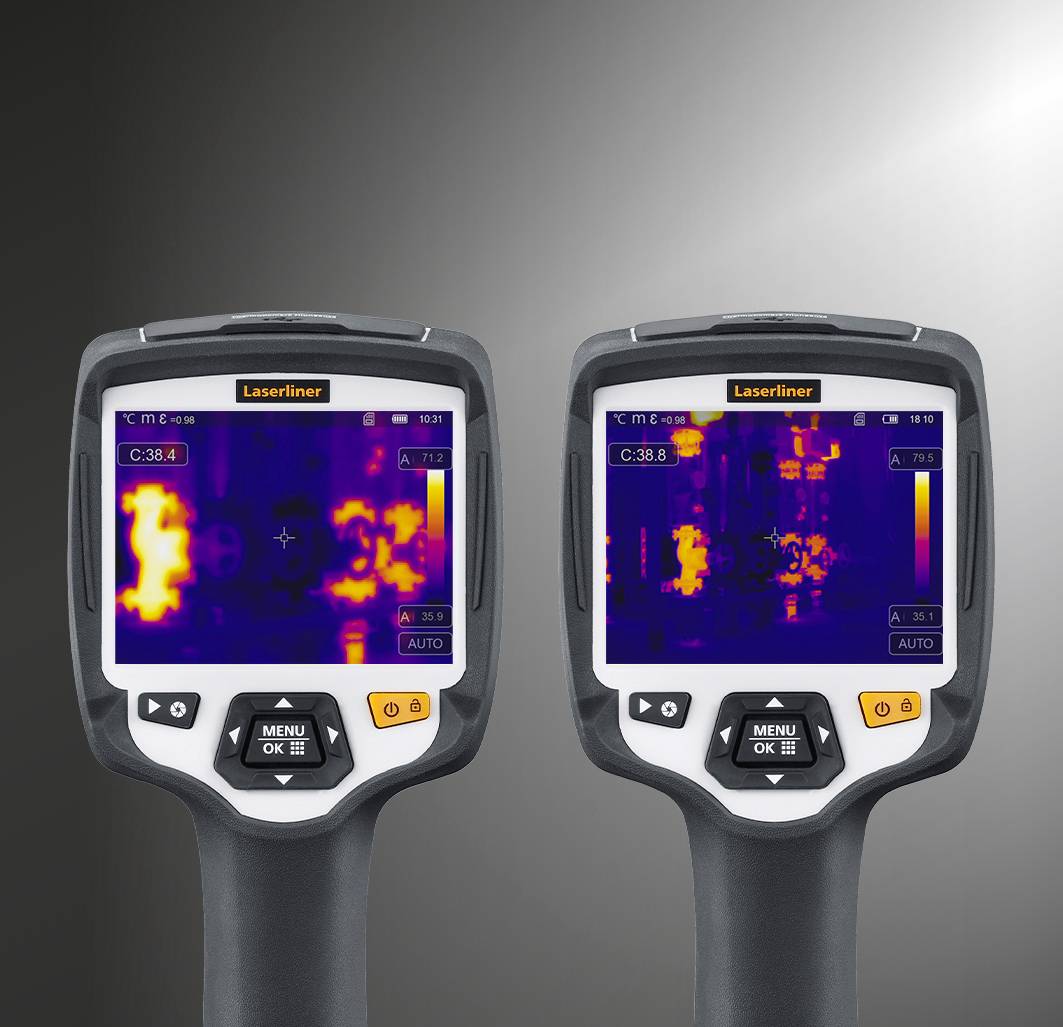

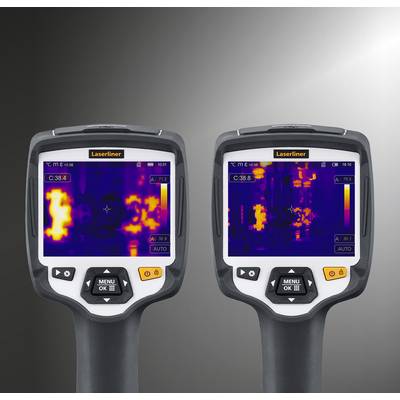

Two infrared thermography cameras show thermal images of objects in various colours for temperature measurement and analysis.

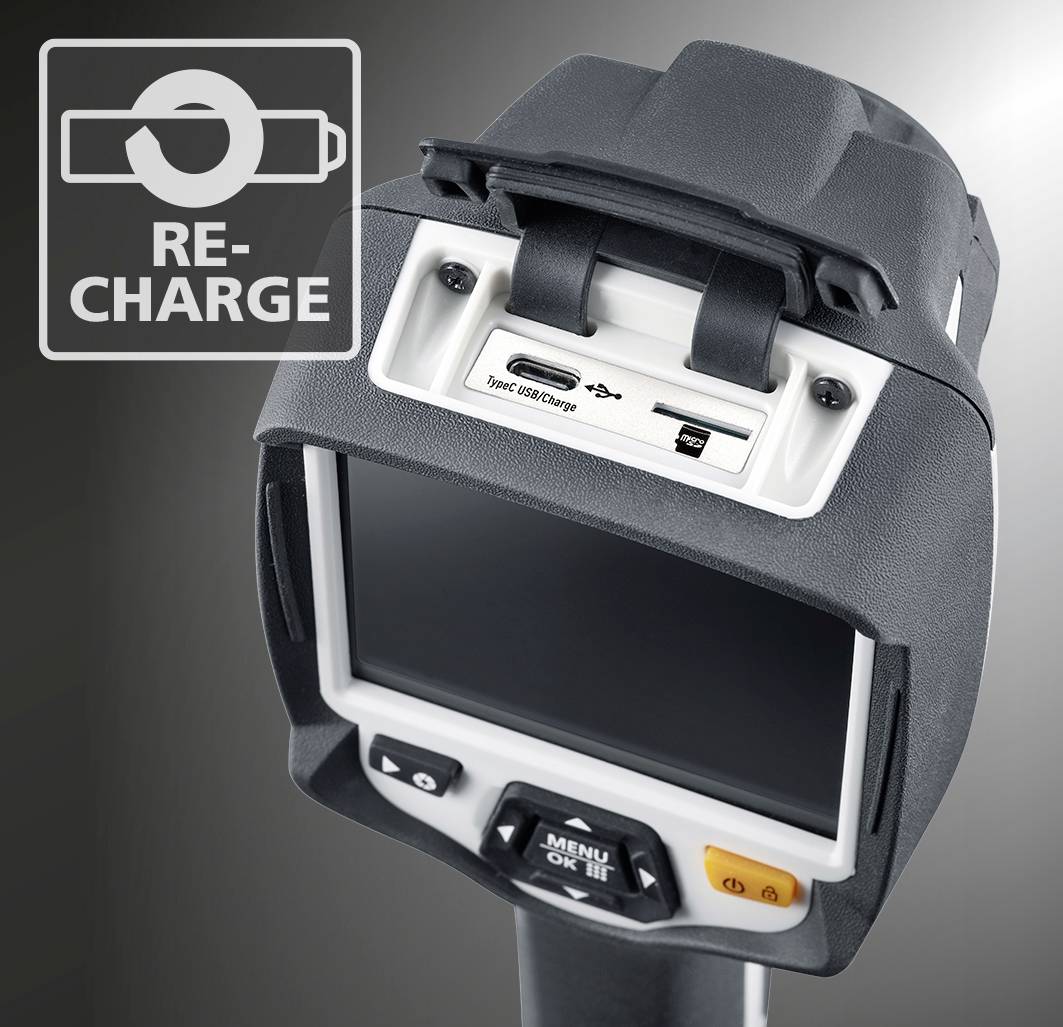

A digital handheld device with a screen, next to a symbol with a circular arrow and the text 'RE-CHARGE', indicating recharging.

1/9

Fast track dispatch on Fri, 25 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,399.16 / piece)

€ 2,399.16

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Thermal imaging camera Thermal Camera HighSense Pro

9 Hz Thermal imaging camera
Temperature reading range -20 up to +650 °C
384 x 288 Pixel Bolometer matrix
Thermal sensitivity 50 mK

Technical specifications

Type: ThermoCamera HighSense Pro

Product type: IR camera

Bolometer array: 384 x 288 Pixel

Temperature reading range (max.): +650 °C

Temperature reading range (min.): -20 °C

Optics: 41.5 ° x 31.1 °

Frame rate: 9 Hz

Display resolution: 640 x 480 Pixel

: IP54

Thermal sensitivity: 50 mK

Dim: (L x W x H) 112 x 95 x 230 mm

Digital zoom: 32 x

Display: Large 3.5" TFT display

Weight: 530 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -20 up to +650 °C

Width: 95 mm

Height: 230 mm

Length: 112 mm

Power supply (details): Li-Ion 3.7V/2.6Ah battery pack

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2842858 Laserliner ThermoCamera HighSense Pro IR camera -20 up to +650 °C 384 x 288 Pixel 9 Hz

Warranty Terms

Warranty Terms 2842858 Laserliner ThermoCamera HighSense Pro IR camera -20 up to +650 °C 384 x 288 Pixel 9 Hz

Description

The infrared camera offers an infrared sensor with especially high resolution for detailed image analyzes and for optimum visualization of the smallest temperature differences. Thanks to a large measurement range, field of view and field of view, it has many possible applications, including in construction, mechanical engineering and electrical engineering. Via the CustomApp function the infrared camera can be configured quickly for various standard applications even in extensive parameter setups. The very high thermal sensitivity allows the detection of thermal bridges and insulation faults in buildings, analysis of heating cables, locating overheating in components, cables and fuses and determining defective solar cells in PV modules.

This text is machine translated.

Features

Optimal, high resolution infrared camera for applications in construction, mechanical engineering and electrical engineering - perfect for detailed image analysis

Scope of delivery

ThermoCamera HighSense Pro2 x Li-Ion battery packCharger with mains charger and international. Adapters USB cable8 GB Micro-SD-Cards with AdapterCarrying case
