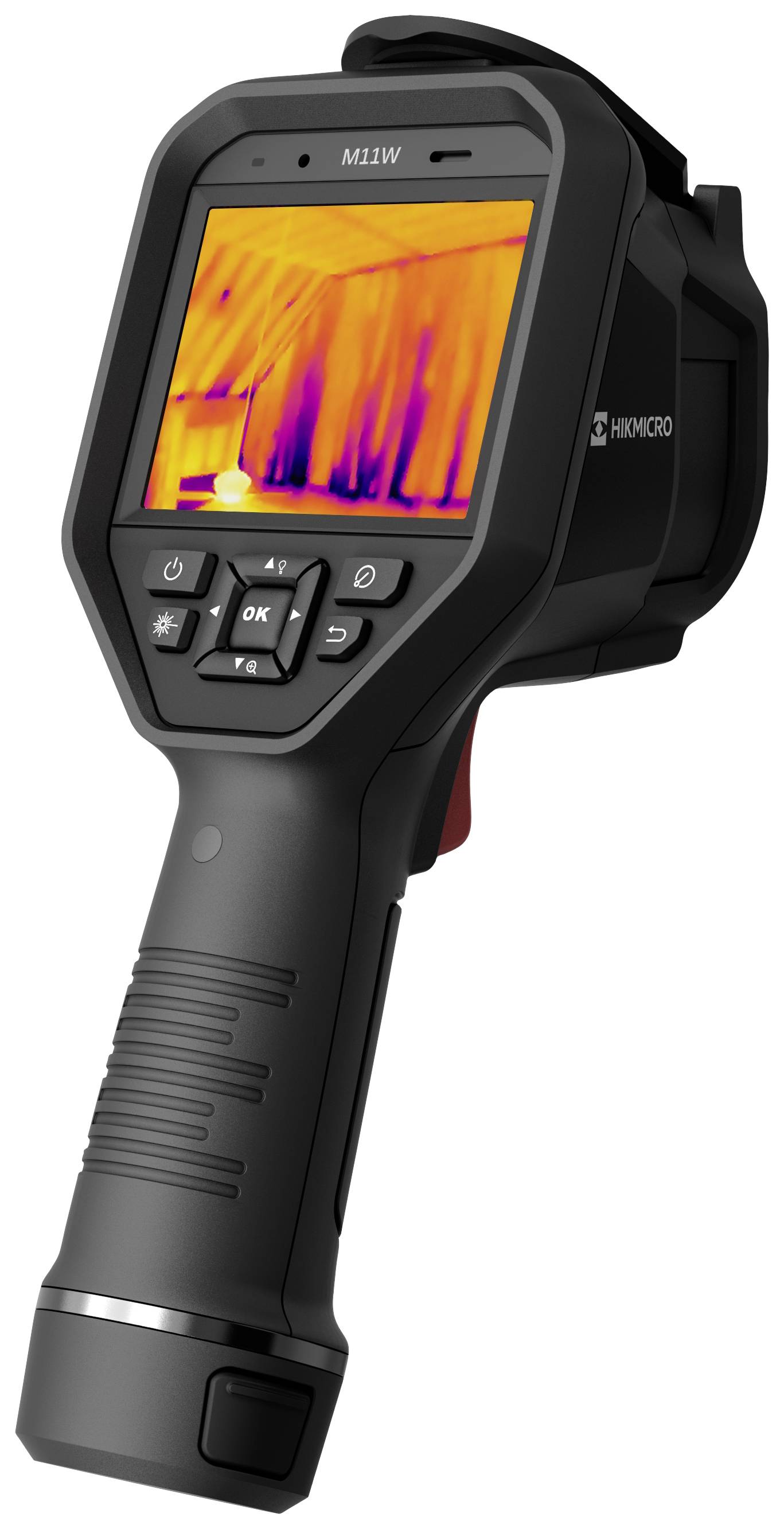

Handheld infrared camera showing a thermal imaging display. Used for leak detection and inspection.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 810.92 / piece)

€ 810.92

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

Handheld Thermographic-Camera

25 Hz Thermal imaging camera
Temperature reading range -20 up to +550 °C
192 x 144 Pixel Bolometer matrix
Thermal sensitivity 40 mK

Technical specifications

Type: M11W

Product type: IR camera

Bolometer array: 192 x 144 Pixel

Interfaces: Wi-Fi
Bluetooth
USB C®

Temperature reading range (max.): +550 °C

Temperature reading range (min.): -20 °C

Optics: 37.2° x 27.8°

Frame rate: 25 Hz

Display resolution: 640 x 480 Pixel

: IP54

Thermal sensitivity: 40 mK

Dim: (L x W x H) 244 x 100 x 104 mm

Digital zoom: 8 x

Display: 3.5"

Geometric resolution (IFOV): 3.33 mrad

Weight: 660 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -20 up to +550 °C

Min. focusing distance: 0.5 m

Width: 100 mm

Height: 104 mm

Length: 244 mm

Features: Wi-Fi
Touchscreen

Documents & Downloads

Datasheet

Datasheet 2825619 HIKMICRO M11W IR camera -20 up to +550 °C 192 x 144 Pixel 25 Hz Wi-Fi, Touchscreen

User & Safety Instructions

User & Safety Instructions 2825619 HIKMICRO M11W IR camera -20 up to +550 °C 192 x 144 Pixel 25 Hz Wi-Fi, Touchscreen

Warranty Terms

Warranty Terms 2825619 HIKMICRO M11W IR camera -20 up to +550 °C 192 x 144 Pixel 25 Hz Wi-Fi, Touchscreen

Description

The camera is a compact infrared camera with a high-resolution optical 8 MP camera, a large temperature range of -20°C to +550°C and a 3.5" LCD touch-screen.
