Name: FLIR E76 Dual FOV 24° - 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi, Touchscreen
Brand: FLIR
SKU: 3533055
Availability: BackOrder

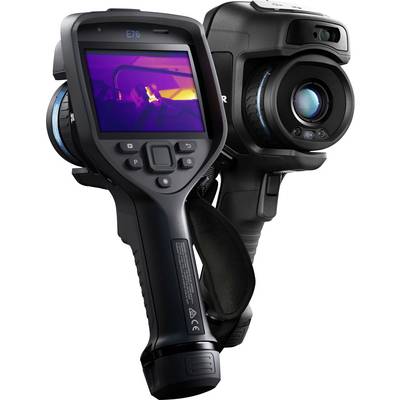

'Two handheld thermal imaging cameras, one showing a screen with thermal data, highlighting areas of heat in varying colors.'

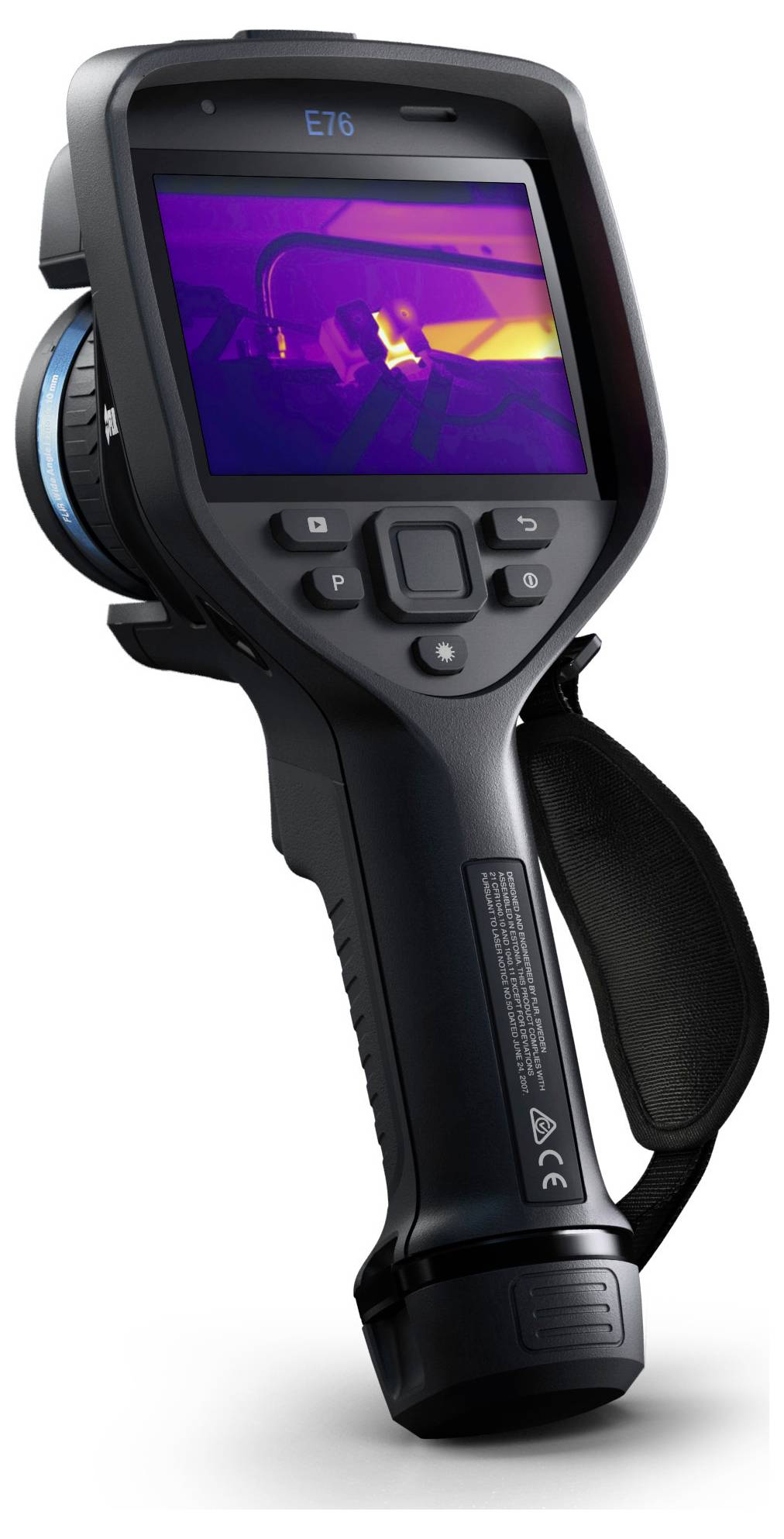

A thermal imaging camera displaying a heat signature on its screen, revealing areas of varying temperature in a scene.

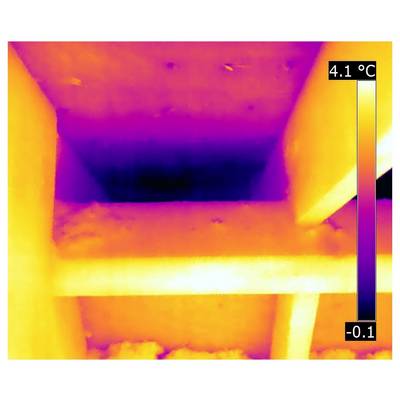

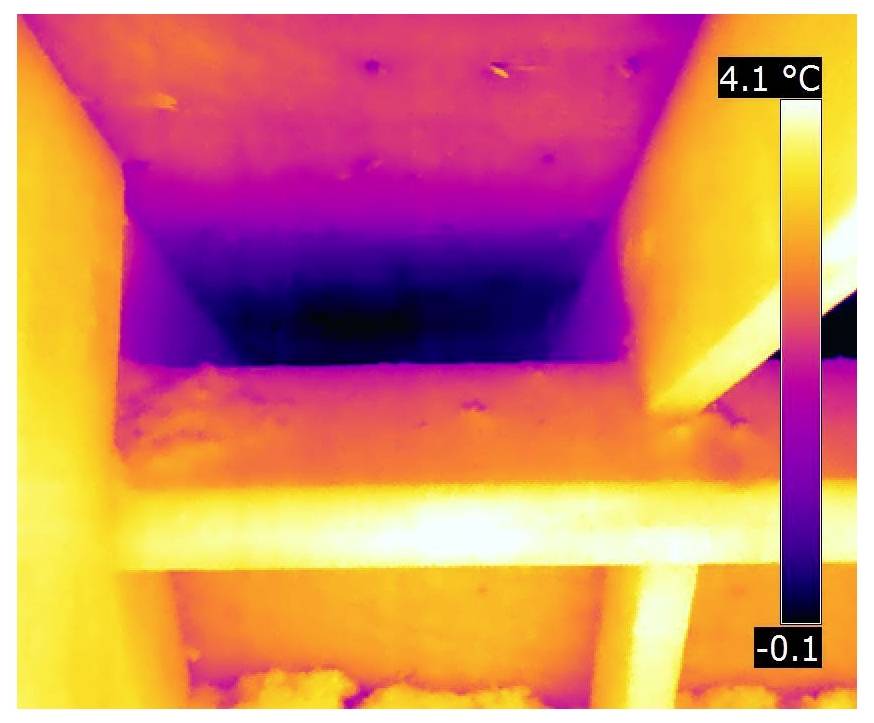

Thermal image showing a structure with temperature scale on the right. Cooler areas appear dark, warmer areas appear bright orange.

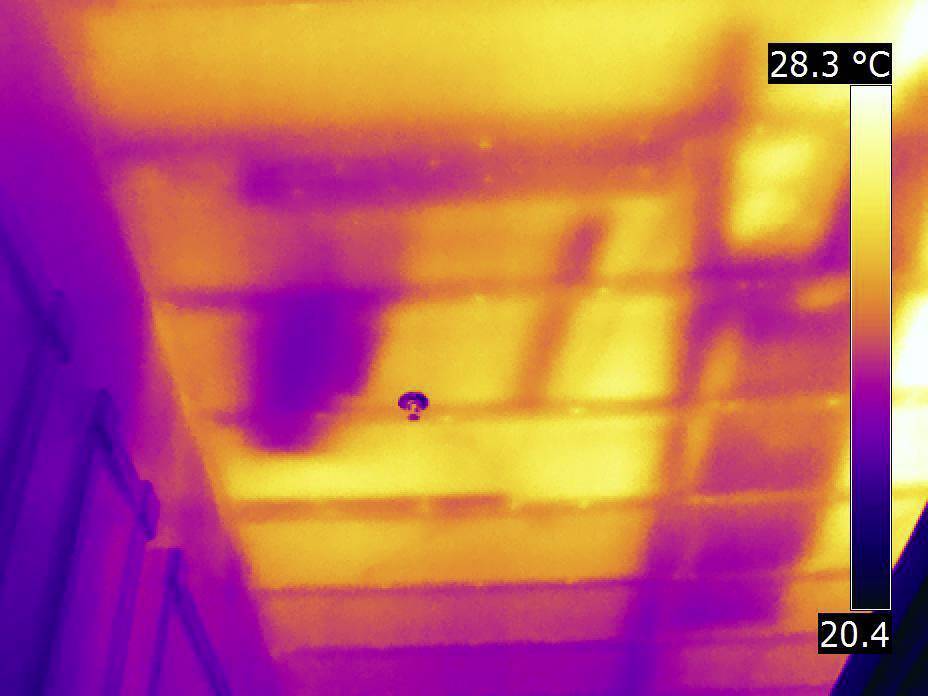

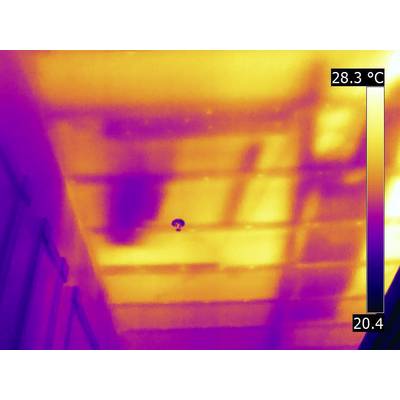

Thermal image of a ceiling shows temperature variations, ranging from 20.4°C to 28.3°C, highlighting warmer areas in yellow and cooler in purple.

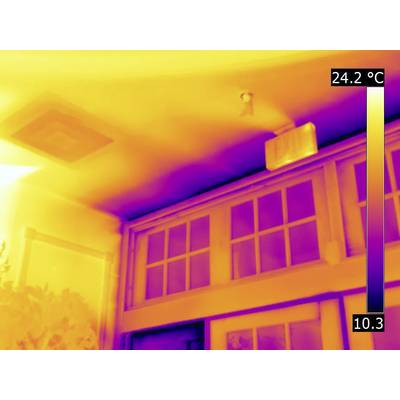

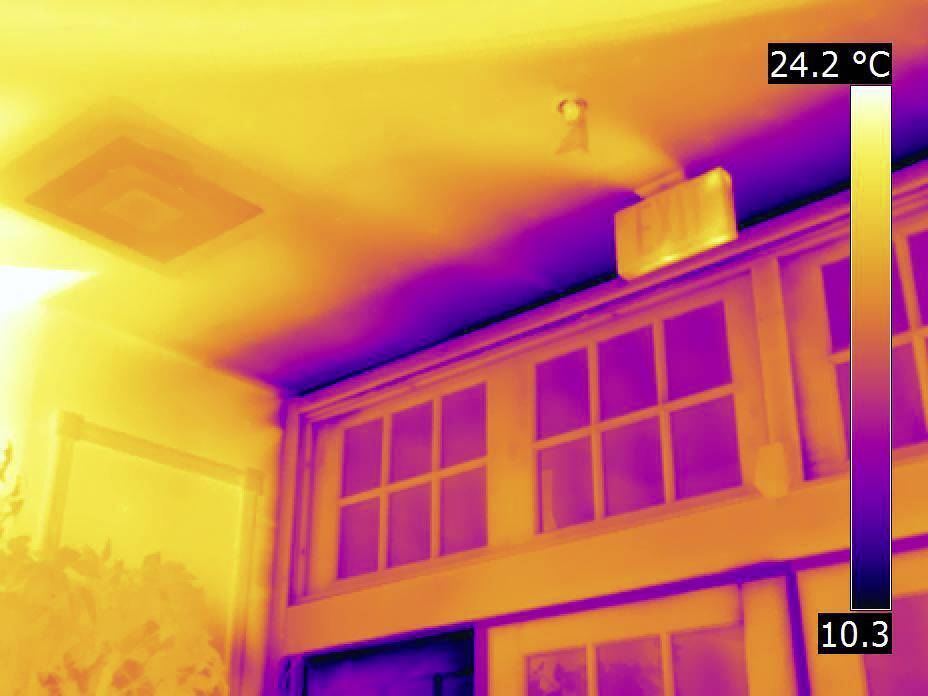

Thermal image showing a door with an exit sign above, displaying temperature range from 10.3°C to 24.2°C.

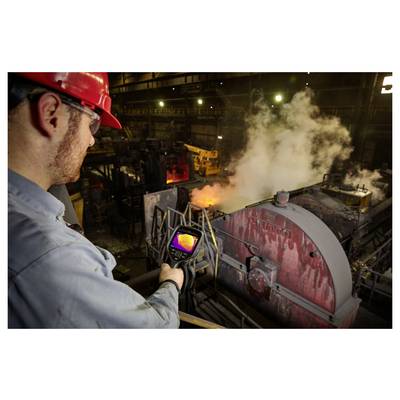

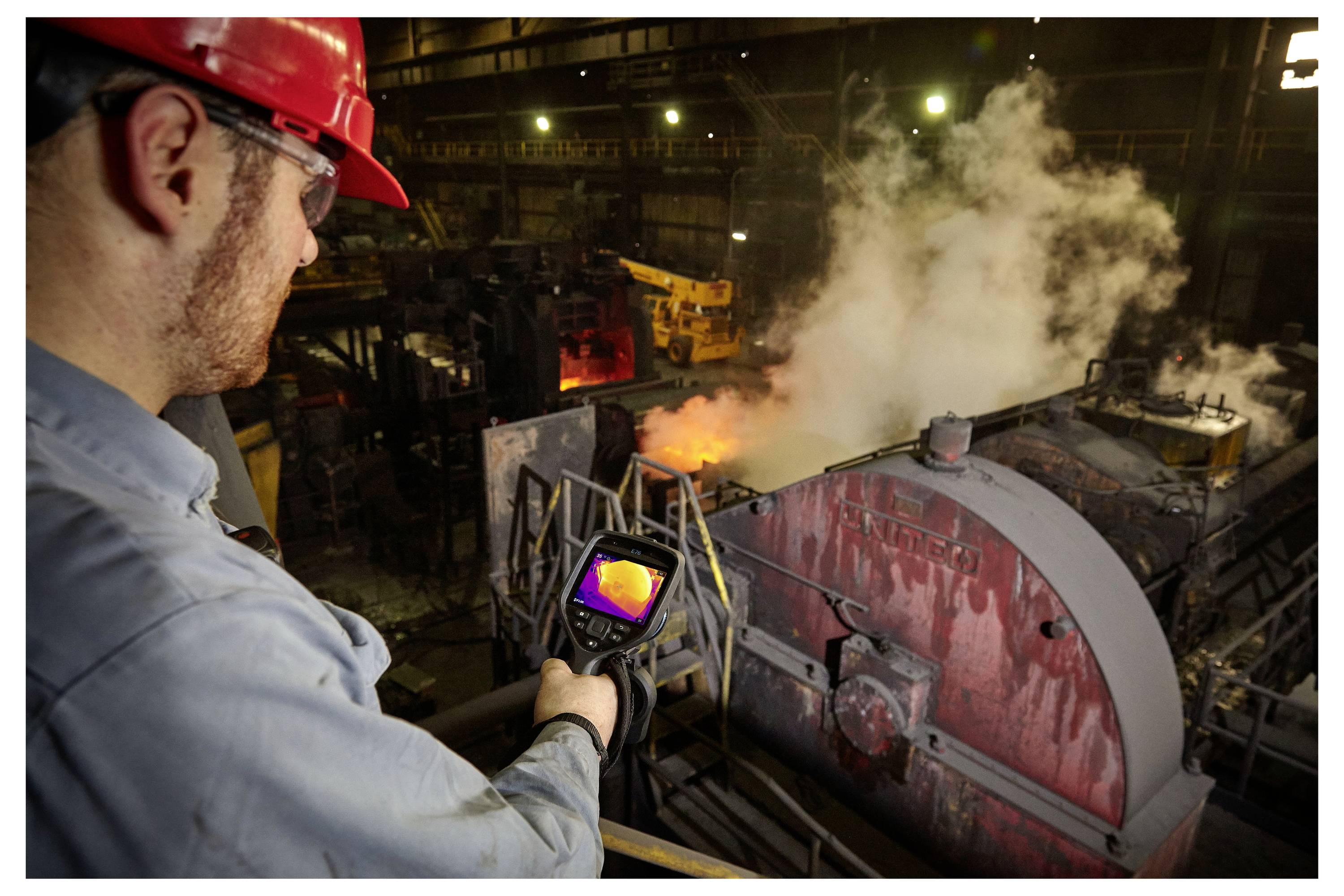

A factory worker wearing a red hard hat uses a thermal camera to monitor machinery in an industrial setting, with steam rising in the background.

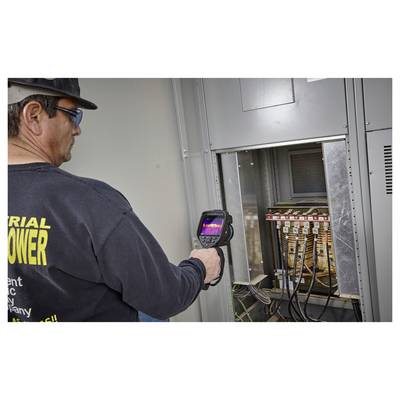

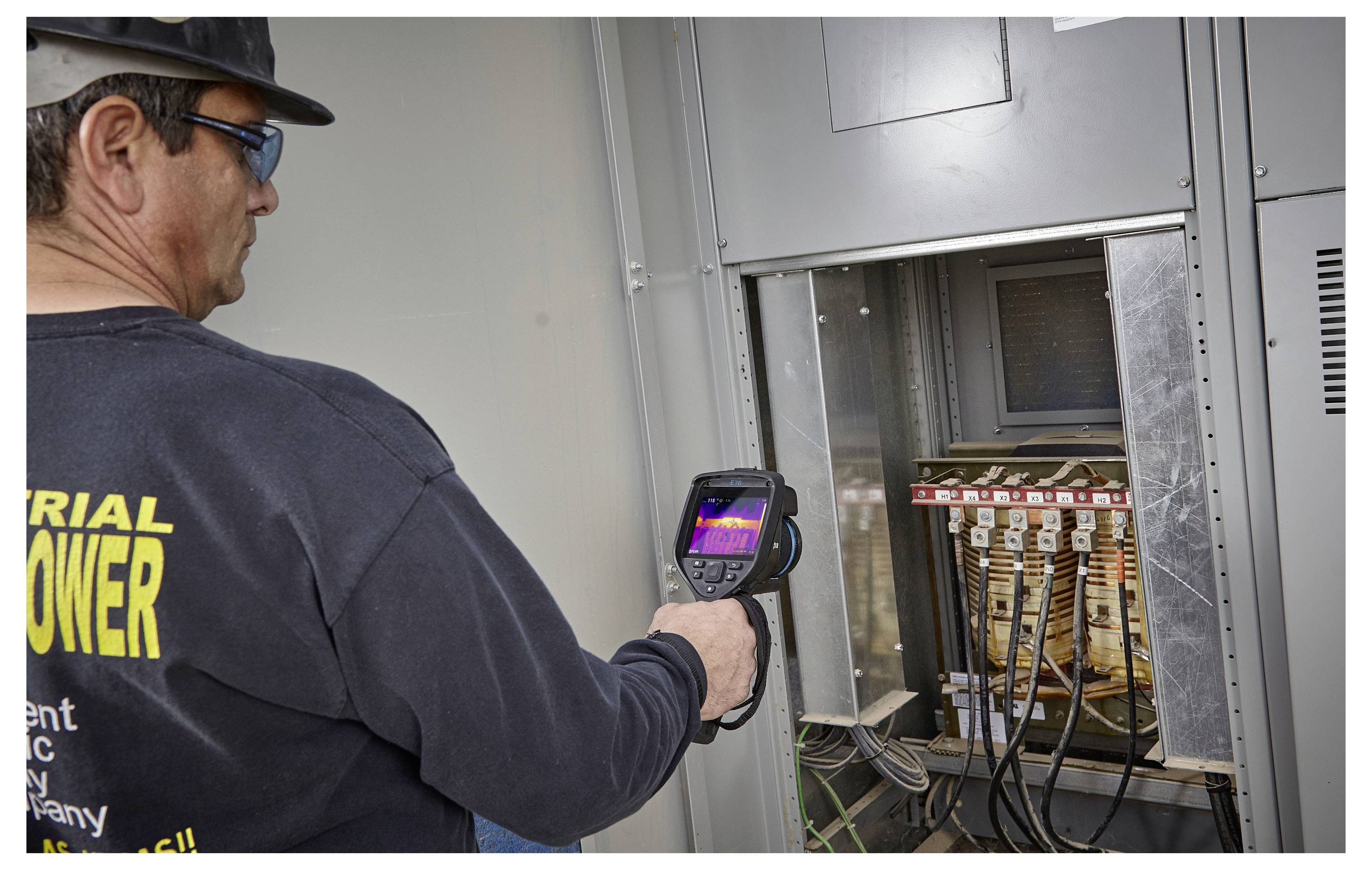

A worker uses a thermal imaging camera to inspect electrical components, aiming to identify temperature irregularities for safety.

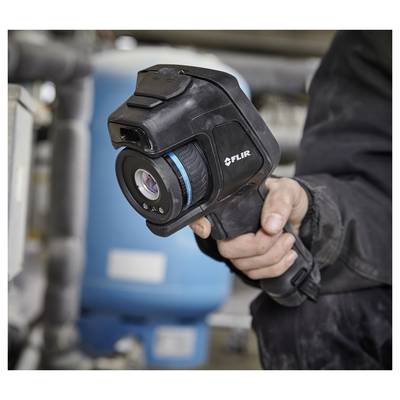

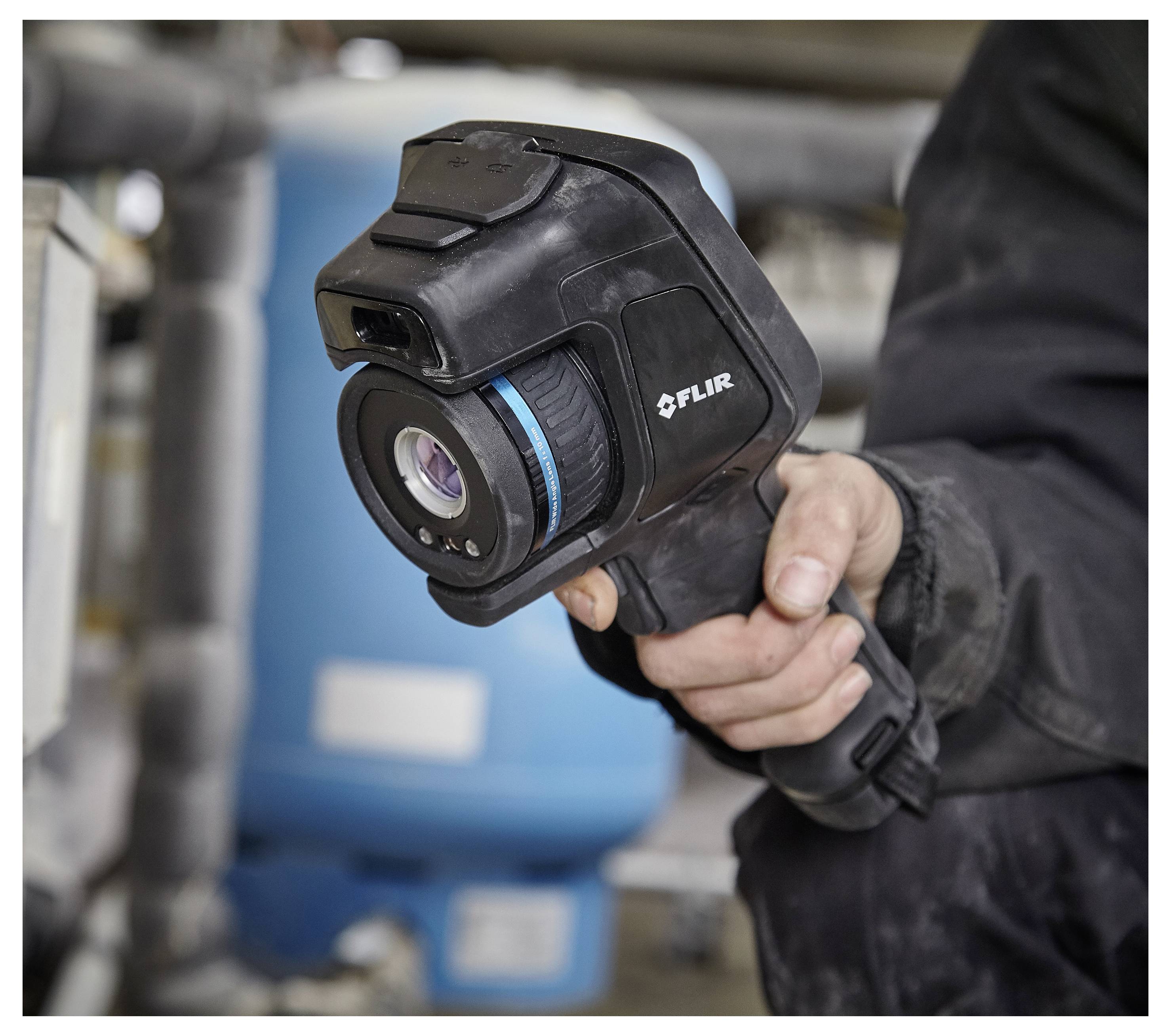

A person holds a FLIR thermal imaging camera, used for detecting heat patterns, in an industrial setting with pipes and equipment.

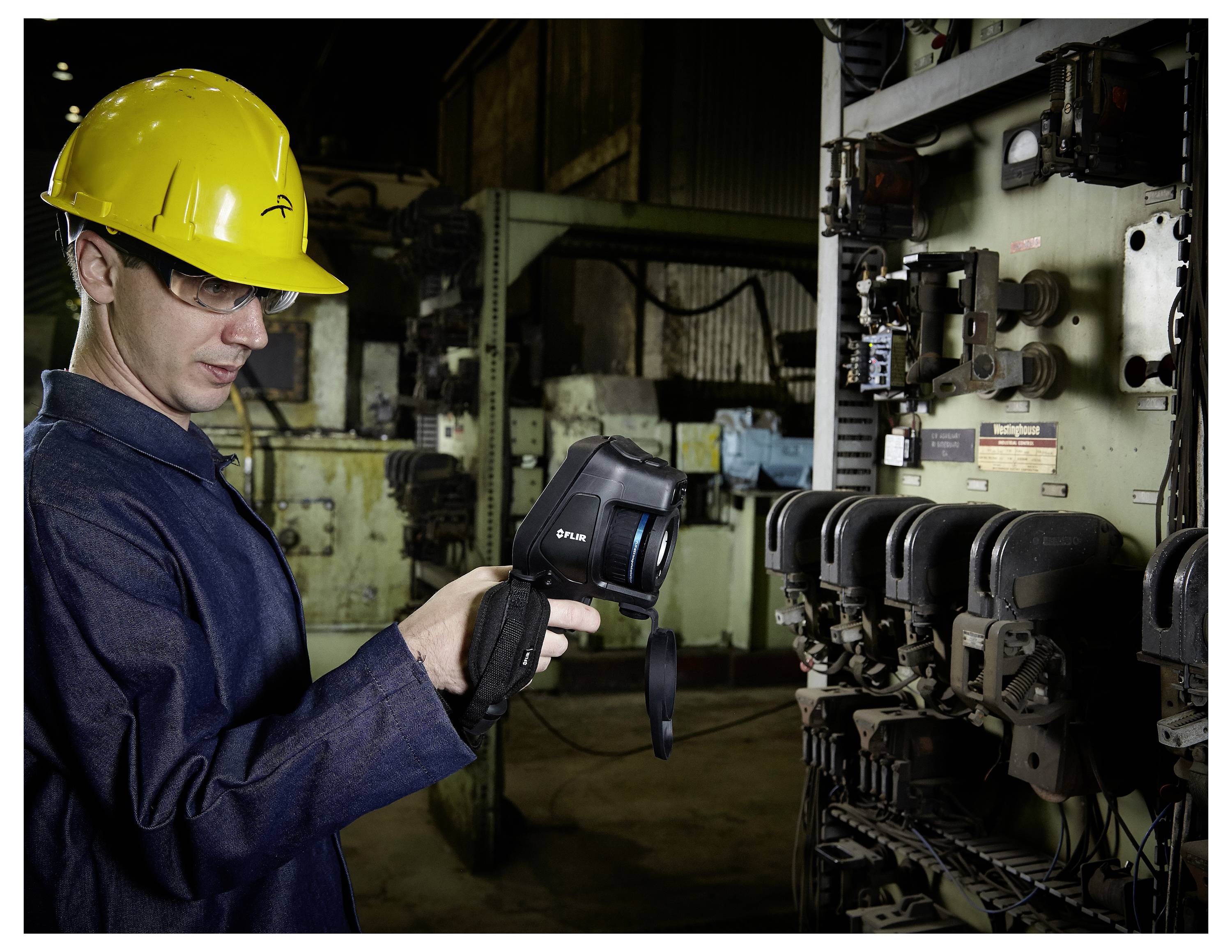

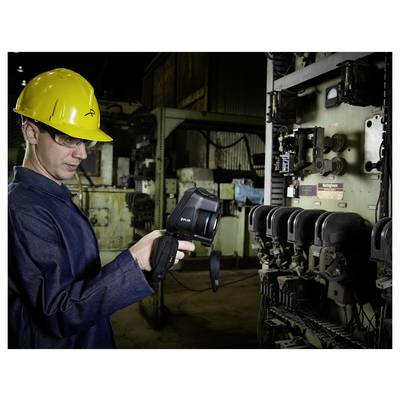

A worker in safety gear uses a handheld thermal imaging camera to inspect industrial machinery in a factory setting.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 10,959.00 / piece)

€ 10,959.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FLIR E76 with DFOV (24° - 42°) lens, 320x240, 20°C to +650°C.

30 Hz Thermal imaging camera
Temperature reading range -20 up to 650 °C
320 x 240 Pixel Bolometer matrix

Technical specifications

Integrated visual camera (5 MP)
Drop test (2 m)
Radiometric JPEG images
FLIR Ignite™ cloud services

Type: E76 Dual FOV 24° - 42°

Product type: IR camera

Bolometer array: 320 x 240 Pixel

Interfaces: USB A (USB 2.0)
DisplayPort
Wi-Fi
Bluetooth

Temperature reading range (max.): 650 °C

Colour schemes: 6

Temperature reading range (min.): -20 °C

Optics: 24° × 18° and 42° x 32° (DFOV)

Frame rate: 30 Hz

Display resolution: 640 x 480 Pixel

: IP54

Dim: (L x W x H) 27.8 x 11.6 x 11.3 cm

Memory units: 1

Digital zoom: 4 x

Display: 640 x 480 p

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Automatic
Manual

Geometric resolution (IFOV): 1.31 mrad

Weight: 1 kg

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Calibration service: AutoCal™ interchangeable lenses, automatic calibration

Temperature reading range: -20 up to 650 °C

Min. focusing distance: 0.15 m

Width: 11.6 cm

Height: 11.3 cm

Length: 27.8 cm

Connection: Bluetooth
USB 2.0

Features: MSX®
MeterLink™
Wi-Fi
Touchscreen

: Manufacturer's standards (no certificate)

Variants(All information include VAT, plus shipping costs)

Bolometer array

Display resolution

Interfaces

Temperature reading range (max.)

Temperature reading range (min.)

FLIR E76 Dual FOV 24° - 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi, Touchscreen

Item no:3533055

Available soon

Conrad Electronic

This article

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10,959.00^*

FLIR E76 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533035

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 24° + 14° & 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533037

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,229.00^*

FLIR E76 24° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Touchscreen, MSX®, MeterLink™, Wi-Fi

Item no:3533036

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10,729.00^*

FLIR E76 24° + 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533038

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° + 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533040

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11,855.00^*

FLIR E76 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, Touchscreen, MeterLink™, Wi-Fi

Item no:3533039

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB A (USB 2.0)

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E76 Dual FOV (24° - 42°) & 14° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz Wi-Fi, Touchscreen, MSX®, MeterLink™

Item no:3533056

Available soon

Conrad Electronic

320 x 240 Pixel

640 x 480 Pixel

USB

650 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13,855.00^*

FLIR E76 IR camera 0 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi

Item no:2305183

Available soon

Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

650 °C

0 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,485.00^*

FLIR E86 14° IR camera -20 up to 1500 °C 464 x 348 Pixel 30 Hz Wi-Fi, MSX®, Touchscreen, MeterLink™

Item no:3533041

Available soon

Conrad Electronic

464 x 348 Pixel

640 x 480 Pixel

DisplayPort

1500 °C

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12,419.00^*

Documents & Downloads

Datasheet

Datasheet 3533055 FLIR E76 Dual FOV 24° - 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi, Touchscreen

User & Safety Instructions

User & Safety Instructions 3533055 FLIR E76 Dual FOV 24° - 42° IR camera -20 up to 650 °C 320 x 240 Pixel 30 Hz MSX®, MeterLink™, Wi-Fi, Touchscreen

Description

Inspection and troubleshooting faster than ever before
The FLIR E76 offers full coverage of close and remote targets through a range of lens options. The E76 is a further development of the FLIR E54 and offers a laser-assisted auto focus and three measurement ranges. The infrared resolution of 320 × 240 pixels delivers sharp, colorful pictures, which offer even more detail and perspective with the help of the patented FLIR MSX® technology. With the integrated FLIR inspection route software, you can travel along pre-defined routes so that you can proceed with planning even at larger locations or when reviewing several areas. FLIR Ignite enables the automatic uploading of E76 images directly from the camera to the cloud for easy and safe storage and sharing.

One lens, two fields of view
Pair your Exx Series camera with a FLIR FlexView™ Dual Field of View lens so you can easily switch from wide angle to telescan at the touch of a button.

Improved contrast for faster diagnosis
Use FLIR 1-touch level/span for more image contrast and you can detect faults in electronics or mechanics more quickly.

Streamlined reporting
With the integrated FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in microphone for recording voice comments and reporting functions, the E76 makes it easier, faster and more efficient to work. (*Optional add-on software)

This text is machine translated.

Features

IR resolution 320 x 240 pixels
Accuracy ±2 °C (±3.6 °F) or ±2% of the measured values
5 MP digital camera with integrated LED photo/video lamp
Storage media: Removable SD-card
Frame rate: 30 Hz
Picture-in-picture: Adjustable size and position
Focal length: 42°: 10 mm (0.39 inches); 24°: 17 mm (0.67 inches)
Detector type and grid: Uncooled microbolometer, 12 µm
5 MP digital camera with integrated LED photo/video lamp
Digital zoom 1 to 8 times continuously
Colour palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, lava
Focus: Continuous laser distance meter (LDM), one-point laser distance meter (LDM), one-point contrast, manual
Minimum Focus Distance: 42°: 0.25 m (0.82 ft) 24°: 0.5 m (1.64 ft)
Minimum focus distance with MSX: 42°: 0.65 m (1.98 ft); 24°: 0.5 m (1.64 ft)
Non-radiometric IR video streaming: H.264 or MPEG-4 via WLAN MJPEG via UVC or WLAN
Lens recognition: Automatic
Radiometric IR video recording: Real-time radiometric recording (.CSQ)
Radiometric IR video streaming: Yes, via UVC
Spatial resolution (IFOV): 42°: 1.2 mrad/Pixel; 24: 0.67 mrad/Pixel
Field of view 42° × 32°, 24° × 18°
Spectral range: 7,5-14 µm
Viewfinder: No.
Thermal sensitivity / NETD: Less than 40 mK, 42° at 30 °C (86 °F); less than 40 mK, 24° at 30 °C (86 °F)
Operating temperature range -15 to 50 °C (5 to 122 °F)
Storage temperature range -40 to 70 °C (-40 to 158 °F)

Scope of delivery

Infrared camera with lens
2 rechargeable batteries
Battery charger
Hard shell carrying case
Case Carrying Systems
Front lens cap
PSUs
Printed documents
SD memory card (8 GB)
Cable (USB 2.0 A to USB type C, USB type C to HDMI, USB type C to USB type C)
License card: FLIR thermal studio starter
